2. Adjust the high speed stop
(Figure 5, (6)) or (Figure 6, (6)),
position first and then adjust the low
speed stop (Figure 5, (4)) or
(Figure 6, (4)), with the adjustment
screw on the remote control lever
(Figure 5, (5)) or (Figure 6, (5)).

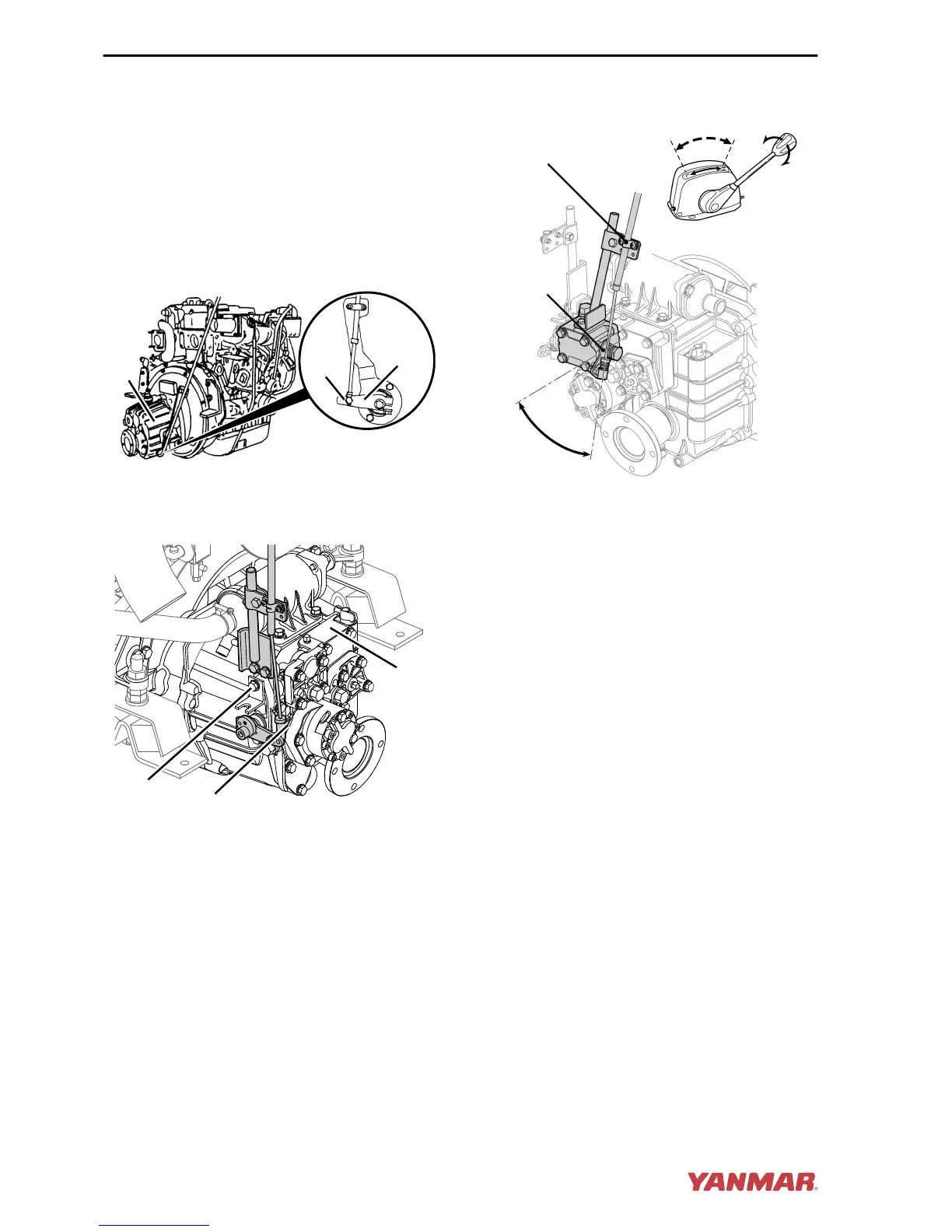

Adjusting Clutch Remote Control Cable
3JH4E / 4JH4AE
0004562
(1)
(3)
(2)
Figure 7
4JH4-TE / 4JH4-HTE
0004563
(1)
(2)
(3)
Figure 8
1. Ensure that the remote control lever
(Figure 7, (2)) (Figure 8, (2)) moves
to the correct position when the remote
control handle is in NEUTRAL,
FORWARD, and REVERSE positions.
Use the NEUTRAL position as the
standard for adjustment.
2. To adjust, loosen and retighten the
cable fitting (Figure 7, (1))
(Figure 8, (1)).
Adjusting Trolling Remote Control
Handle - If Equipped
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
0004498
Figure 9
1 – Cable Fitting
2 – Trolling Lever
3 – Low Speed (Trolling)
4 – High Speed
5 – Loosen
6 – Tighten
7 – Normal Operation (High Speed)
8 – Trolling (Low Speed)
Note: KMH4A marine gear shown.
1. Ensure that the trolling lever
(Figure 9, (2)) is in the high speed
(Figure 9, (4)) position when the
trolling remote control handle is in HIGH
speed position (Figure 9, (7)).
2. Ensure that the trolling lever is in the low
speed (Figure 9, (3)) position when the
trolling remote control handle is in LOW
speed position (Figure 9, (8)).
3. To adjust, loosen the adjustment screw
of the cable fitting (Figure 9, (1)) and
adjust the position of the cable.
PERIODIC MAINTENANCE
