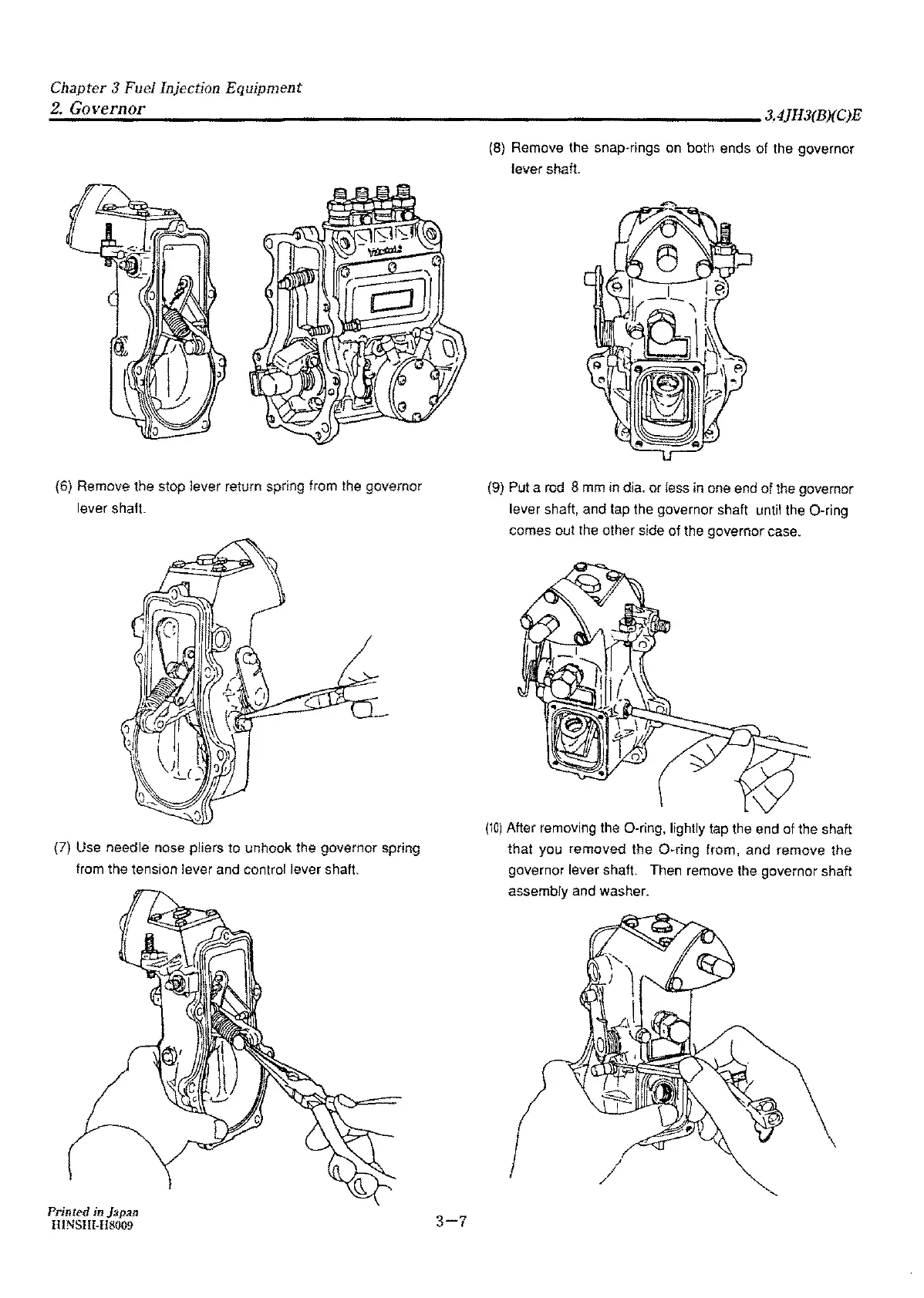

Chapter 3 Fuel Injection Equipment
,;;;.2·;...G.;..o.;;..v,;..;e;.;;;r
....
n ...
or;;.__
___________________________
J.4]1-I3(B)(C)E
(6) Remove the stop lever return spring from the governor
lever shaft.
(7} Use needle nose pliers
to unhook the governor spring
from the tension lever and control lever shaft.
Printed in japan
H1NSHI-H8009
3-7
(8)
Remove the snap•rings
on
both ends of the governor
lever shaft.
(9) Put a rod S
mm
in
dia. or less in one end of the governor
lever shaft, and tap the governor shaft until the O-ring
comes out the other side of the governor case.
(10)
After removing the O-ring, lightly tap the end of the shaft
that you removed the O-ring tram, and remove the
governor lever shaft. Then remove the governor shaft
assembly and
washer_
