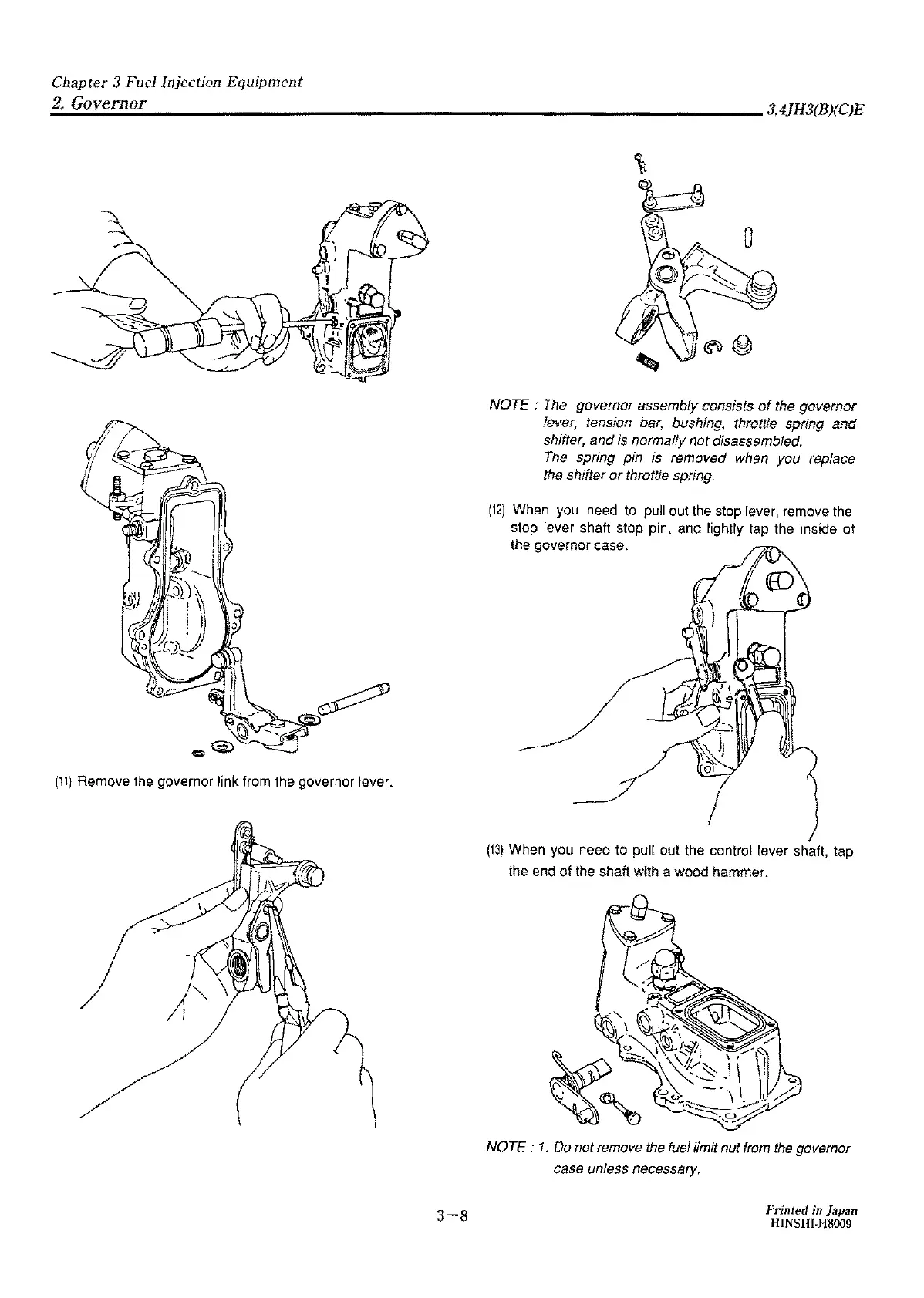

Chapter 3 Fuel Injection Equipment
=2~.~G~o~ve~.r~n~o~r-----------------------------~4JH3(BXC)E
(11)
Remove the governor link from the governor lever.
3-8
NOTE:
The governor assembly consists
of
the governor
fever, tension bar, bushing, throttle spring
and
shifter,
and
is normally not disassembled.
The
spring pin is removed when you replace
the shifter
or
throttle spring.
(12)
When you need to pull out the stop lever, remove the
stop lever shaft stop pin, and lightly tap the inside of
the governor case.
(131
When you need to pull out the control fever shaft, tap
the end of the shaft with a wood hammer.
NOTE :
1.
Do
not remove the fuel limit nut
from
the
governor
case unless necessary.
Printed in Japan
HINSHI-H8009
