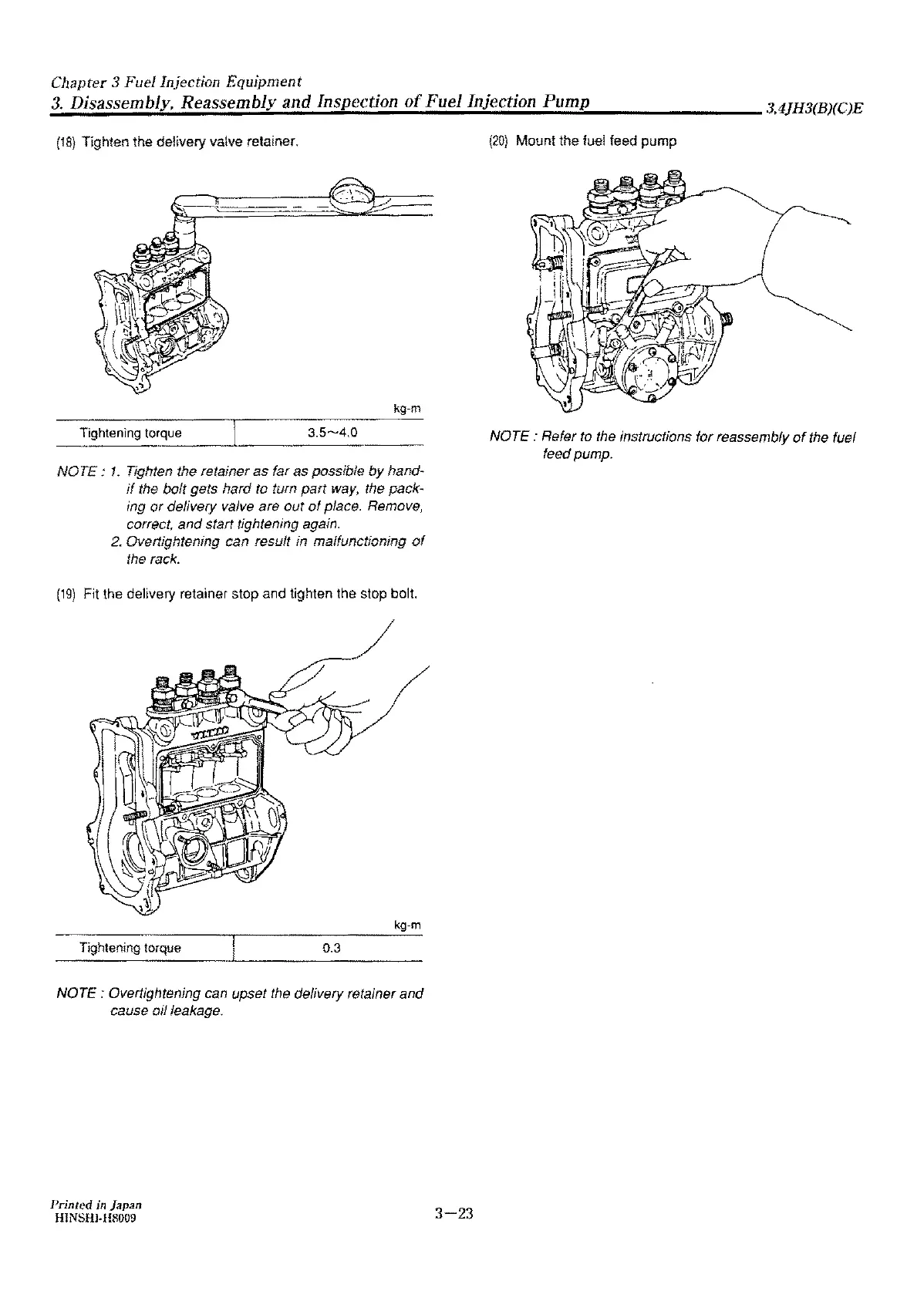

Chapter 3 Fuel Injection Equipment
,:;:,3·:.,;D;,;;.;:;,;;is;.::a;;:ss::..:e;;;.;m;,;,;b;;.;l;,:,;,Y.:..·
.;..R;;.;;e;.;;a.;;,;ss;;.;;e;,,;;m;,;;,;b;;.;l;;;..y..;a.n
...
d;...I_n_s.;.p_ec_·t_io_n_of_F_~_u_el_L_n_je_c_t_io_n_P_um
__
p
________
3,4JH3(B)(C)E
(18)
Tighten the delivery valve retainer.
kg-m
Tightening torque
3.5~4.0
NOTE.·
1.
Tighten the retainer
as
far
as
possible
by
hand-
if
the bolt
gets
hard to tum
part
way, the pack-
ing
or
delivery valve are
out
of
place. Remove,
correct,
and
start tightening again.
2.
Overtightening
can
result in malfuncfjoning
of
the rack.
(19)
Fit the delivery retainer stop and tighten the stop bolt.
kg-m
Tightening torque
0.3
NOTE
: Overtightening can upset the delivery retainer
and
cause oil leakage.
Printed
in
Japan
HINSHJ-1!8O09
3-23
{20)
Mount the fuel feed
pump
NOTE:
Refer to the instructions
for
reassembly
of
the fuel
feed pump.
