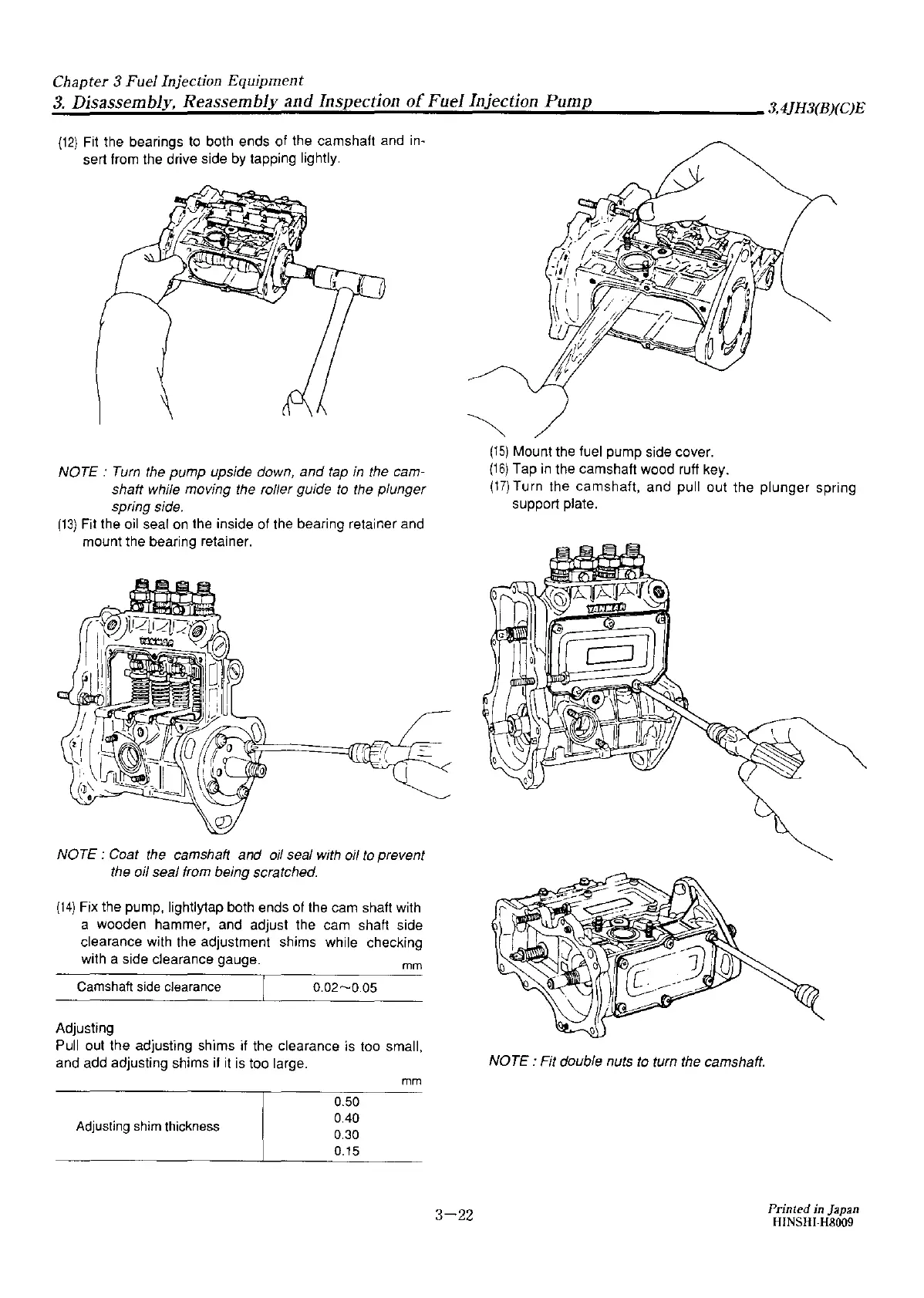

Chapter 3 Fuel Injection Equipment
.;;.3·;..D~is;..a;..s_se_m....;.b_ly;..,_R_e_a_s_s_em_b_ly
__
a_n_d_L_n_sp
___
ec_t_io_n_o_f_F_u_e_J_In_1_·e_c_ti_on_P_u_m
.......
P
________
3,4JH
3
(B)(C)E
(12)
Fit the bearings
to
both ends of the camshaft and
in-
sert from the drive side
by
tapping lightly.
NOTE:
Turn
the pump upside down,
and
tap
in
the cam-
shaft while moving the roller guide
to
the plunger
spring side.
(13)
Fit the
oil
seal
on
the inside
of
the
bearing retainer and
mount the bearing retainer.
NOTE:
Coat
the
camshaft and oil seal with oil
to
prevent
the
oil seal from being scratched.
(14)
Fix the pump, lightlytap both ends
of
the cam shaft with
a wooden hammer, and adjust the cam shaft side
clearance wlth
the
adjustment shims while checking
with a side clearance gauge.
mm
Camshaft
side
clearance
0.02~0.05
Adjusting
Pull out the adjusting
sh'1ms
if the clearance
is
too small,
and add adjusting shims
if it
is
too large.
Adjusting
shim
thickness
0.50
0.40
0.30
0.15
mm
3-22
(15)
Mount the fuel pump side cover.
(16)
Tap
in
the camshaft wood ruff key.
(17)
Turn the camshaft, and pull out the plunger spring
support plate.
NOTE:
Fit double nuts to turn
the
camshaft.
Prinled
in
]a.pan
HINSHI-H8009
