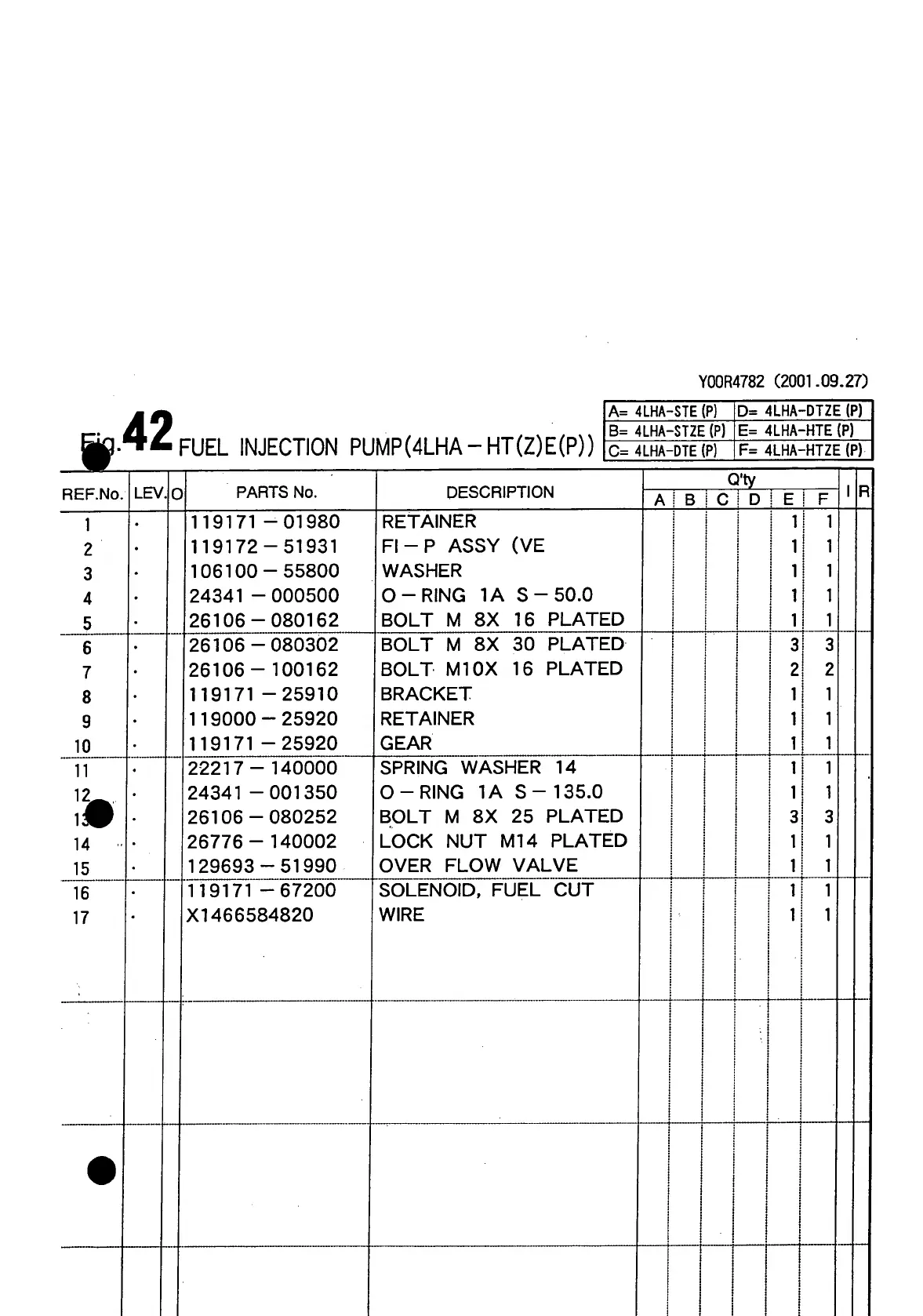

Yanmar 4LHA-DTP - Page 172

Y00R4782 (2001.09.27)
42
FUEL INJECTION PUMP(4LHA- HT(Z)E(P))
A= 4LHA-STE (P)
D= 4LHA-DTZE (P)
B= 4LHA-STZE (P)
E= 4LHA-HTE (P)
C= 4LHA-DTE (P)
F= 4LHA-HTZE (P)
REF.No.
LEV.O
1
2
3
4
5
PARTS No.
119171 -01980
119172-51931
106100-55800
24341 -000500
26106-080162
DESCRIPTION
RETAINER
Fl-P ASSY (VE
WASHER
O-RING IA S-50.0
BOLT M 8X 16 PLATED
ABC
Q'ty
D
6
7
8
9
10
26106-080302
26106- 100162
119171 -25910
119000-25920
119171 -25920
BOLT M 8X 30 PLATED
BOLT Ml OX 16 PLATED
BRACKET
RETAINER
GEAR
11
1
14
15
16
17
22217- 140000
24341 -001350
26106-080252
26776- 140002
129693-51990
SPRING WASHER 14
O-RING IA S- 135.0
BOLT M 8X 25 PLATED
LOCK NUT Ml 4 PLATED
OVER FLOW VALVE
119171 -67200
XI466584820
SOLENOID, FUEL CUT
WIRE
