Chapter
6
Cooling Water System
2.
Sea
Water Pump
2. Sea
Water
Pump
i 4LHA Series \
2-1
Sea
water
pump
construction

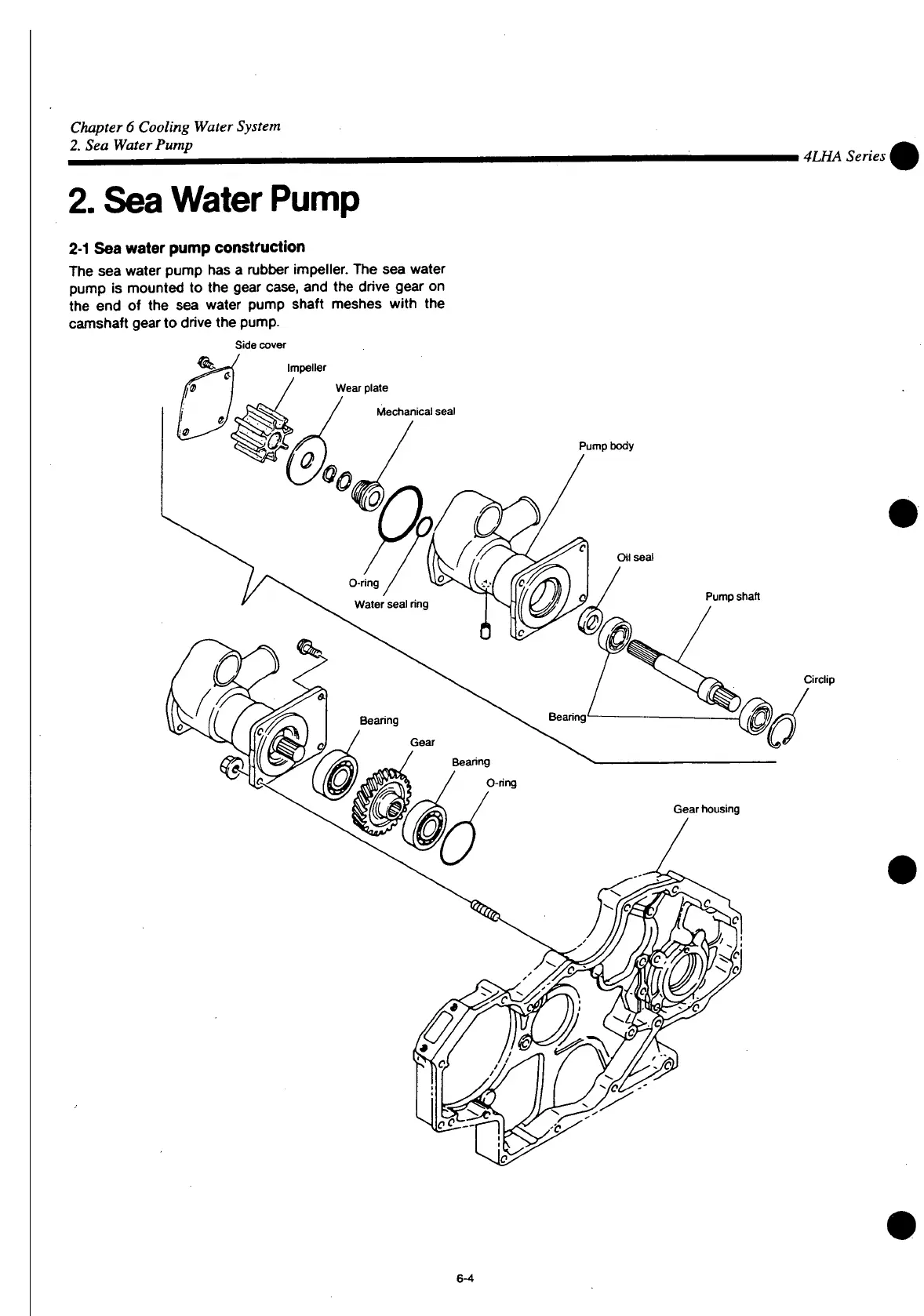

The
sea
water pump has a rubber impeller. The sea water
pump
is
mounted
to the
gear
case,
and
the
drive gear
on
the
end of the
sea water pump shaft
meshes
with
the
camshaft
gear
to drive the pump.
Pump
body
Pump
shaft
Circlip
6-4
