Yanmar 4LHA-DTP - Exterior Views

Chapter 1 General
1. Exterior Views
,4LHA Seri
1. Exterior Views

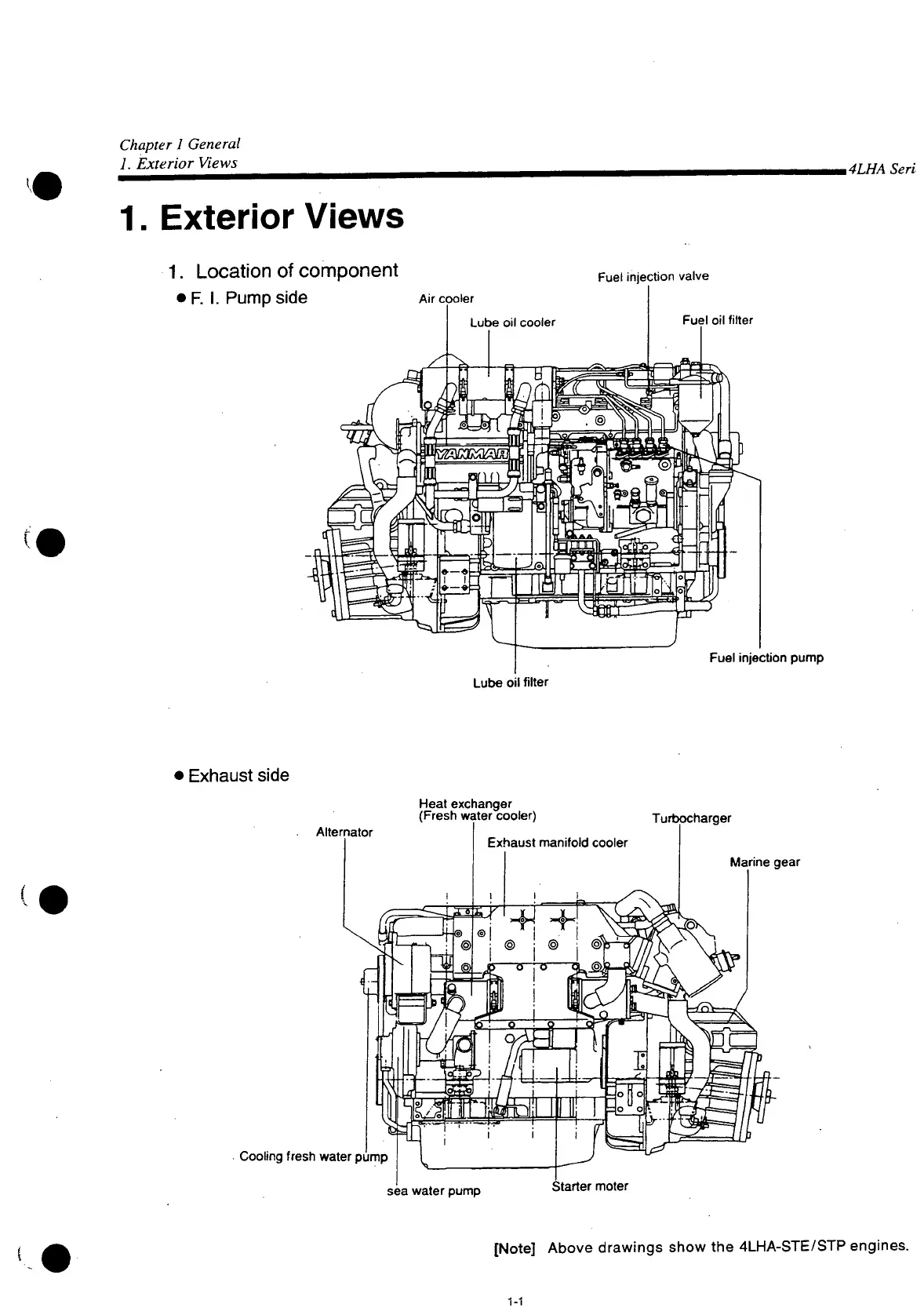

1. Location of component
• F. I. Pump Side Air cooler
Fuel injection valve
Fuel oil filter
Fuel injection pump
Lube oil filter
Exhaust side
Heat exchanger
(Fresh water cooler)
Alternator
Turbocharger
Marine gear
Cooling fresh water pump
sea water pump
Starter moter
[Note] Above drawings show the 4LHA-STE/STP engines.
