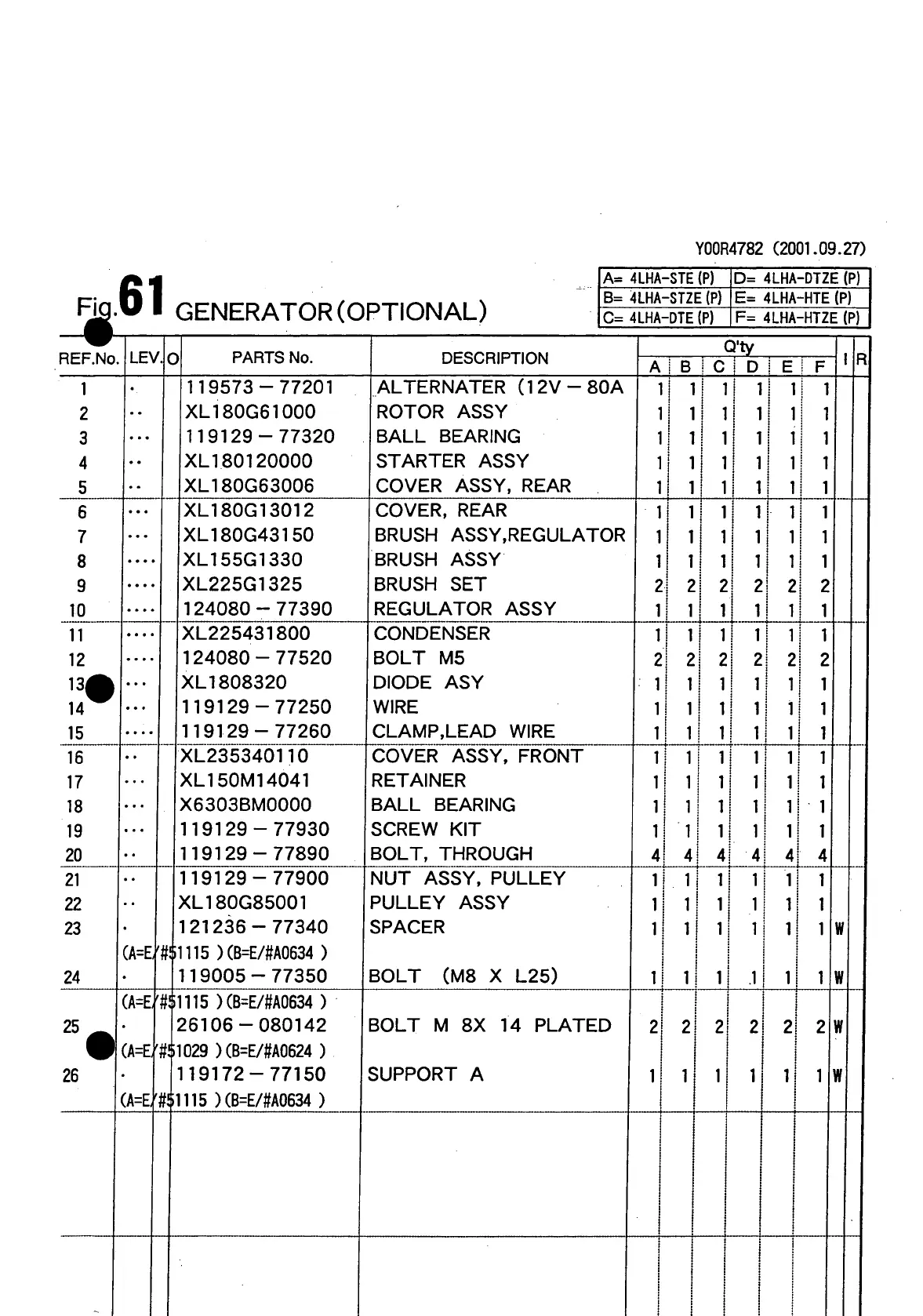

Yanmar 4LHA-DTP - Generator(Optional)

Y00R4782 (2001.09.27)
REF.No.
61
GENERATOR (OPTIONAL)
A= 4LHA-STE (P) D= 4LHA-DTZE (P)
B= 4LHA-STZE (P)
E= 4LHA-HTE (P)
C= 4LHA-DTE (P) F= 4LHA-HTZE (P)
LEV, PARTS No.
DESCRIPTION
B
Q'ty
DEF
1
2
3
4
5
119573- 77201
XL180G61000
119129-77320
XLI 80120000
XL180G63006
ALTERNATER (12V-80A
ROTOR ASSY
BALL BEARING
STARTER ASSY
COVER ASSY, REAR
6
7
8
9
10
XL180G13012
XL180G43150
XL155G1330
XL225G1325
124080-77390
COVER, REAR
BRUSH ASSY,REGULATOR
BRUSH ASSY
BRUSH SET
REGULATOR ASSY
11
12
13(
14
15
XL225431800
124080-77520
XL1808320
119129-77250
119129-77260
CONDENSER
BOLT M5
DIODE ASY
WIRE
CLAMP.LEAD WIRE
16
17
18
19
20
XL235340110
XL150M14041
X6303BM0000
119129-77930
119129-77890
COVER ASSY, FRONT
RETAINER
BALL BEARING
SCREW KIT
BOLT, THROUGH
21
22
23
24
(A=E,
119129-77900
XL180G85001
121236-77340
#$1115 )(B=E/#A0634 )
119005-77350
NUT ASSY, PULLEY
PULLEY ASSY
SPACER
BOLT (M8 X L25)
W
1 1
25
26
(A=E|#$1115 )(B=E/#A0634 )
26106-080142
(A=Ei#$1029 )(B=E/#A0624 )
119172-77150
(A=Ei#$1115 )(B=E/#A0634 )
BOLT M 8X 14 PLATED
SUPPORT A
