Chapter 4 Intake and Exhaust System

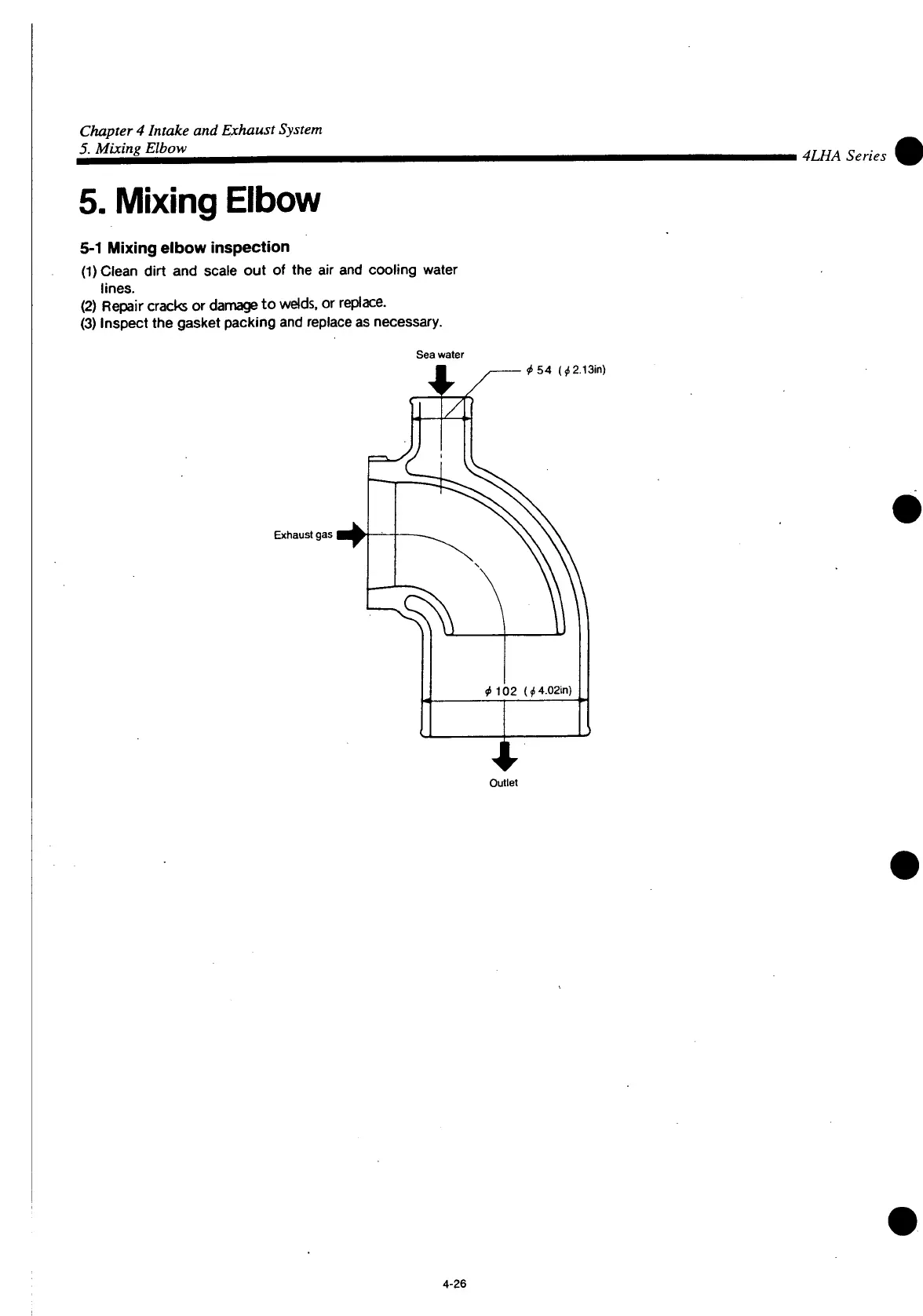

5. Mixing Elbow
4LHA Series
5. Mixing Elbow
5-1 Mixing elbow inspection
(1) Clean dirt and scale out of the air and cooling water
lines.
(2) Repair cracks or damage to welds, or replace.
(3) Inspect the gasket packing and replace as necessary.
Sea water
Exhaust gas |
^54 (#2.13in)
Outlet
4-26
