Yanmar 4LHA-DTP User Manual

Y00R4782 (2001.09.27)
*
64

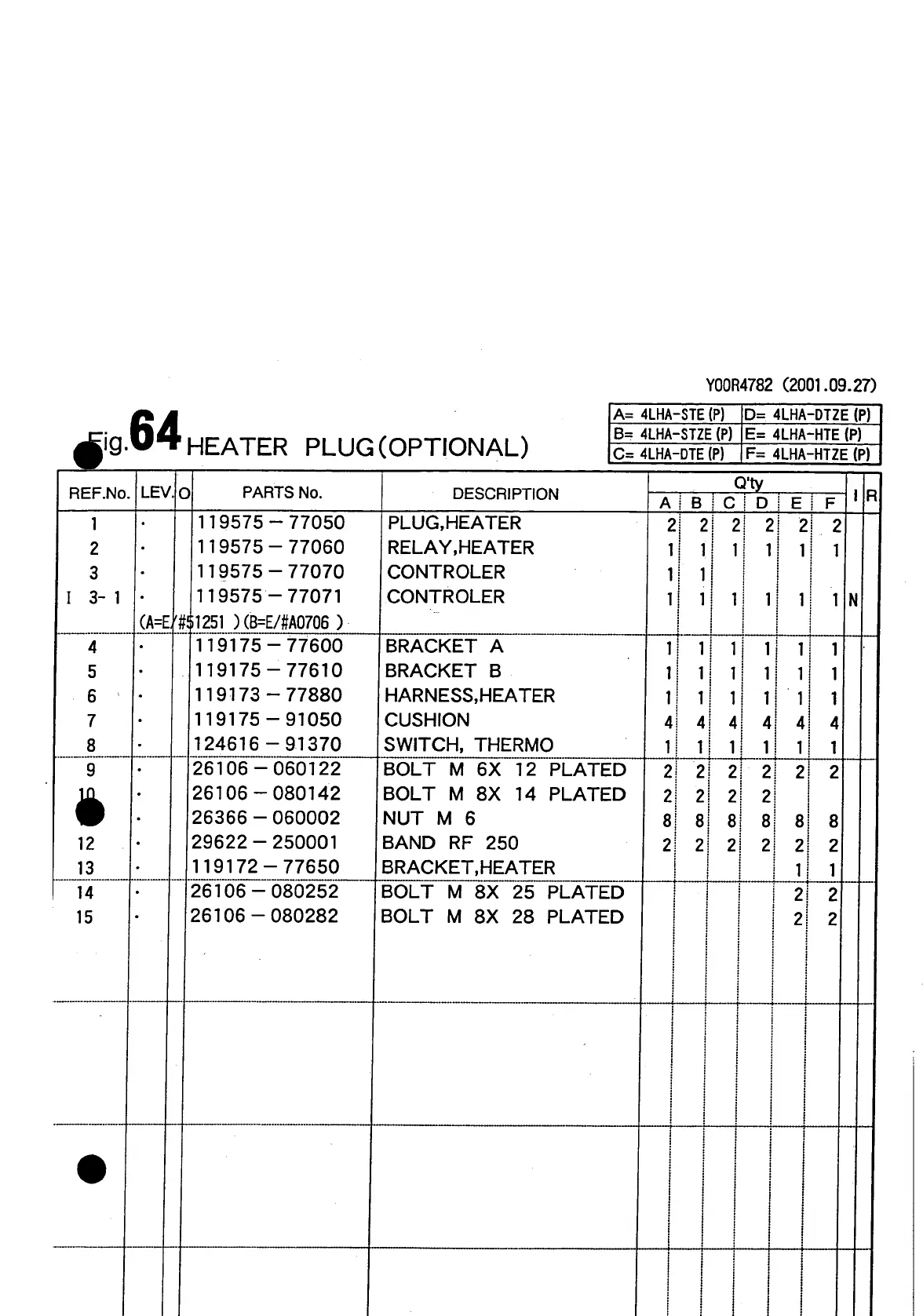

ig.Vt HEATER PLUG (OPTIONAL)
LEV.O
A= 4LHA-STE (P)
D= 4LHA-DTZE (P)
B= 4LHA-STZE (P)
E= 4LHA-HTE (P)
C= 4LHA-DTE (P)
F= 4LHA-HTZE (P)
REF.No.
PARTS No.
DESCRIPTION
A i B C
Q'ty
1
2
3
I 3- 1
(A=E
119575-77050
119575-77060
119575-77070
119575-77071
#$1251 )(B=E/#A0706 )
PLUG.HEATER
RELAY.HEATER
CONTROLER
CONTROLER
4
5
6
7
8
119175
119175
119173
119175
124616
- 77600
-77610
- 77880
-91050
-91370
BRACKET A
BRACKET B
HARNESS.HEATER
CUSHION
SWITCH, THERMO
i
12
13
26106-
26106-
26366-
29622-
119172
060122
080142
060002
250001
- 77650
BOLT M 6X 12 PLATED
BOLT M 8X 14 PLATED
NUT M 6
BAND RF 250
BRACKET, HEATER
14
15
26106-
26106-
080252
080282
BOLT M 8X 25 PLATED
BOLT M 8X 28 PLATED
