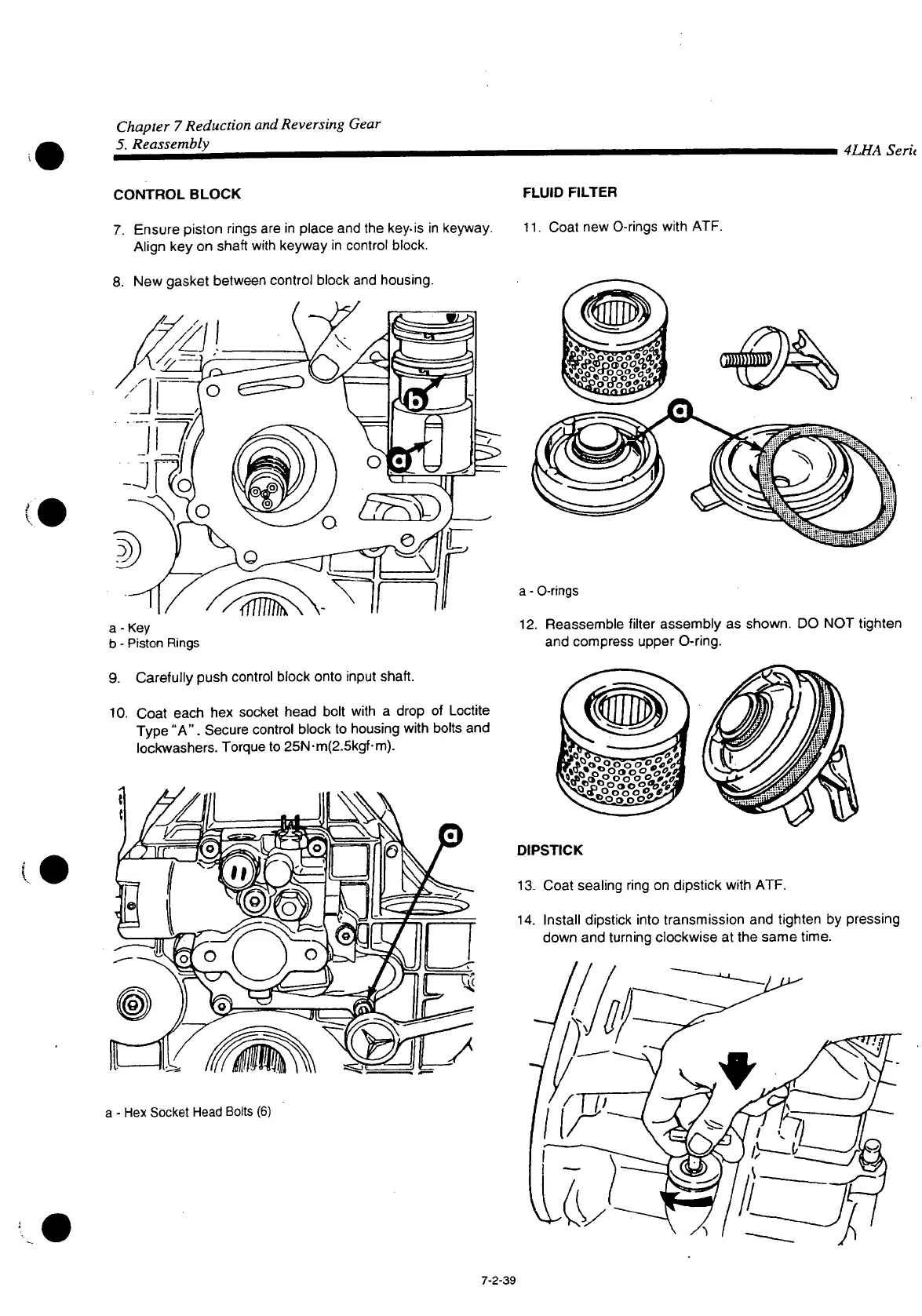

Chapter 7 Reduction and Reversing Gear
5. Reassembly
4LHA Seru
CONTROL BLOCK
7. Ensure piston rings are in place and the key-is in keyway.
Align
key on shaft
with
keyway in control block.
8. New gasket between control block and housing.
a
-
Key
b -
Piston
Rings
9.
Carefully push control block onto input shaft.
10.
Coat each hex socket head bolt
with
a drop of Loctite
Type
"A".
Secure control block to housing
with
bolts and
lockwashers.
Torque to 25N-im(2.5kgf-m).
a
- Hex Socket
Head
Bolts (6)
FLUID
FILTER
11.
Coat new O-rings
with
ATF.
a
- O-rings
12.
Reassemble
filter
assembly as shown. DO NOT tighten
and
compress upper O-ring.
DIPSTICK
13.
Coat sealing ring on dipstick
with
ATF.
14.
Install dipstick into transmission and tighten by pressing
down and turning clockwise at the same time.
7-2-39
