Chapter
1
General

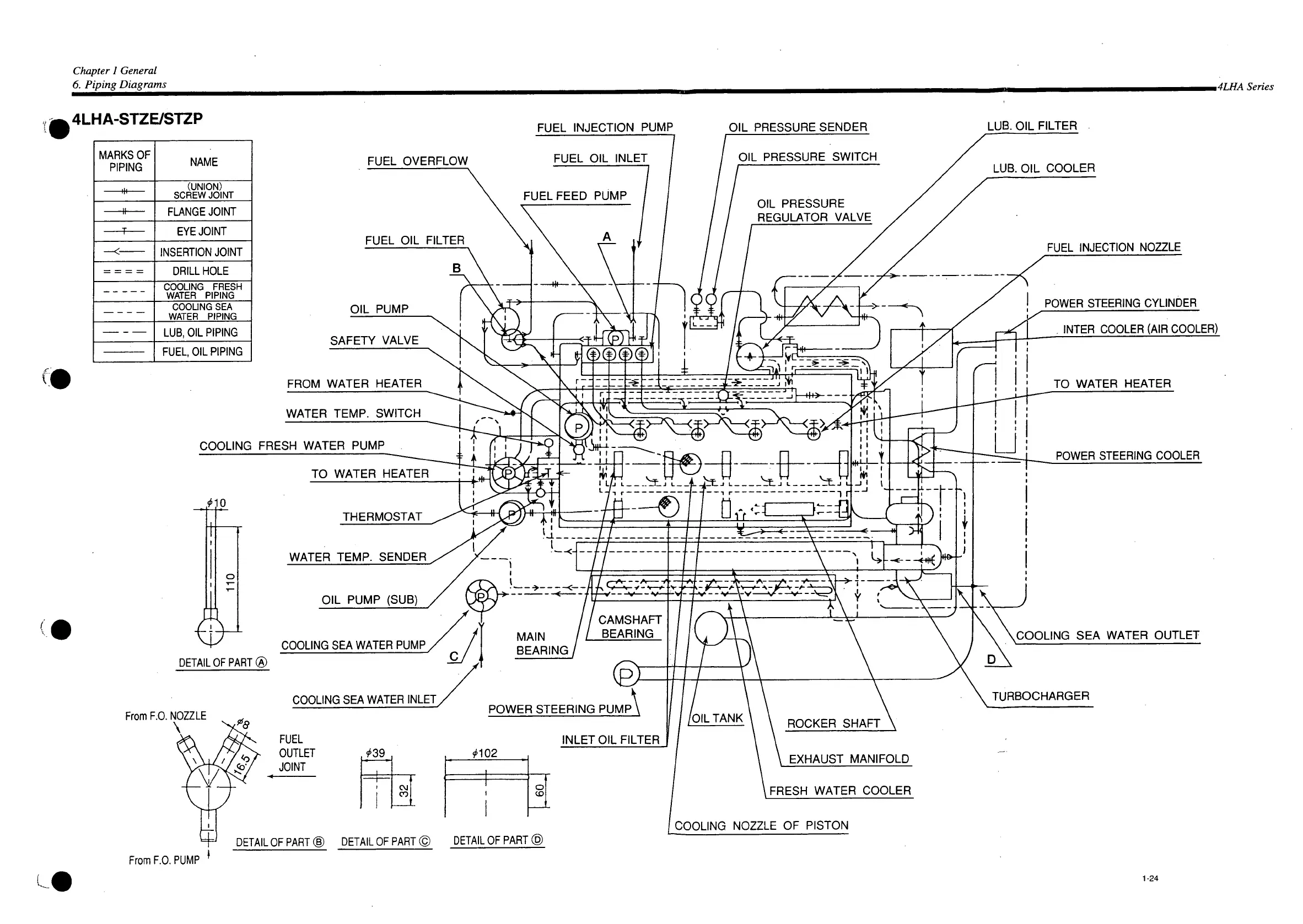

6. Piping Diagrams
,4LHA Series
4LHA-STZE/STZP
FUEL
INJECTION
PUMP
OIL PRESSURE SENDER
LUB.
OIL
FILTER
From
F.O. NOZZLE
\
FRESH
WATER COOLER
COOLING NOZZLE OF
PISTON
DETAIL
OF
PART®
DETAIL
OF
PART©
DETAIL
OF
PART
From
F.O. PUMP
1-24
