Chapter 1 General

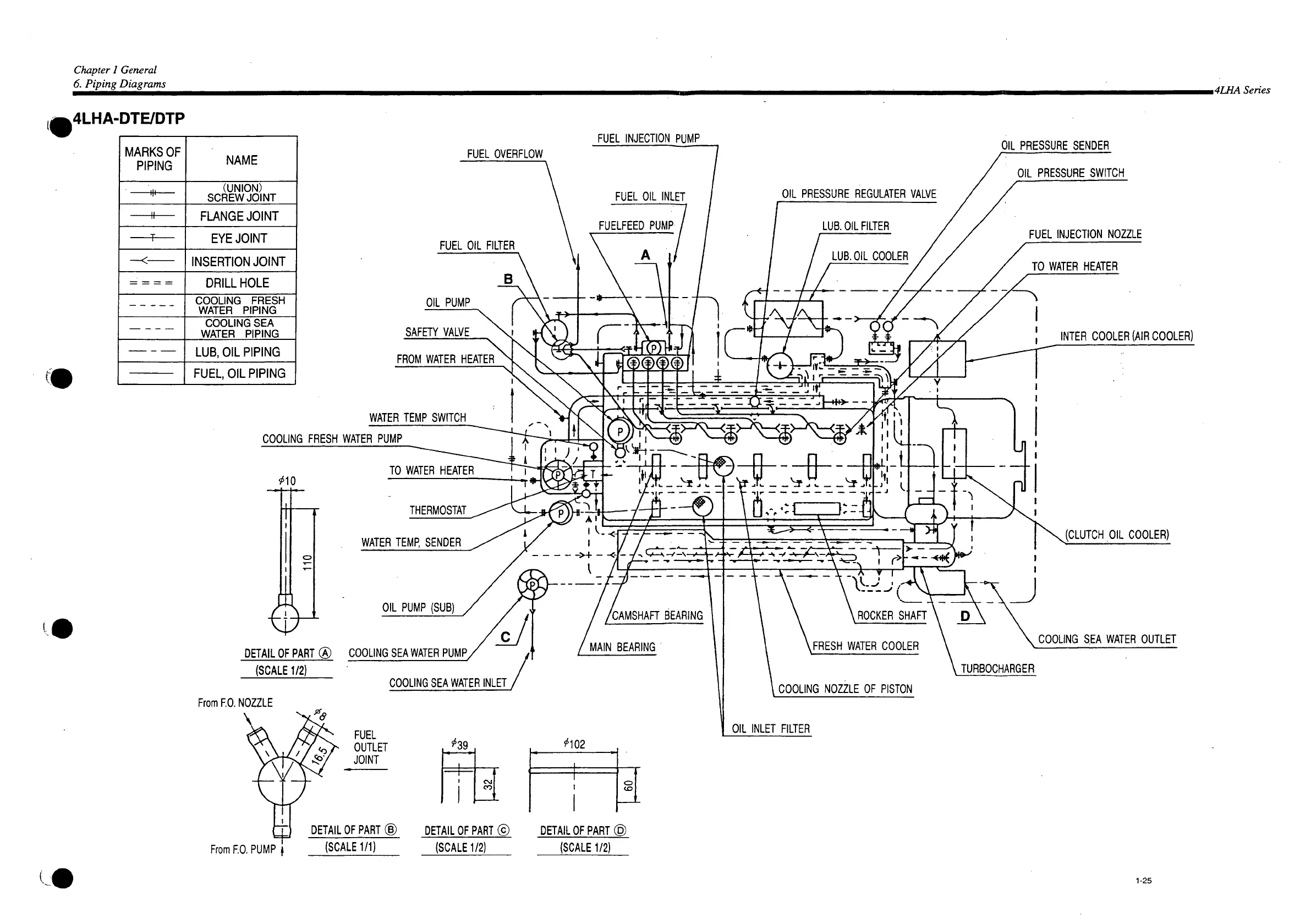

6. Piping Diagrams
,4LHA Series
,4LHA-DTE/DTP
MARKS OF
PIPING
FUEL INJECTION PUMP
OIL PRESSURE SENDER
NAME
(UNION)
SCREW JOINT
FLANGE JOINT
EYE JOINT
INSERTION JOINT
DRILL HOLE
COOLING FRESH
WATER PIPING
COOLING SEA
WATER PIPING
LUB, OIL PIPING
FUEL, OIL PIPING
DETAIL OF PART (A) COOLING SEAWATER PUMP,
(SCALE 1/2)
COOLING SEA WATER INLET
From F.O. NOZZLE
\
FUEL
OUTLET
JOINT
^39
9*102
COOLING NOZZLE OF PISTON
TURBOCHARGER
OIL INLET FILTER
From F.O. PUMP \
DETAIL OF PART ©
(SCALE 1/1)
DETAIL OF PART ©
(SCALE 1/2)
DETAIL OF PART®
(SCALE 1/2)
1-25
