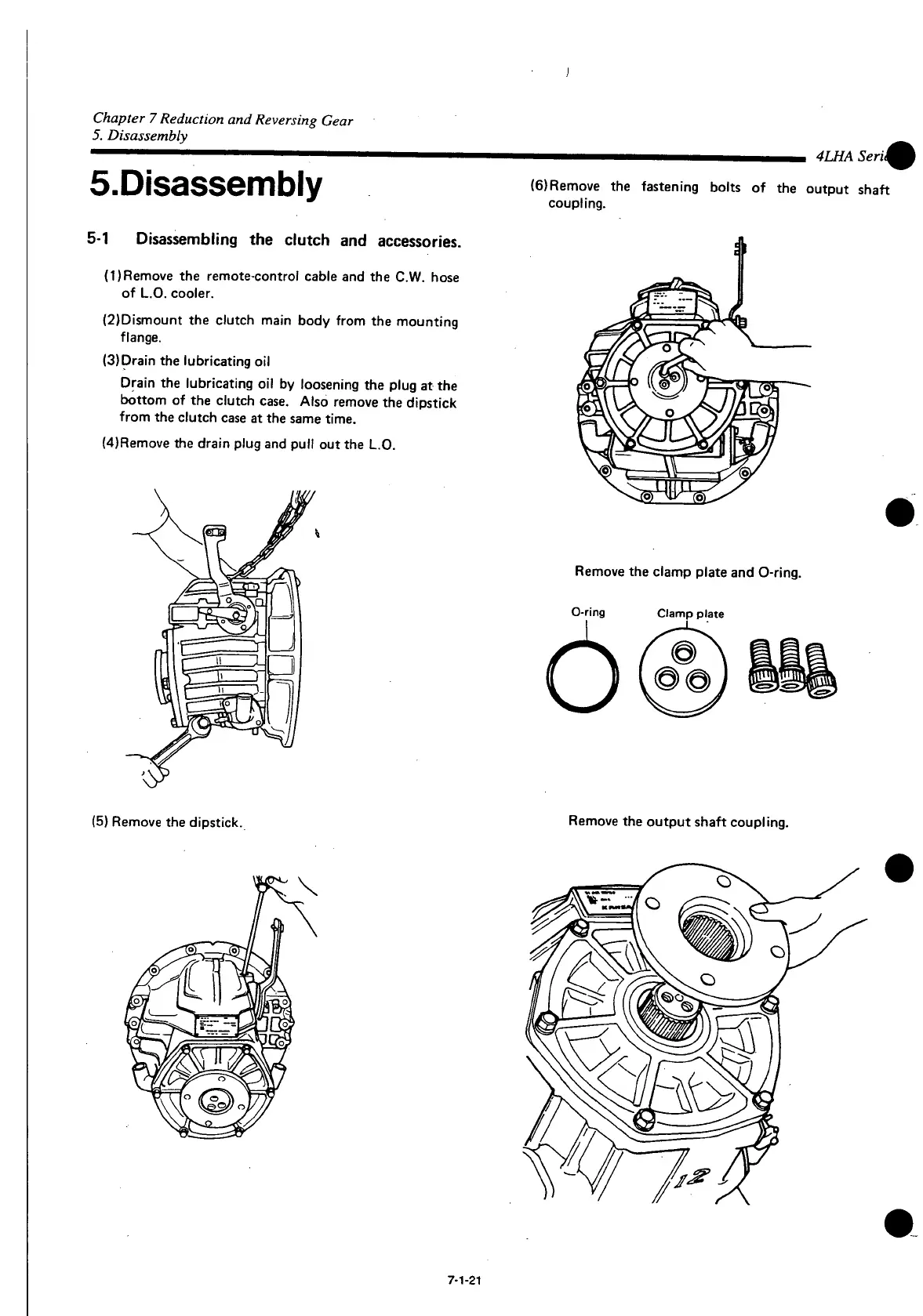

Yanmar 4LHA-HTP User Manual

Chapter 7 Reduction and Reversing Gear
5. Disassembly
4LHA Serik
5.Disassembly
(6) Remove the fastening bolts of the output shaft
coupling.
5-1 Disassembling the clutch and accessories.
(1) Remove the remote-control cable and the C.W. hose
of L.O. cooler.
{2)Dismount the clutch main body from the mounting
flange.
(3) Drain the lubricating oil
Drain the lubricating oil by loosening the plug at the
bottom of the clutch case. Also remove the dipstick
from the clutch case at the same time.
(4) Remove the drain plug and pull out the L.O.
Remove the clamp plate and O-ring.
O-ring
Clamp plate
(5) Remove the dipstick.
Remove the output shaft coupling.
7-1-21
