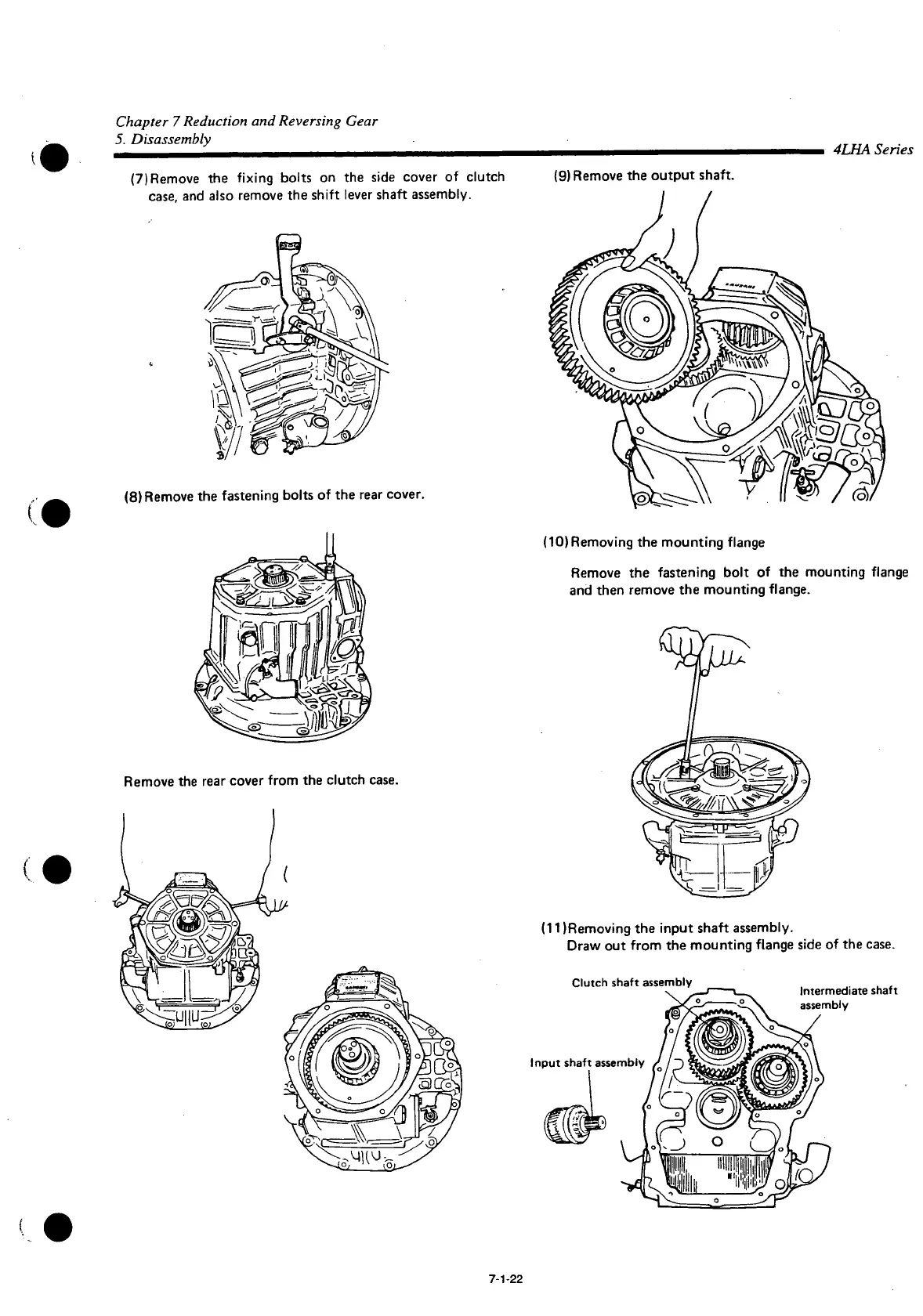

Chapter 7 Reduction and Reversing Gear
5. Disassembly
4LHA Series
(7)
Remove
the fixing bolts on the side cover of clutch
case,
and also remove the shift lever shaft assembly.
(9)
Remove
the
output
shaft.
(8)
Remove
the fastening bolts of the rear cover.
Remove
the rear cover from the clutch
case.
(lO)Removing
the mounting flange
Remove
the fastening bolt of the mounting flange
and
then remove the mounting flange.
(11 )Removing the input shaft assembly.
Draw
out from the mounting flange side of the
case.
Clutch
shaft assembly
Input
shaft
assembly
Intermediate shaft
assembly
7-1-22
