Chapter 7 Reduction and Reversing Gear
5. Disassembly
4LHA Series

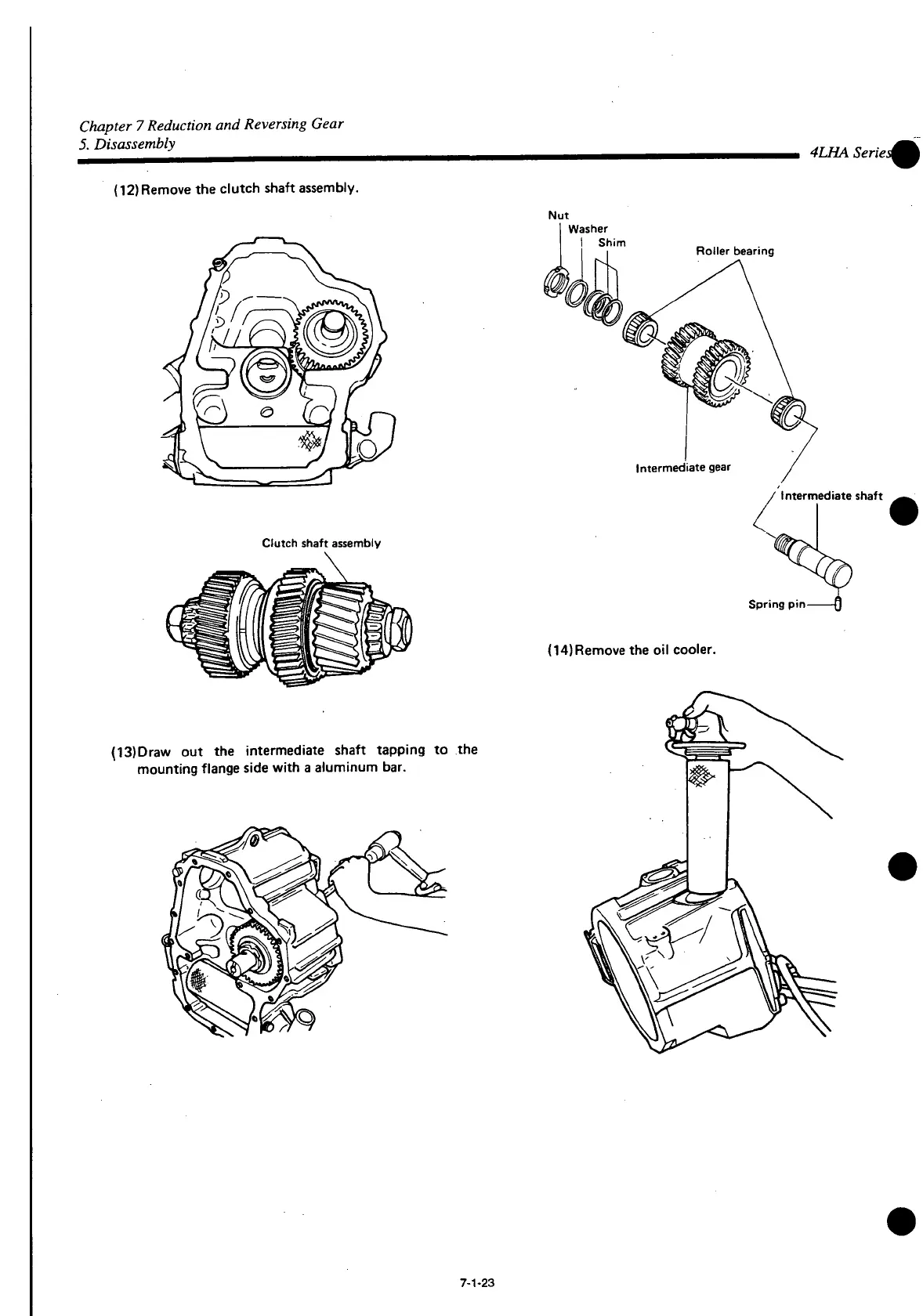

(12) Remove the clutch shaft assembly.
Clutch shaft assembly
(13)Draw out the intermediate shaft tapping to the
mounting flange side with a aluminum bar.
Nut
Washer
I Shim
Roller bearing
Intermediate gear
Intermediate shaft
Spring pin-
(14) Remove the oil cooler.
