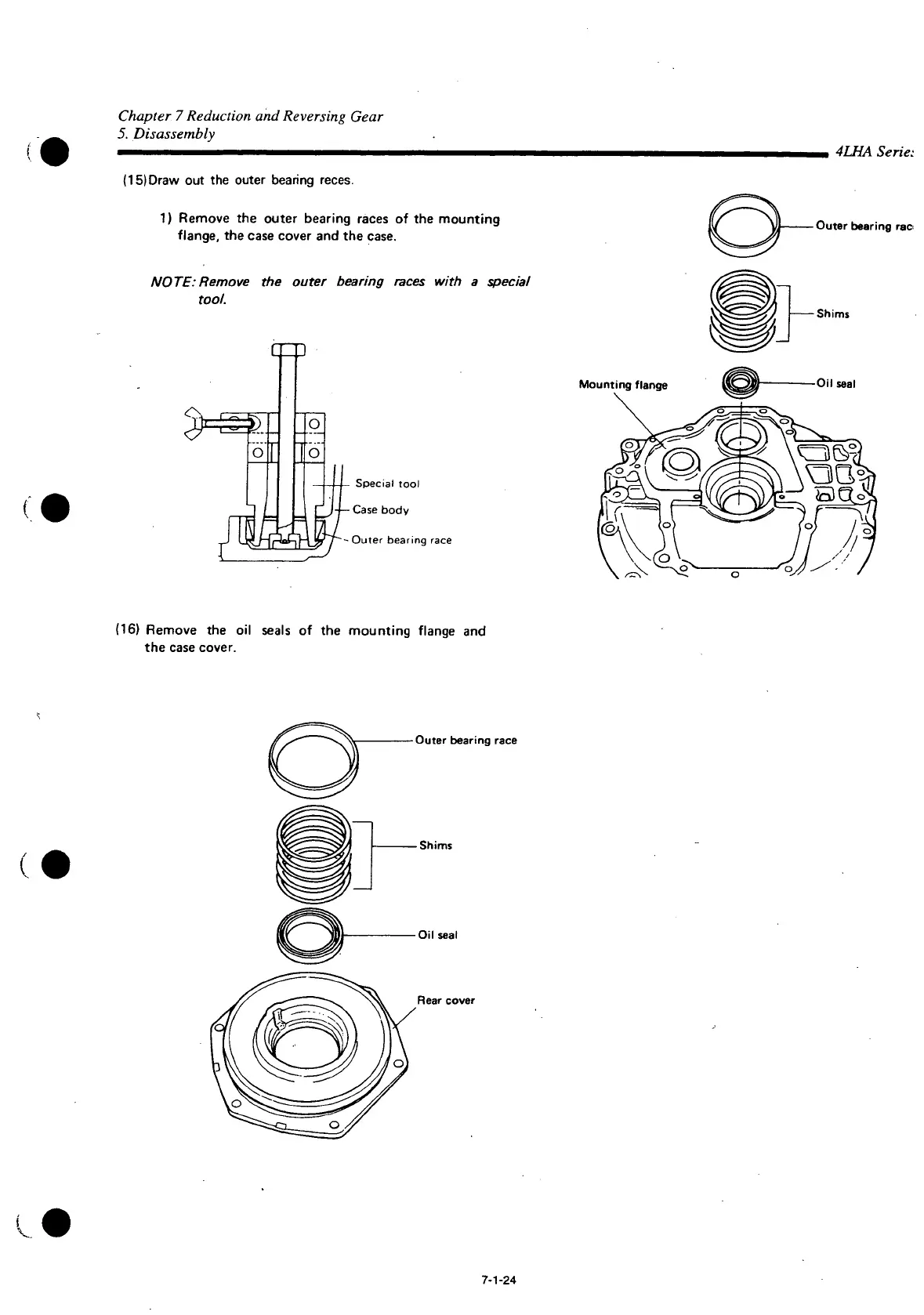

Chapter 7 Reduction and Reversing Gear
5. Disassembly
(15)Draw out the outer bearing reces.
1) Remove the outer bearing races of the mounting
flange, the case cover and the case.
NOTE:Remove the outer bearing races with a special
tool.
Special tool
- — Case body
- Outer bearing race
Mounting flange
4LHA Serie:
Outer bearing rac
(16) Remove the oil seals of the mounting flange and
the case cover.
(
Outer bearing race
Shims
Oil seal
Rear cover
7-1-24
