Data Communications Failure
The data communications failure popup icon flashes if the display does not detect data. The warning
disappears and normal operation resumes once data is detected.
Note
Incorrectly configuring the Engine Source address will result in no data available for display.
Data Not Available
Gauges and the Db Viewer will display if the desired data is not available. The display value returns to
normal when parameter data is received.

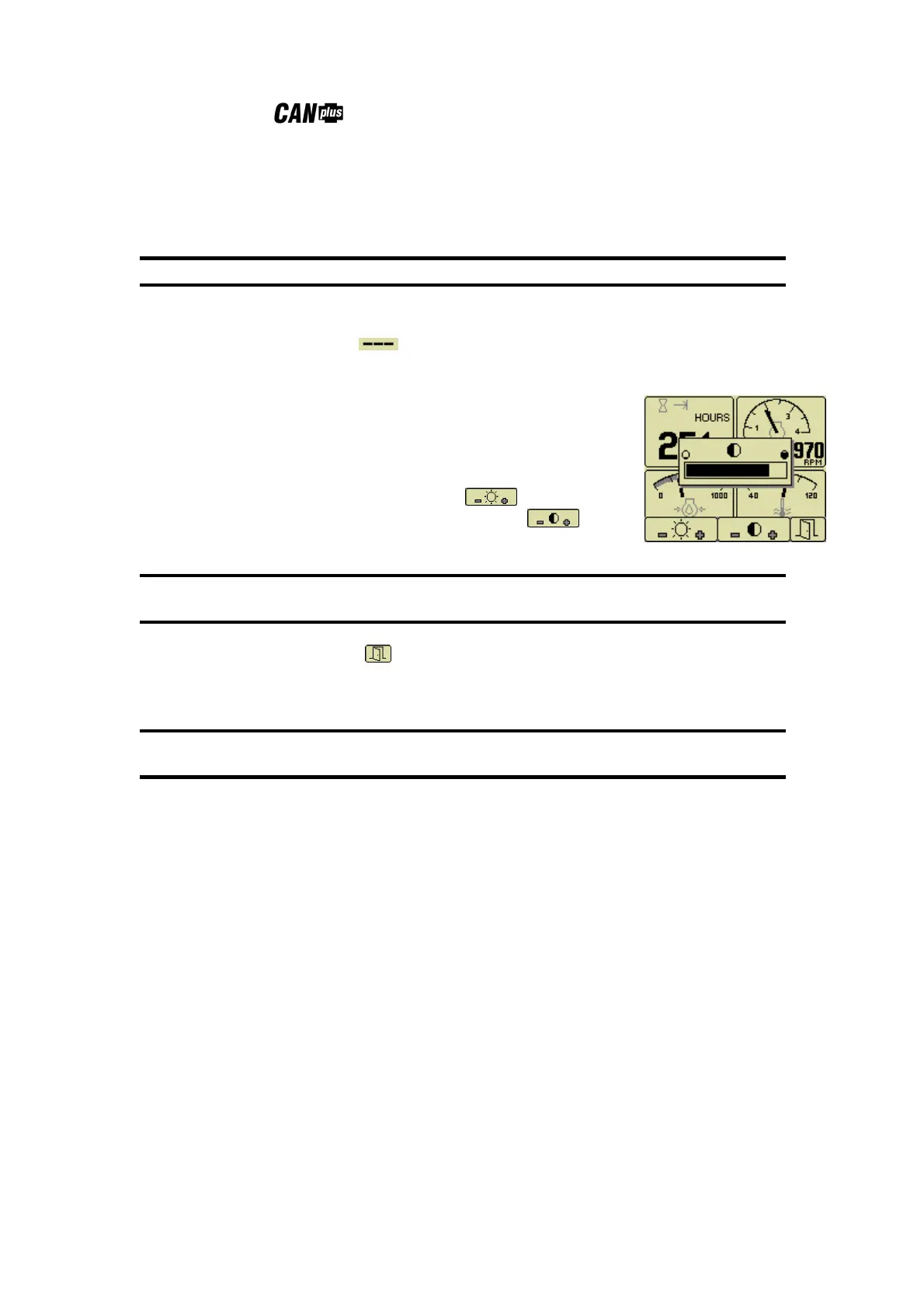

Adjusting Lighting and Contrast
Pressing button 5 (the right-hand button) when there is no menu bar opens the
lighting and contrast menu bar. The display has a number of back-lighting
levels allowing the display to be read in the dark. The level is adjusted by
pressing buttons 1 (decrease) or button 2 to (increase) illumination.
Contrast is adjusted in the same manner using buttons 3 and 4 .
Note
The display adjusts the contrast with ambient temperature.
Manual contrast adjustments are only necessary with extreme climate change.
The menu is exited by pressing button 5 . The lighting and contrast settings are retained after the unit is
powered off.
Note
If the contrast has been adjusted poorly, the factory setting is restored by pressing
buttons 1 thru 4 simultaneously. This action does not change other user-configured settings.
