Yanmar EF494T - Using 3-Point Link

EF494T OM
45

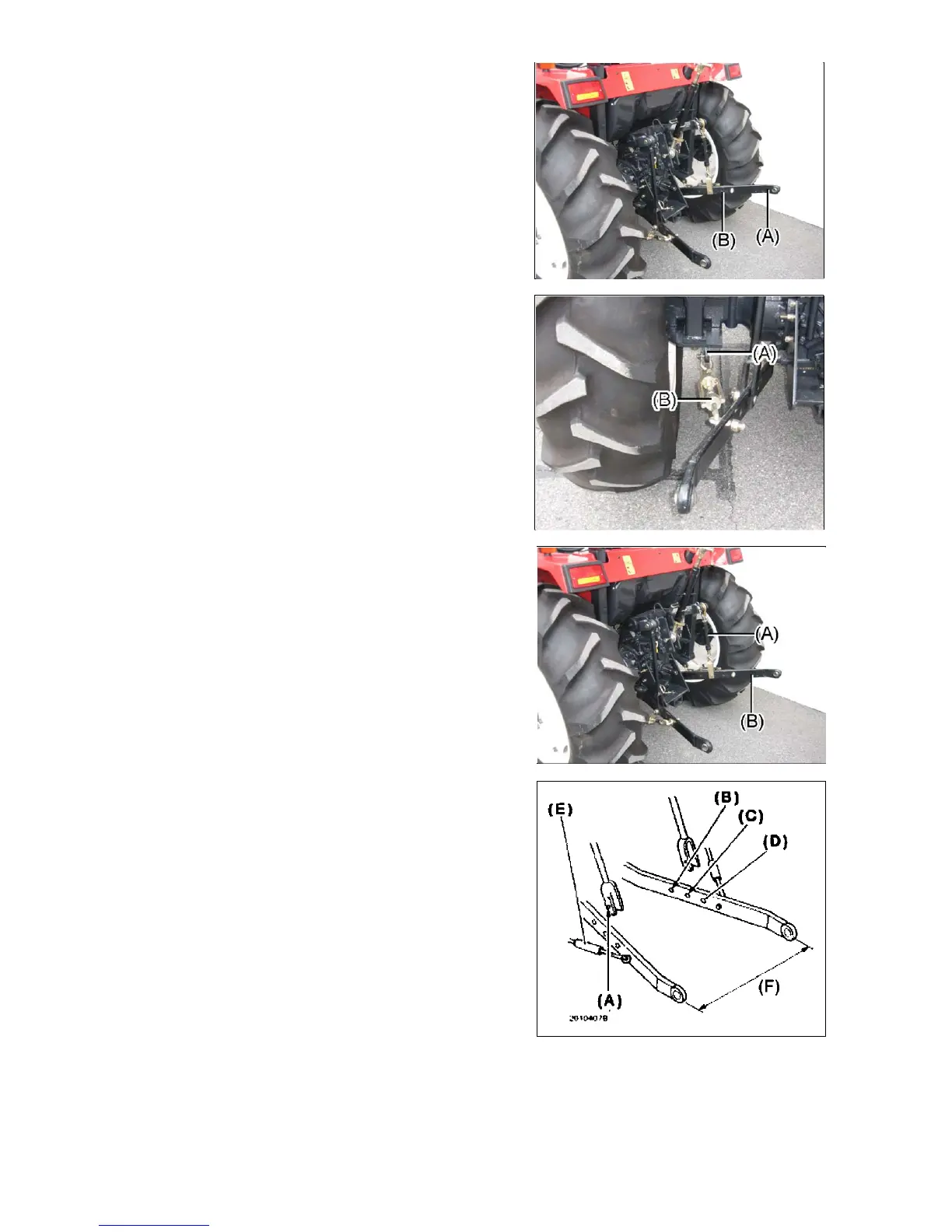

18. Using 3-point link
(1) Mount the lower link on the lower link hinge and fix it
with a lock pin.
Left and right links are commonly usable, but note
the front and rear position. Mount the link so that the
link mounting hole comes backward.
(A) Lower link
(B) Lift link mounting holes
(2) Fix the check chain on the chain bracket and the
lower link mounting holes (rearmost). Foremost
holes are used for coupling the lift link.
(A) Check chain bracket
(B) Check chain
(3) Couple the lift link with the lift arm and the lower link.
(A) Lift link
(B) Lower link
(A) Lift link hole
(B) Lower link hole: Not possible to use
(C) Lower link hole: Standard
(D) Lower link hole
(E) Check chain
(F) Lower link separation
