18. Replacing fuse
Remove the lid of the fuse box and check the fuse.
Replace the blown fuse with new one.
Stop the engine and check the main fuse (slow blow
fuse) which shuts off the electrical circuit when an
excessive current flows. Fused condition can be
checked by the changed color of the outer sheath.

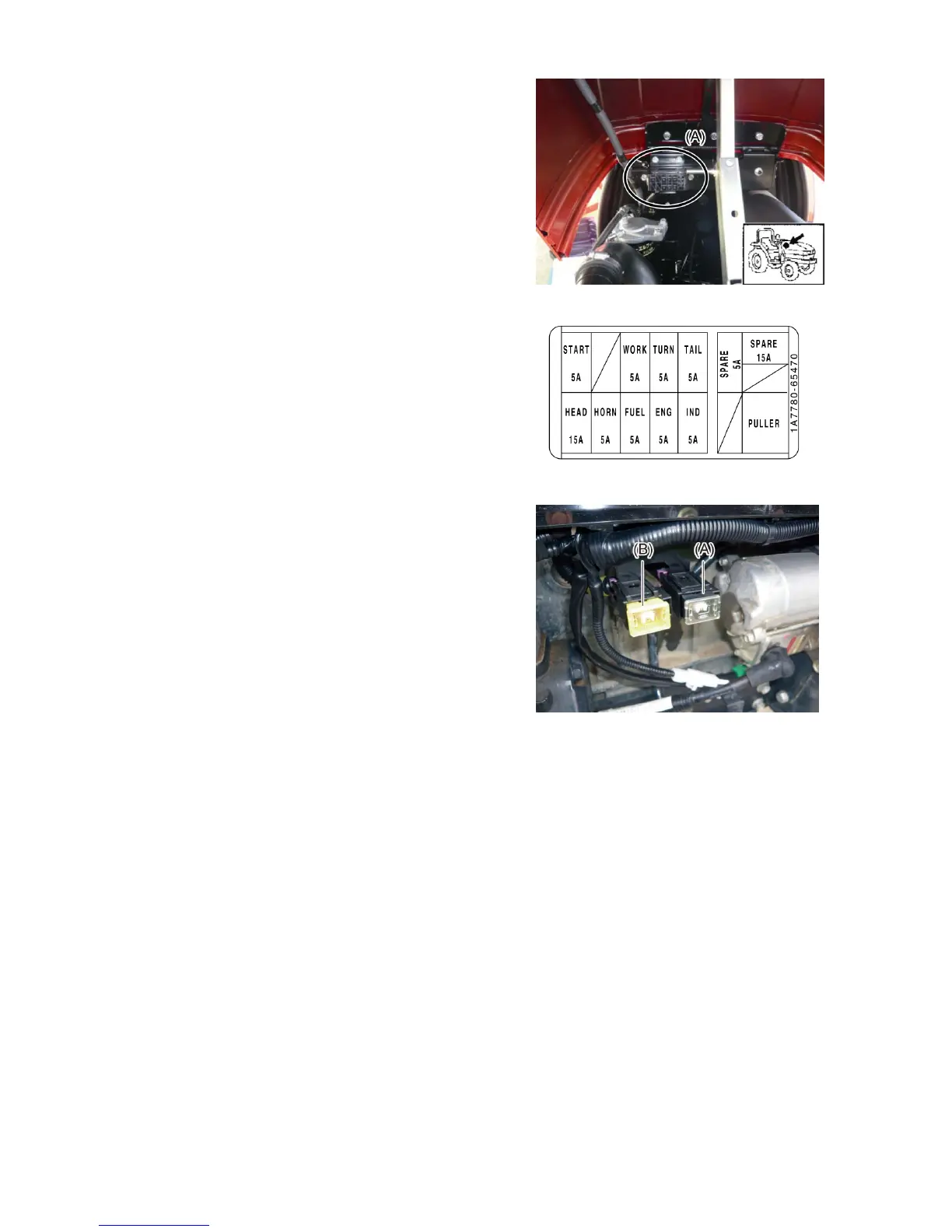

(A) Fuse box
START : Starter motor 5A
WORK : Working light 5A
TURN : Turn signal light 5A
TAIL : Tail light 5A
HEAD : Head light 15A
HORN : Horn 5A
FUEL : Fuel pump 5A
ENG : Timer relay 5A
IND : Indicator light 5A
(A) Main fuse: 60A
(B) Alternator fuse: 60A
