Yanmar EF494T - Safety Frame (ROPS)

EF494T OM
50

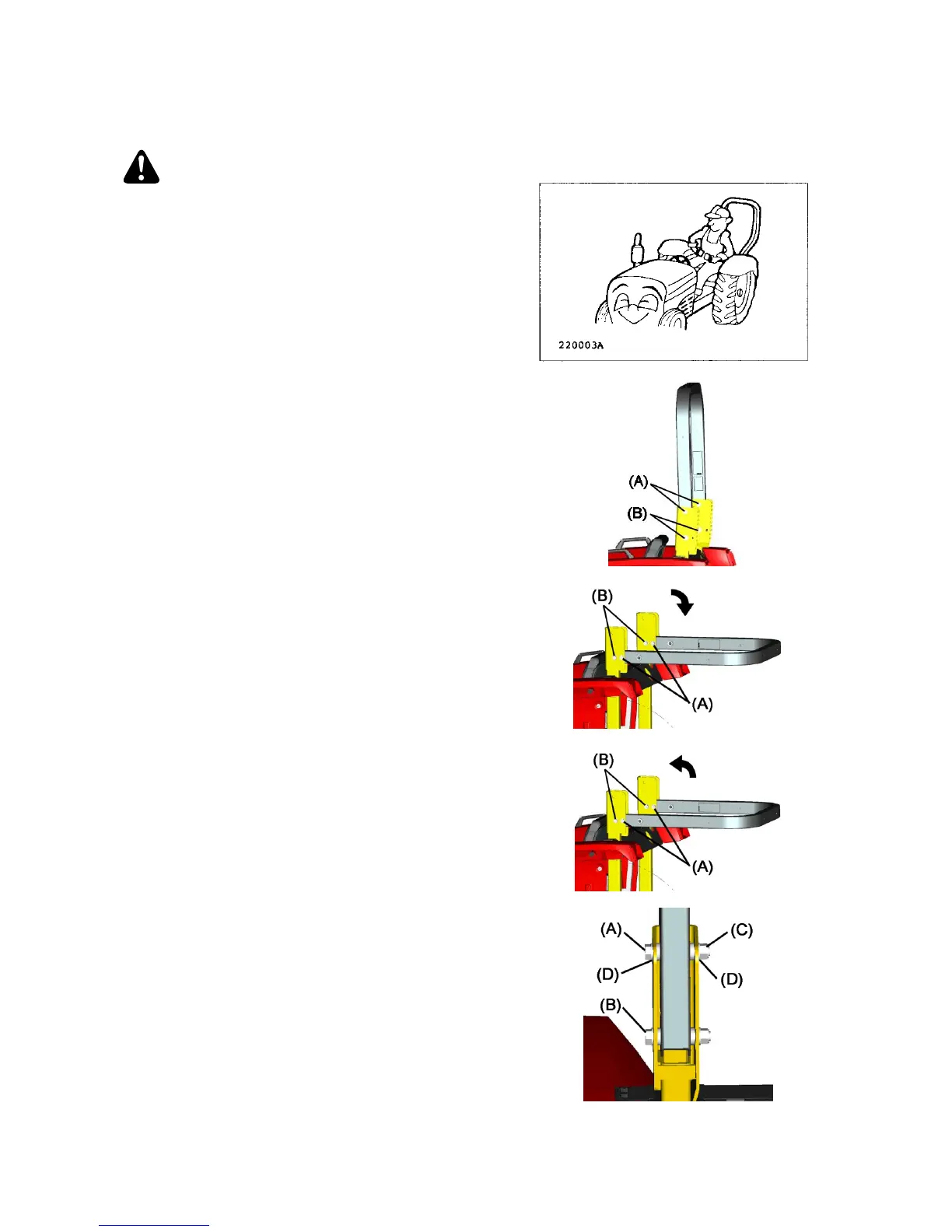

24. Safety frame (ROPS)
The safety frame is designed to protect the driver from an
accident. Never fail to use the safety frame when the
tractor is in use.
WARNING
 Always fasten the seat belt while operating the tractor
with Roll-over Protective Structure up.
 Do not use the seat belt if the foldable Roll-Over
Protective Structure (ROPS) is in the folded position or
the tractor does not have the ROPS.
 Do not modify the safety frame. Safety factor can be
lost.
 Damaged frame should be replaced as a complete set.
Partial repair may lead loss of safety level.
Folding in safety frame
(1) Loosen bolts (B) and remove bolts (A).
(2) Push down the frame backward.
(3) Install bolts (A) as the right figure shows and
tighten all bolts (A), (B).
(A) Bolt M16x100 2 pieces
(B) Bolt M16x100 2 pieces
Setting up the safety frame
(1) Loosen bolts (B) and remove bolts (A)
(2) Push up the frame.
(3) Install bolts (A) as the right upper figure shows
and tighten all bolts (A) and (B).
Bolt tightening torque:
167-206 N-m (17-21 kgf-m)
(A) 26156-161002 Bolt M16x100, plated 2 pcs.
(B) 26156-161002 Bolt M16x100, plated 2 pcs.
(C) 26356-160002 U-nut, M16 4 pcs.
(D) 22137-160000 Washer 16, polished 8 pcs.
