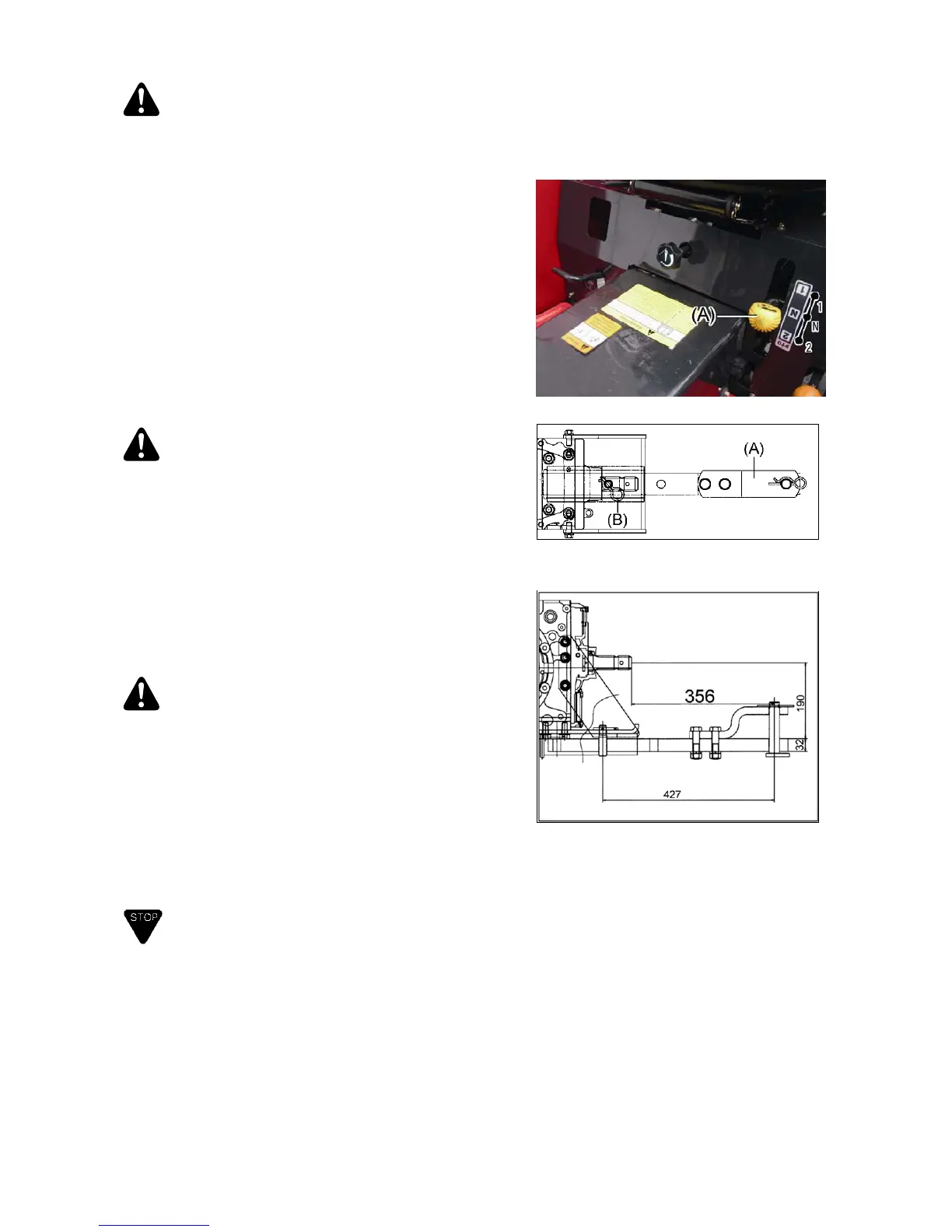

22. Using PTO shift lever
CAUTION
USE the specified PTO Speed. If not, the implement
can be damaged and cause an injury to people in
vicinity.
PTO speed can be changed in 2 stages to suit a
particular work. To change the shift, completely
disengage the PTO clutch by stepping on the PTO clutch
pedal. When the PTO is not used such as while running
on the road, set the PTO shift lever at N position.
(A) PTO shift lever
PTO speed
PTO shift PTO speed (rpm)
1 568
2 769
(Engine speed is : 2800rpm)
23. Using drawbar hitch
DANGER
Traction should always be done with the drawbar hitch.
Traction at the top link or rear axle causes the tractor to
roll over.
A stationary drawbar hitch is provided.
(A) Draw bar hitch
(B) Fixing pin
Combined PTO drive and traction
For a combined operation of PTO drive and traction, the
length from the edge of the PTO shaft to the mounting
position on the drawbar hitch implement is set to 356 mm.
CAUTION
Avoid injury!
 Use only the drawbar that was provided with the
machine. Do not install or use a floating-type drawbar
or any other type drawbar.
 If a longer drawbar hitch were installed, there is a
possibility that the attached section might be
damaged and the implement could become
disconnected.
 Hitch towed loads only to the drawbar to avoid
rearward upset.
IMPORTANT
Avoid damage!
 Maximum static vertical load on drawbar should not
exceed the maximum recommendations. Drive slowly
with heavy loads.
 Strain is greatly increased by speed and rough
ground. Do not exceed maximum vertical load 374kg
on drawbar.
