20. Mounting general farm implements

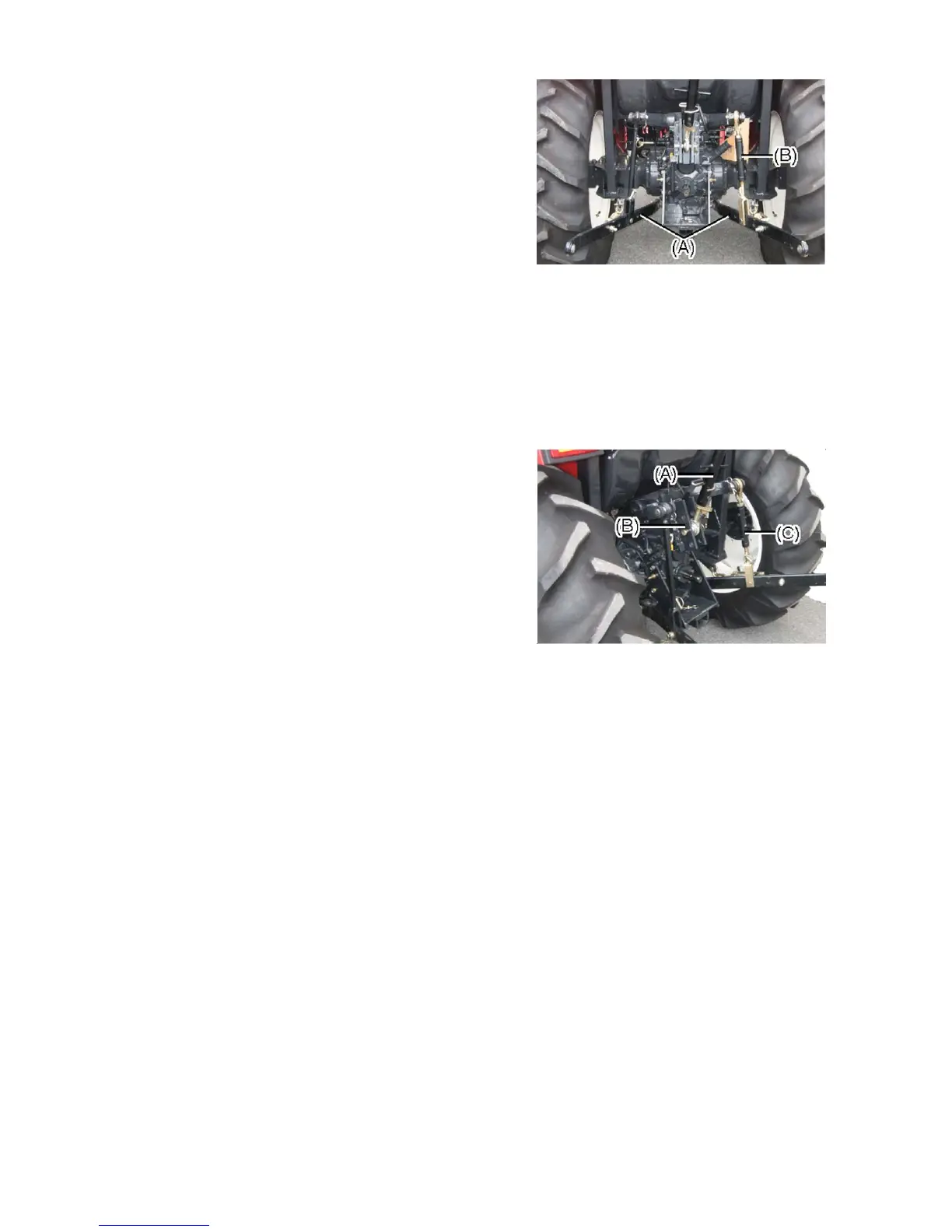

(1) Adjust the length of the right lift link to make the left
and right lower links equal in height.
(A) Lower link
(B) Lift link
(2) Align the center of the tractor with the center of the
implement on the flat ground.
(3) Fix the left lower link on the implement, then fix the
right lower link. If the right lower link pinhole is out of
position, turn the lift link to bring the hole in the
position.
(4) Fix the standard top link on the top link hinge using
the ball socket lock pin. Next, loosen the top link lock
nut and turn the turnbuckle. Lock the implement with
the lock pin.
(5) Loosen the lock nut of the top link and turn the
turnbuckle for adjustment. Fix the implement in the
top link mounting position with a pin.
(A) Top link
(B) Top link hinge
(C) Right lift link
(6) Lower the implement on the ground. Adjust its
posture with the top link turnbuckle.
(7) To install an implement requiring the drive force,
follow the instruction on the nameplate mounted on
the safety cover for the drive shaft.
(8) Lift the implement slightly and make sure it is level. If
not, adjust the right lift link.
(9) Lift the implement to a maximum height and rotate it
with a hand. If it is hard to rotate with a hand or if the
rotation is not smooth, adjust the length of the top
link.
