Yardistry YM12941Z - Step 10: Large Roof Rafter Assembly

27 support@yardistrystructures.com

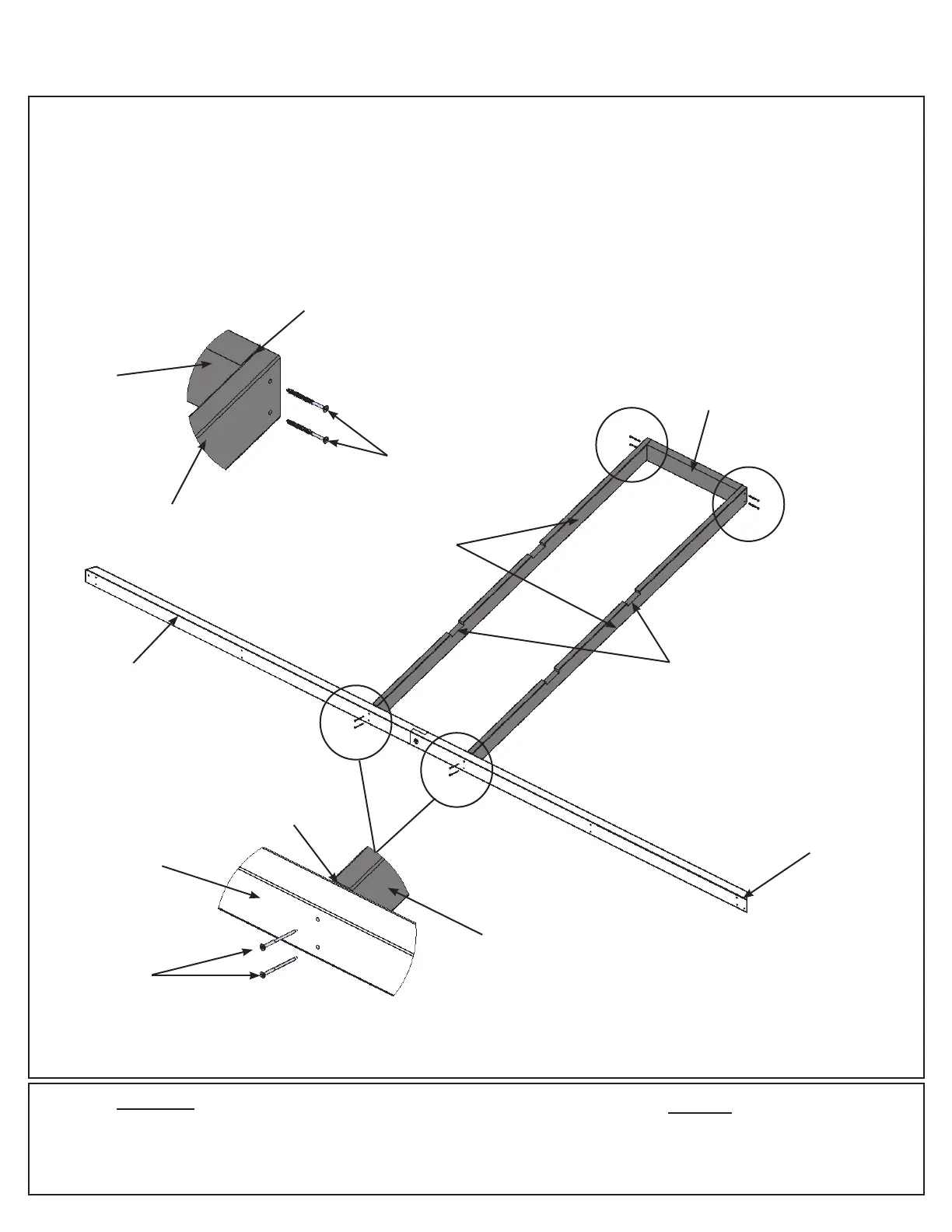

A: On each side of one (434) Top place one (440) Rafter so the tops and edges are ush then attach with two
#8 x 2-1/2” Wood Screws per side. (Fig. 10.1 and 10.2)
B: Place Large Fascia Beam Assembly from Step 7B on the bottom of (440) Rafters so the sides are ush and
holes are centred on the (440) Rafters then attach with two #8 x 2-1/4” Wood Screws per (440) Rafter. (g. 10.1
and 10.3)
C: Repeat Steps A and B to make a second Large Roof Rafter Assembly.
Hardware
Wood Parts
(440)
Rafter
Step 10: Large Roof Rafter Assembly
Part 1
Fig. 10.1
8 x #8 x 2-1/4” Wood Screw
8 x #8 x 2-1/2” Wood Screw
4 x (440) Rafter
2 x (434) Top
Fig. 10.3
Note notches
facing up
Large Fascia
Beam Assembly
Large Fascia
Beam Assembly
Flush
(440)
Rafter
#8 x 2-1/2”
Wood Screws
Flush
Fig. 10.2
Note angle
side up
(434) Top
#8 x 2-1/4”
Wood Screws
(440)
Rafter
(434)
Top
