Fig. 10.5
16 x #8 x 2-1/4” Wood Screw2 x (438) Rafter Corner Left
2 x (439) Rafter Corner Right

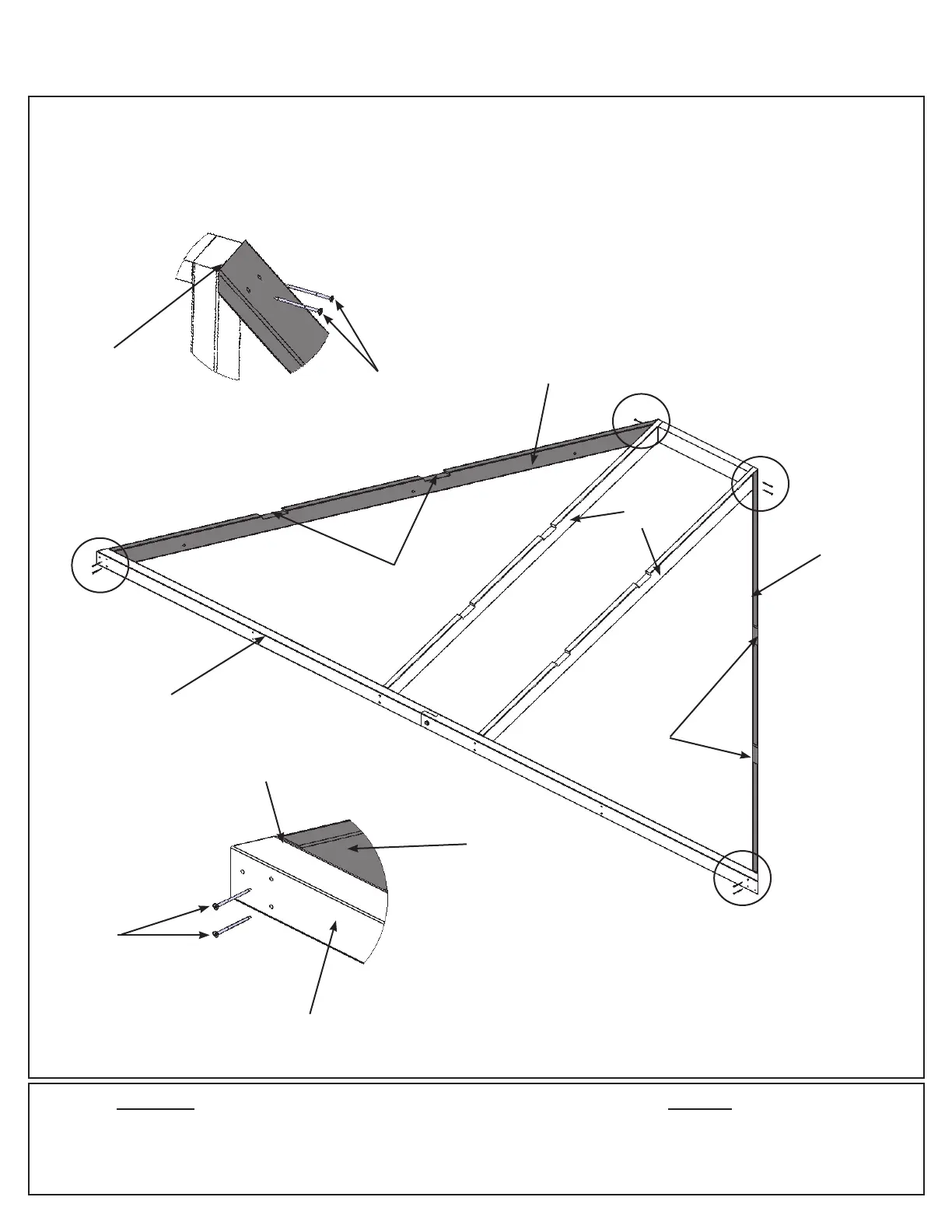

D: Beside each (440) Rafter place one (438) Rafter Corner Left and one (439) Rafter Corner Right so the tops
and edges are ush and the bottom edges are ush to Large Fascia Beam Assembly then attach with two #8 x
2-1/4” Wood Screws to the top and bottom of the rafters per side. (Fig. 10.4, 10.5 and 10.6)
E: Repeat Step D for the second Large Roof Rafter Assembly.
(440)
Rafter
Large Fascia
Beam Assembly
Flush
(439) Rafter
Corner Right
#8 x 2-1/4”
Wood Screws
#8 x 2-1/4”
Wood Screws
Step 10: Large Roof Rafter Assembly
Part 2
Fig. 10.4
(438) Rafter
Corner Left
Rafter
Corner
Left and
Right
Large Fascia
Beam Assembly
Note notches
facing up
Note notches
facing up
Flush
Fig. 10.6
