Hardware
Centred and ush to
bottom of rafters
#8 x 1” Pan
Screw
Roof to Beam
Bracket

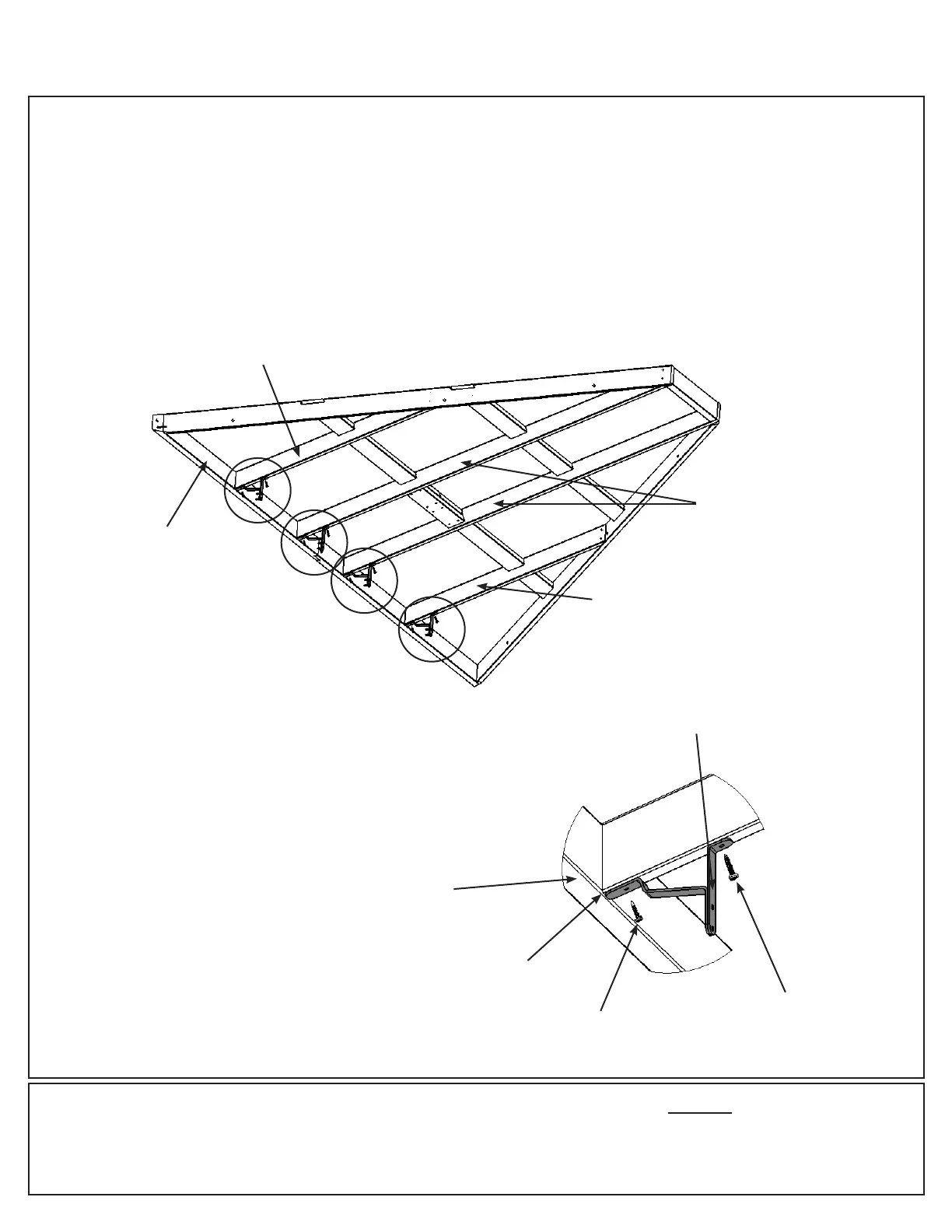

Fig. 11.1
Fig. 11.2
A: On the Back of both Large Roof Rafter Assemblies, centred and ush to the bottom of (442) Rafter Short
Right, (441) Rafter Short Left and both (440) Rafter attach one Roof to Beam Bracket per board with one #8 x 1”
Pan Screw in the bottom hole and one #12 x 1-1/2” Pan Screw in the top hole per bracket. (g. 11.1 and 11.2)
Step 11: Attach Roof to Beam Brackets
- Large Roof Rafter Assemblies
8 x #8 x 1” Pan Screw
8 x #12 x 1-1/2” Pan Screw
8 x Roof to Beam Bracket
Back View
(440)
Rafter
(441) Rafter
Short Left
(442) Rafter
Short Right
Large Fascia
Beam Assembly
Large Fascia
Beam Assembly
#12 x 1-1/2”
Pan Screw
