Remember to push up centre to assist with alignment.

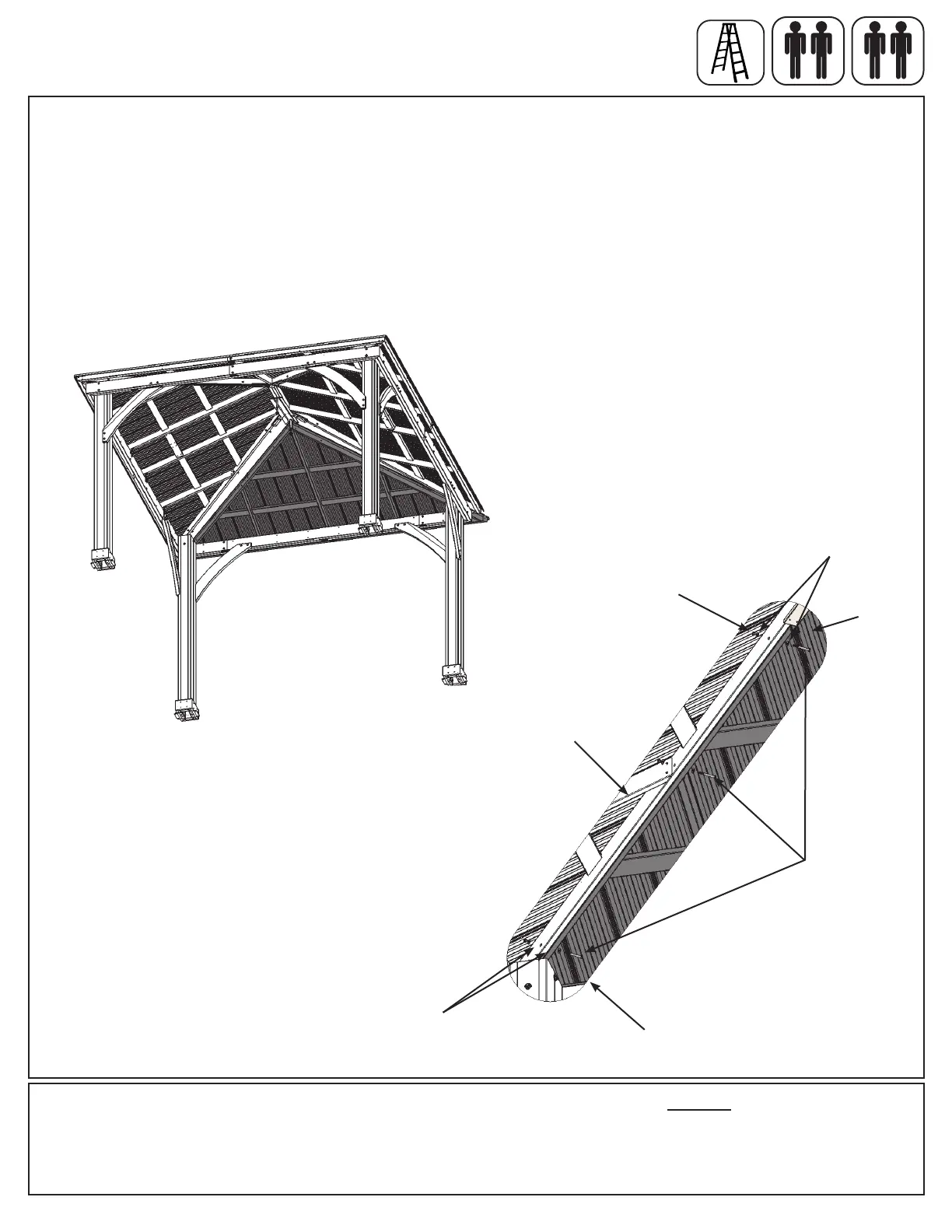

B: Starting at the bottom and working up loosely connect Roof Panel Assemblies through the Rafter Corners with
three 1/4 x 2-3/4” Hex Bolts (with two 1/4-5/16” large washers and one 1/4” lock nut) per side. To align bolt holes
helper on the centre ladder may have to push up in the centre of the panels and others make sure corners are
aligned. Tighten bolts when all six have been installed. (g. 19.3 and 19.4)
Rafter Corners should be aligned with Roof to Post Bracket.
Rafter
Corner
Hardware
1/4” Lock
Nut
1/4 x 2-3/4”
Hex Bolt
Fig. 19.3
Fig. 19.4
Small Roof Panel
Assembly
Bottom
holes rst
x 3
Step 19: Attach Final Roof Panel
Part 2
Large
Roof
Panel
Assembly
6 x 1/4 x 2-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4-5/16”
Large Washer
