LOG SPINNER FOOT PLATE
The foot plate holds the log in place while the wedge
splits the log.
The foot plate allows the operator to easily spin a log
in prep for splitting and allows the log to rotate when
splitting instead of causing unnecessary stress on the
beam.
It is easy to replace when the grip teeth are damaged.
No repair welding is required.
2-POSITION LOG CRADLE
The log cradles are designed to catch the log after it is split.
2-position function – The first positon is to center
logs on the beam. The second position provides a at
surface and worktable on which to put logs.
SPLIT CONTROL HANDLE
The control handle is used to move the wedge up
and down to split logs. The control handle has three
positions: Forward, Neutral, and Reverse. See the
“operation”
section for instruction.
MANUAL TUBE
Keep manuals safely in the tube.
HORIZONTAL BEAM LOCK
The beam lock bracket is used to secure the beam in
the horizontal position.
HYDRAULIC CYLINDER HANDLE
The hydraulic cylinder handle is included for easy
transition from horizontal to vertical.
2” BALL HITCH COUPLER
The coupler hitch is at the end of the tow bar and
attaches to a tow ball for transportation purposes.
4-WAY WEDGE
The 4-way wedge is used to split the log into four
pieces at one time.
LOG STRIPPER
The log stripper is designed to remove any partially
split wood from the wedge. This may occur while
splitting large diameter wood or freshly cut wood.
BEAM ASSEMBLY
The U-beam structural design is signicantly stronger
than a typical I-beam design.
LOG TABLE (OPTIONAL)
A log table/platform can be mounted on the log cradle
directly.
ENGINE ON/OFF SWITCH
The engine switch has two positions. OFF - engine will
not start or run. ON - engine will start and run.
YS2565PM01 - 1609
20
Gas Log Splitter
»
Operator’s Manual

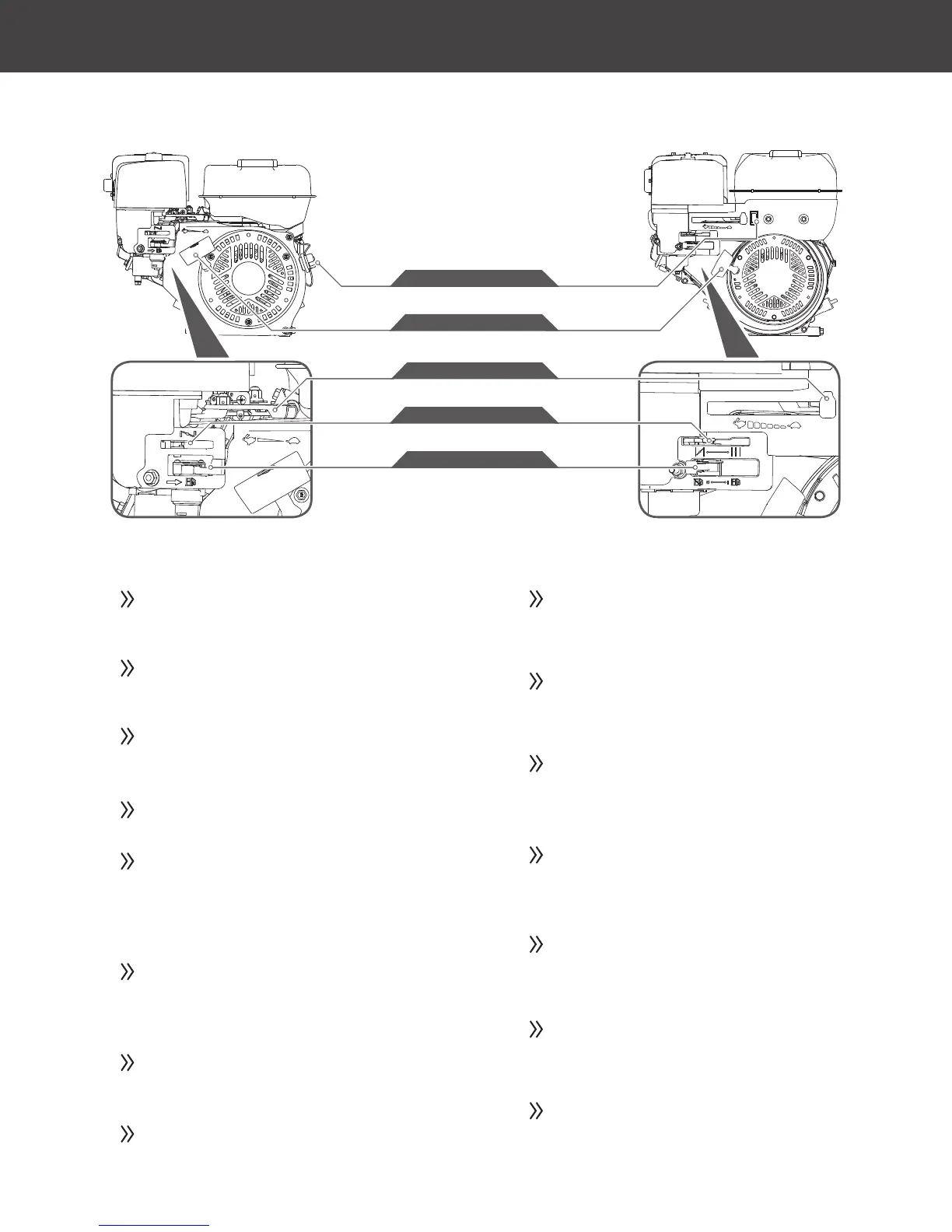

Know Your Machine
|
Engine On/Off Switch
Recoil Starter Handle
Choke Control
Fuel Shut-Off Valve
Throttle Control
