YASKAWA A1000 Installation Manual

5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 37B 1000-Series Option PG-X3 Installation Manual 13
◆ Installing the Option
Remove the front covers of the drive before installing the option. Refer to the drive manual
for directions on removing the front covers. Cover removal varies depending on drive size.
1. Shut off power to the drive, wait the appropriate amount of time specified on the
drive for voltage to dissipate, then remove the digital operator (E) and front covers
(D, F).
DANGER! Electrical Shock Hazard. Do not connect or disconnect wiring while the power is on. Before
wiring terminals, disconnect all power to the equipment. The internal capacitor remains charged even after
the power supply is turned off. After shutting off the power, wait at least the amount of time specified on the
drive before touching any components.

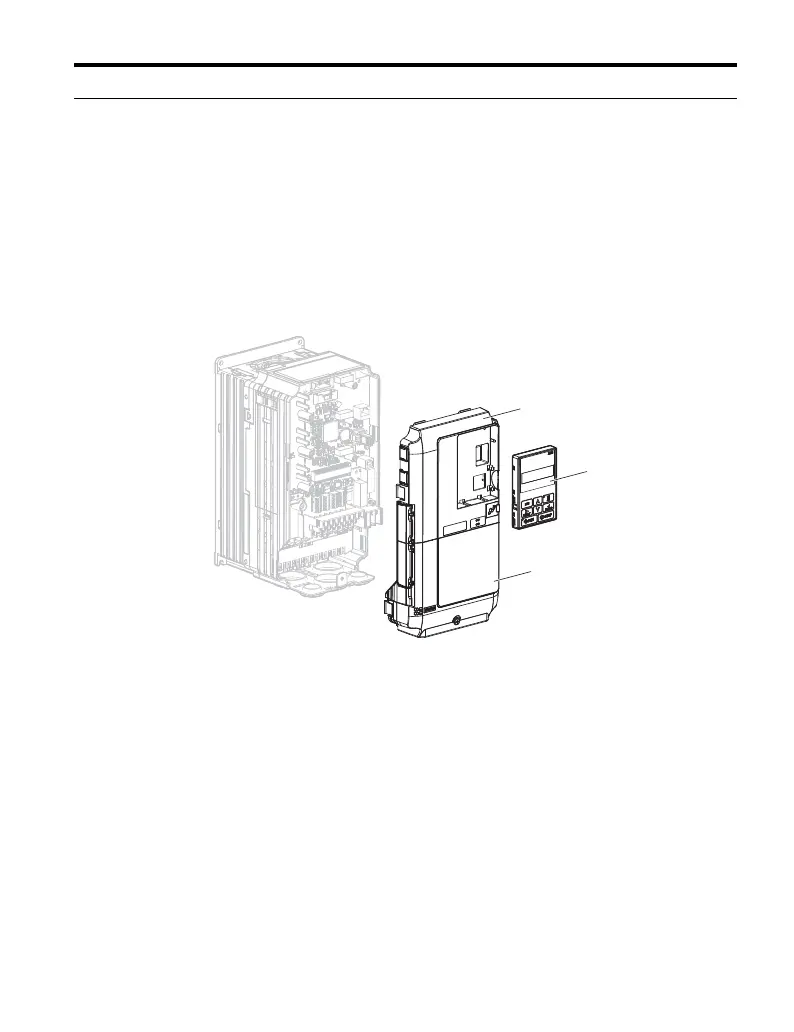

Figure 3
Figure 3 Remove the Front Covers and Digital Operator
D
E
F

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
