YASKAWA ELECTRIC TOBP C730600 37B 1000-Series Option PG-X3 Installation Manual 9
4 Option Components
4 Option Components
◆ PG-X3 Option

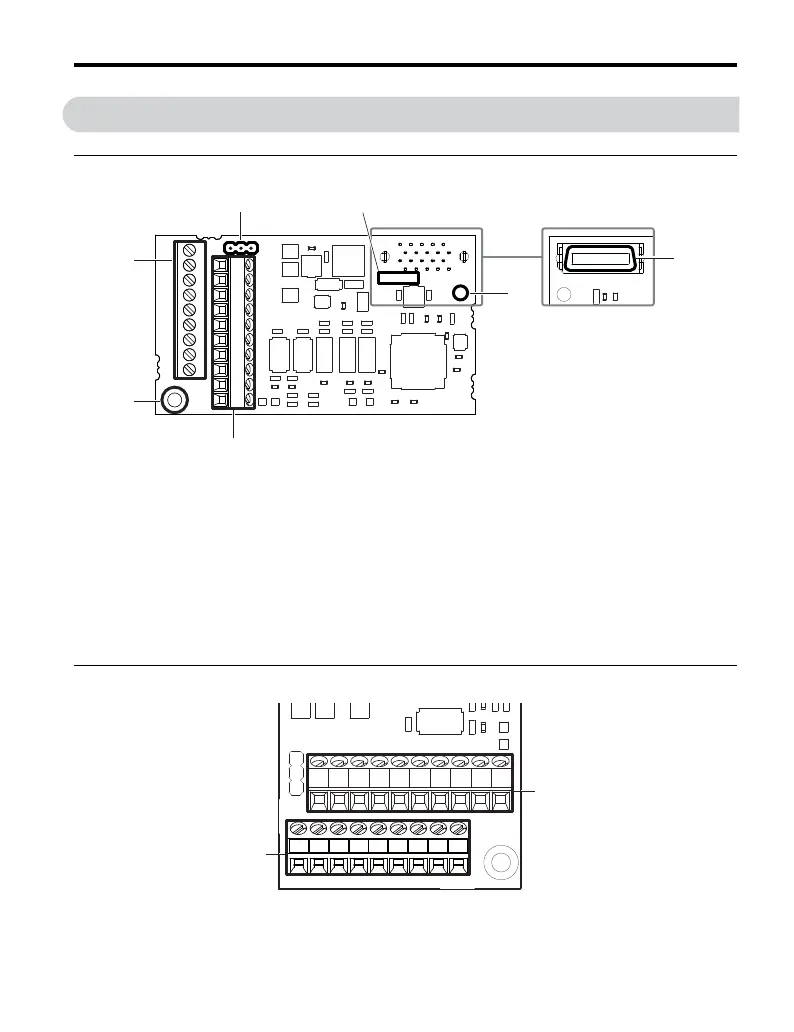

Figure 1
Figure 1 PG-X3 Option Components
◆ Terminal Blocks TB1 and TB2
Refer to Tabl e 5 on page 21 for details on TB1 and TB2 terminal functions and signal levels.
A – Terminal block TB1 E – Installation hole
B – Jumper for PG power supply
voltage (CN3)
<1>
F – Terminal block TB2
C – Model number G – Ground terminal (installation
hole)
<2>
<1> Refer to Tab le 2 on page 18 for detail.
<2> Terminal for ground wire packaged with the option card
D – Connector (CN5)
PG-X3
CN3
Underside
A
G
BC
F
E
D
X3
IP IG a+ z+ z−a− b− b+
SG
A+ B+A− B− Z+ SD FEZ−
TB1
TB2
X3
