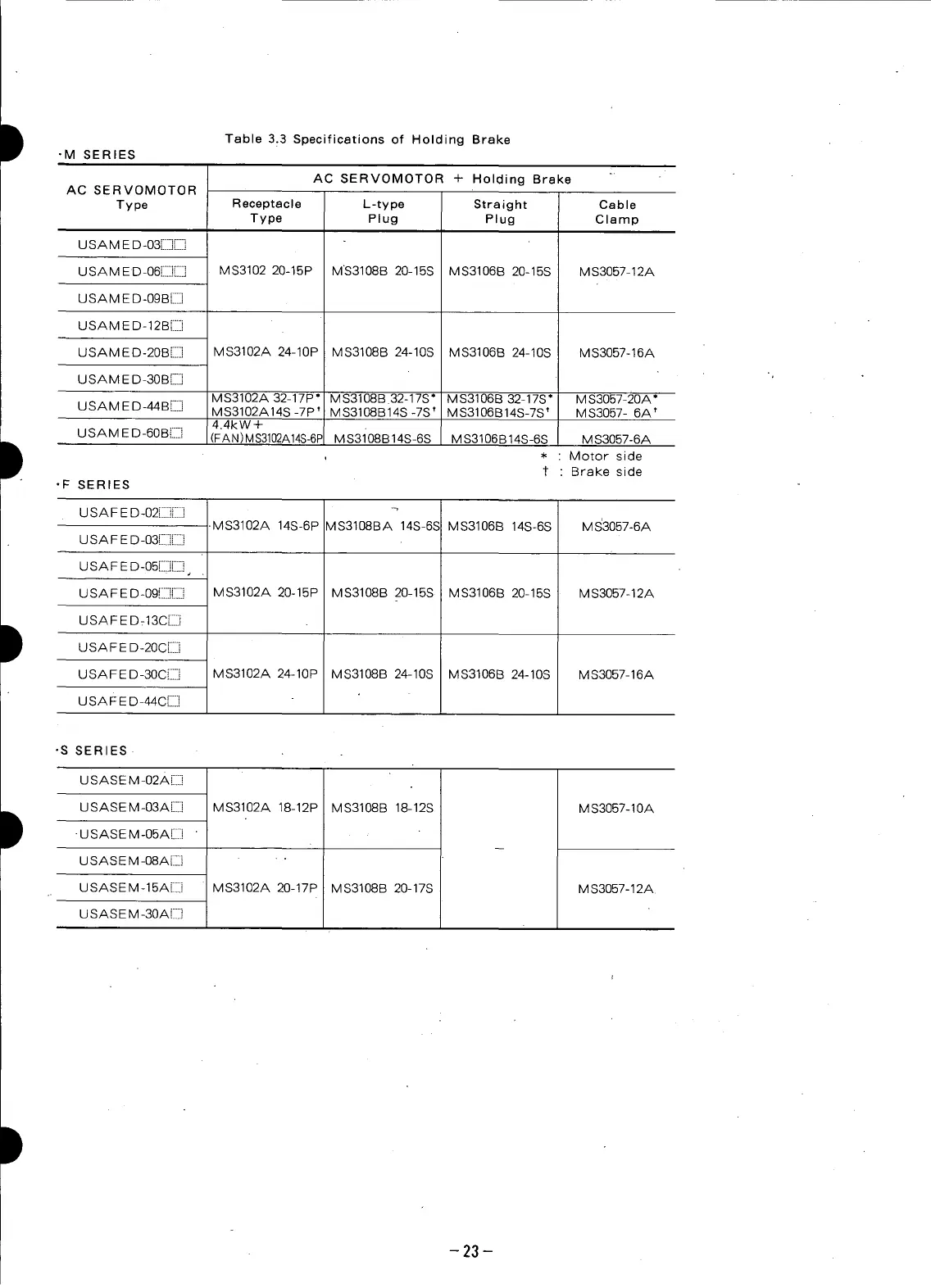

I Table 3.3 Specifications of Holding Brake
•M SERIES
AC SERVOMOTOR + Holding Brake : '
AC SERVOMOTOR
Type Receptacle L-type Straight Cable
Type Plug Plug Clamp
U S A M E D-03[]I]]
USAMED-06[][] MS3102 20-15P MS3108B 20-15S MS3106B 20-15S MS3057-12A
U S A M E D-09 B [iii:i:]
USAM E D-12B[]
USAMED-20B[[] MS3102A 24-10P MS3108B 24-10S MS3106B 24-10S MS3057-16A
U SA M E D-30 B{_-.]
MS3102A 32-17P ° MS3108B.32-17S* MS3106B 32-17S* MS3057-20A*
USAMED-44B[] MS3102A14S-7P * MS3108B14S-7S t MS3106B14S-7S t MS3057- 6A t
4.4kW+
USAM E D-60Bi[] (FAN) MS3102A14S-6F MS3i08B14S-6S M $3106B14S-6S M $3057-6A
* Motorside
¢ Brake side
-F SERIES
USAFED-02[iiq
-MS3102A 14S-6P VlS3108BA 14S-6S MS3106B 14S-6S MS'3057-6A
U SA F E D-03L..JL....i .
U S A F E D-05[][[], .'
USAFED-09iiFI MS3102A 20-15P MS3108B 2045S MS3106B 20-15S MS3057-12A
USA F E D :13C[]
I USA FE D-20C[[i
USAFED-30C[] MS3102A 24-10P MS3108B 24-10S MS3106B 24-10S MS3057-16A
USA F E D-44C[]
• S SERIES=
U S A S E M -02A Eli
USASEM-03A[::] MS3102A 18-12P MS3108B 18-12S MS3057-10A
I -U SAS E M-05A[[] '
U SAS E M -08A[::] " •
USASEM-15A[:::::i MS3102A 20-17P MS3108B 20-17S MS3057-12A
U SAS E M -30A[:::::]
-23-
