M
M
W/T3
Drive
V/T2
U/T1
+1
_
W/T3
Drive
V/T2
U/T1
+1
_
+
_
Fuse
Fuse
DC power supply
(converter)

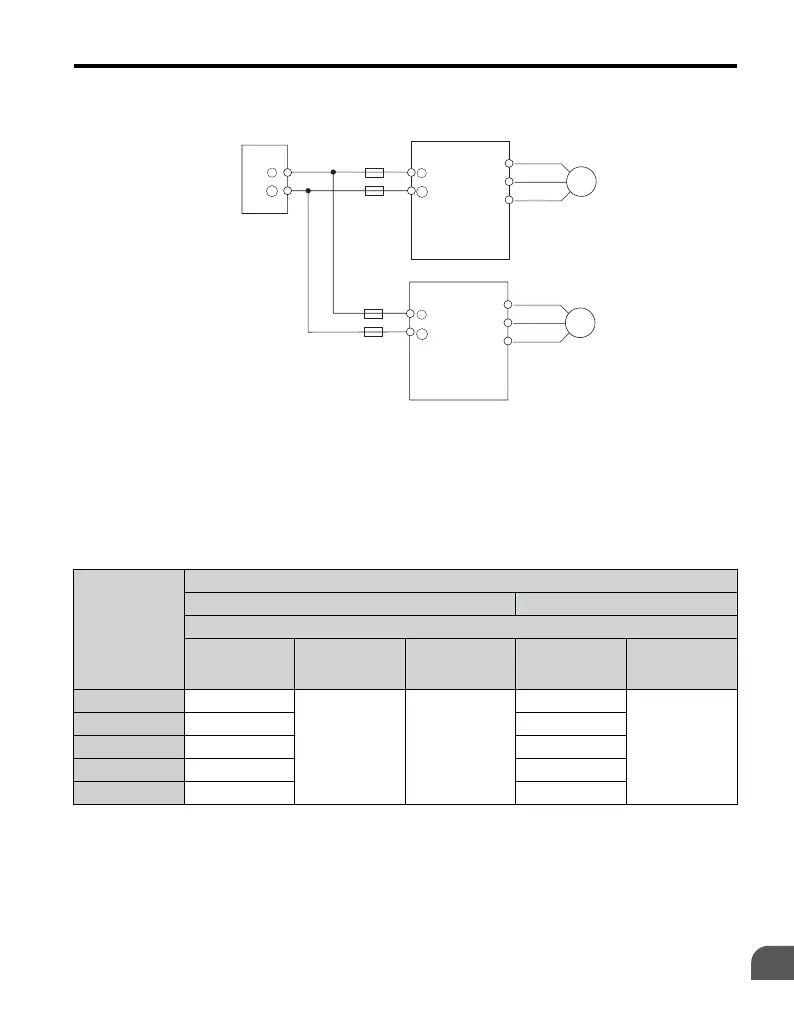

Figure C.2 Example of DC Power Supply Input (Two Drives Connected in Series)
Note: 1. When connecting multiple drives together, make sure that each drive has its own fuse. Replace all
fuses when one fuse blows.
2. Refer to on page 43 for an AC power supply.
3. The recommended fuses and fuse holders are made by Fuji Electric.
Table C.2 Single-Phase 200 V Class Fuses and Fuse Holders
Drive Model
DC Power Supply Input
Fuse Fuse Holder
Manufacturer: Fuji Electric
Type
Rated Short
Circuit Braking
Current (kA)
Qty. Type Qty.
BA0001 CR6L-20/UL
100 2
CMS-4
2
BA0002 CR6L-30/UL CMS-4
BA0003 CR6L-50/UL CMS-4
BA0006 CR6L-75/UL CMS-5
BA0010 CR6L-100/UL CMS-5
C.2 European Standards
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
257
C
Standards Compliance
