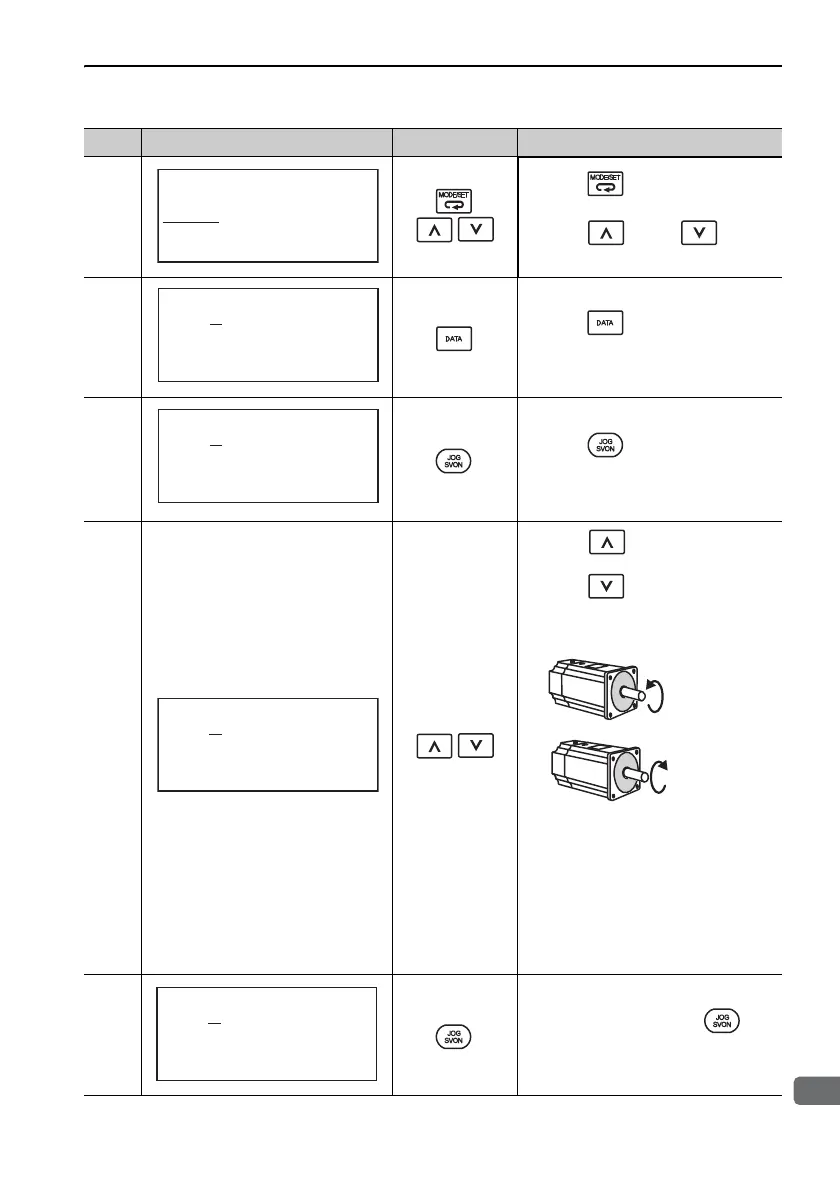

4.3 JOG Operation Using a Digital Operator
4-7
4
Trial Operation (Checking Servomotor Operation)
2
Press the Key to view the main
menu of the Utility Function mode.
Press the Key or Key to
select Fn002.
3
Press the Key.
The display changes to the execution
display of Fn002.
4
Press the Key. "RUN" is dis-
played as the status, and the servomo-
tor power turns ON.
5
Press the Key to rotate the ser-
vomotor in the forward direction and
press the Key to rotate it in
reverse. The servomotor will operate
while the key is being pressed. (The
factory setting is 500 min
-1
.)
Confirm that the servomotor operation
is correct. At the same time, carefully
inspect the servomotor’s condition and
check the following points in particu-
lar. If a problem is found, correct it.
• Is there any unusual vibration?
• Are there any unusual sound?
• Is the temperature rising unusually
high?
6
After confirming that the servomotor is
running correctly, press the
Key.
"BB" is displayed as the status, and the
servomotor power turns OFF.
(cont’d)
Step Display after operation Keys Operation
BB
− FUNCTION−
Fn000:Alm History
Fn002:JOG
Fn003:Z− Search
Fn004:Program JOG
BB − JOG−
Pn304=00500
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
RUN − JOG−
Pn304=00500
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
RUN − JOG−
Pn304=00500
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
Forward
rotation
Reverse
rotation
BB − JOG−
Pn304=00500
Un000=0 00000
Un002=0 00000
Un00D=0 0000000000
To Next Page
