13 European Standards
98 YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION
A - SW (ON) B - Screw (OFF)
Note:
To comply with IEC61800-3 on drive models 2xxxA and 4xxxA with no built-in EMC filter, turn on the EMC filter switch on the left side.

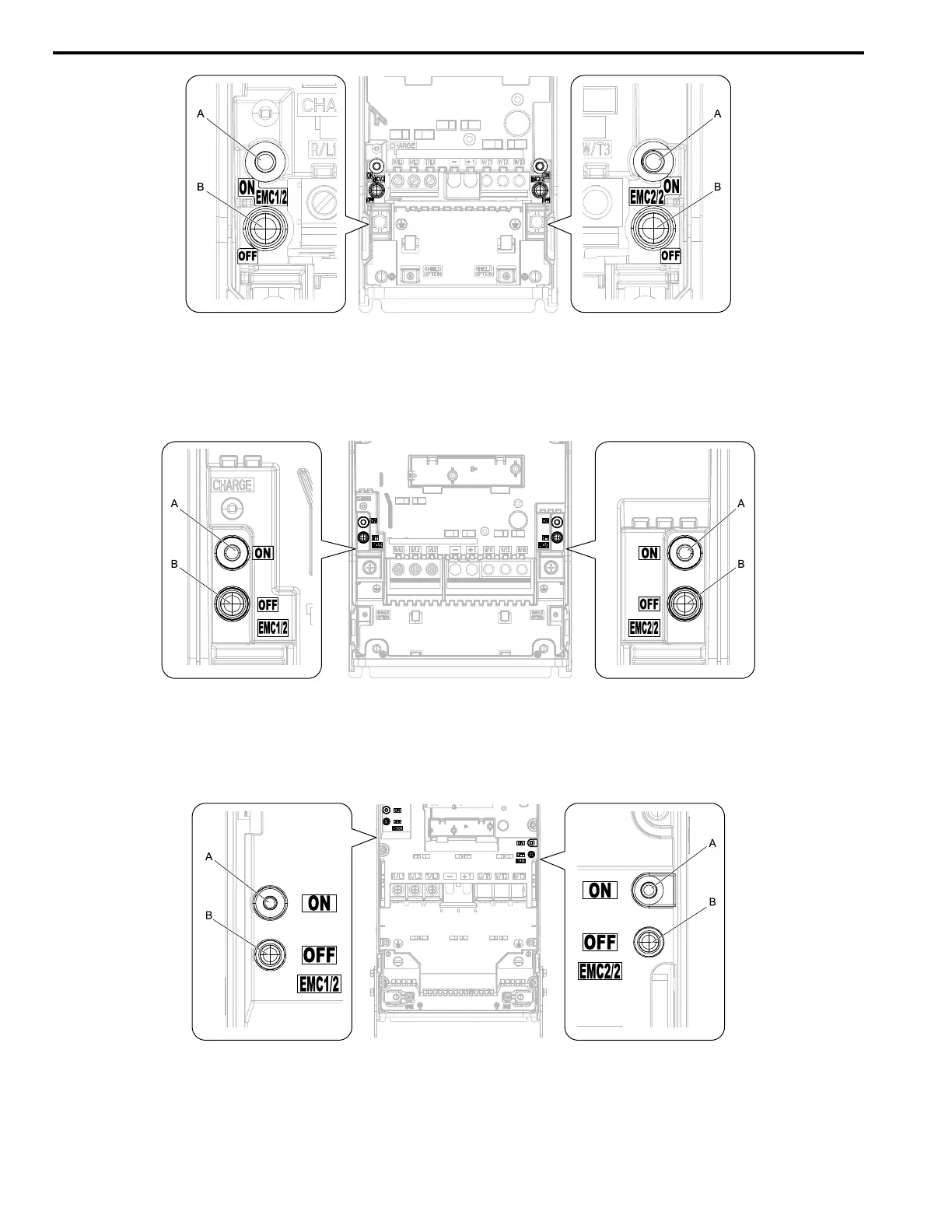

Figure 13.8 EMC Filter Switch Location 2
A - SW (ON) B - Screw (OFF)
Note:
To comply with IEC61800-3 on drive models 2xxxA and 4xxxA with no built-in EMC filter, turn on the EMC filter switch on the left side.
Figure 13.9 EMC Filter Switch Location 3
A - SW (ON) B - Screw (OFF)
Note:
To comply with IEC61800-3 on drive models 2xxxA and 4xxxA with no built-in EMC filter, turn on the EMC filter switch on the right side.
Figure 13.10 EMC Filter Switch Location 4
