7 Drive Exterior and Mounting Dimensions
◆
B001 to B004, 2001 to 2006

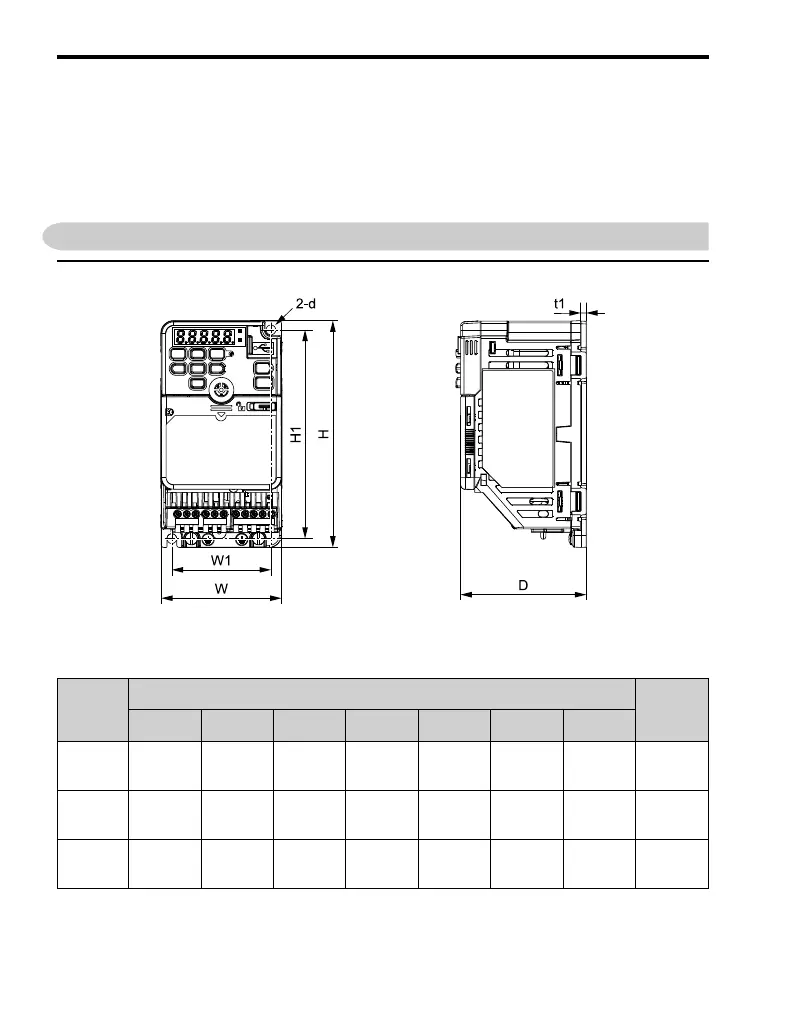

Figure 7.1 Exterior and Mounting Dimensions
Table 7.1 Single-Phase 200 V Class (Finless-Type Drive)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 H1 t1 d
B001
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
B002
68
(2.68)
128
(5.04)
71
(2.80)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
B004
68
(2.68)
128
(5.04)
81
(3.19)
56
(2.20)
118
(4.65)
3
(0.12)
M5
0.6
(1.32)
