9 Mechanical Installation
YASKAWA ELECTRIC TOEP C710617 17B YASKAWA AC Drive GA700 Initial Steps EN 15

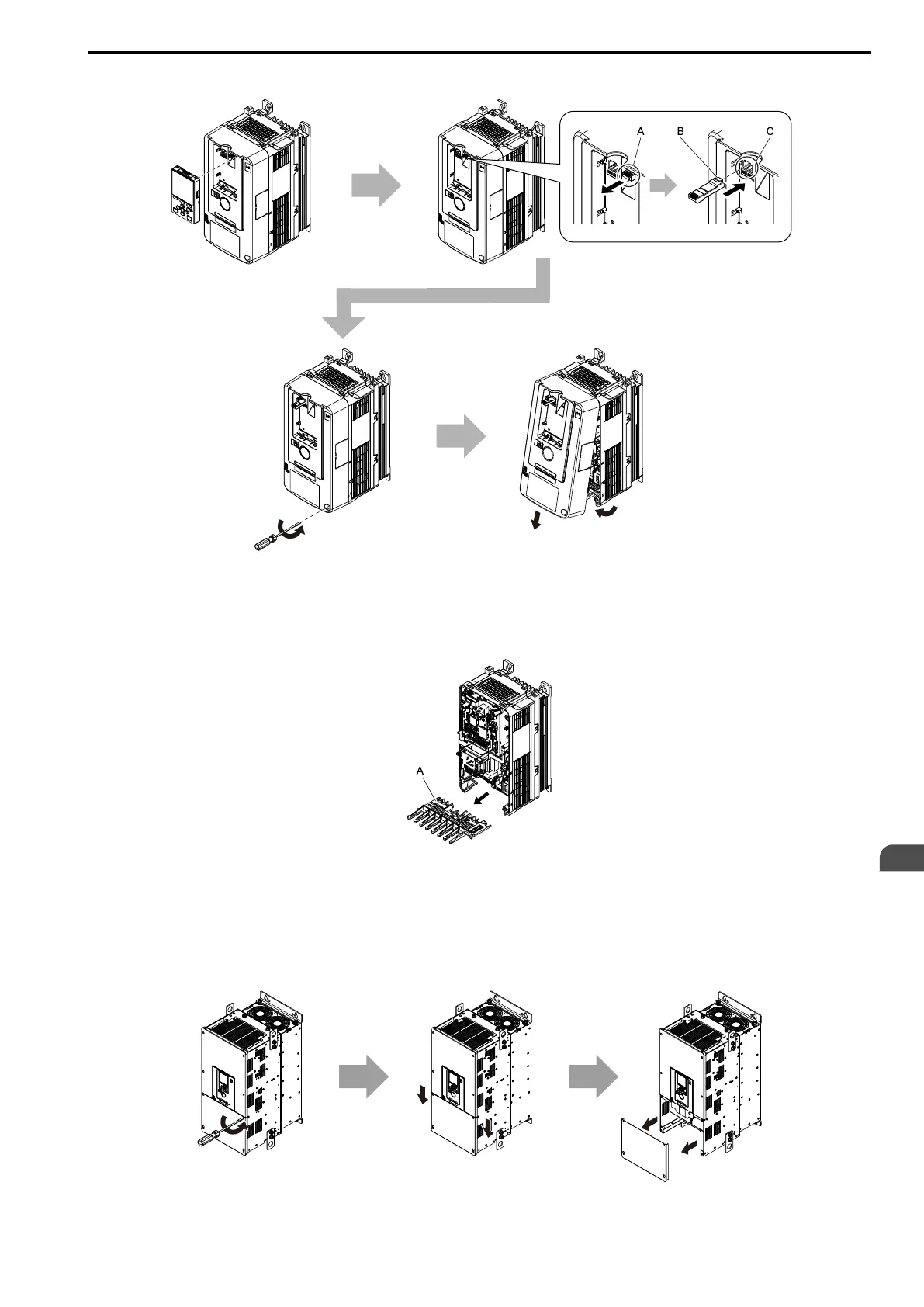

5. Carefully pull forward to remove the front cover.
A - Keypad connector
B - Hook
C - Connector holder
Figure 9.5 Remove the Front Cover
6. Remove the wiring cover before wiring the main circuit terminal.
A - Wiring cover
■ Remove the Terminal Cover
1. Loosen the screws on the terminal cover.
2. Pull down on the cover.
3. Pull forward on the terminal cover to free it from the drive.
Figure 9.6 Removing the Terminal Cover
