YASKAWA P1000 Safety Precautions

A
A
A
A
B
C
B
Side Clearance
Line up the tops of the drives.
D
D
Top/Bottom Clearance
A – 50 mm minimum
B – 30 mm minimum
C – 2 mm minimum
D – 120 mm minimum

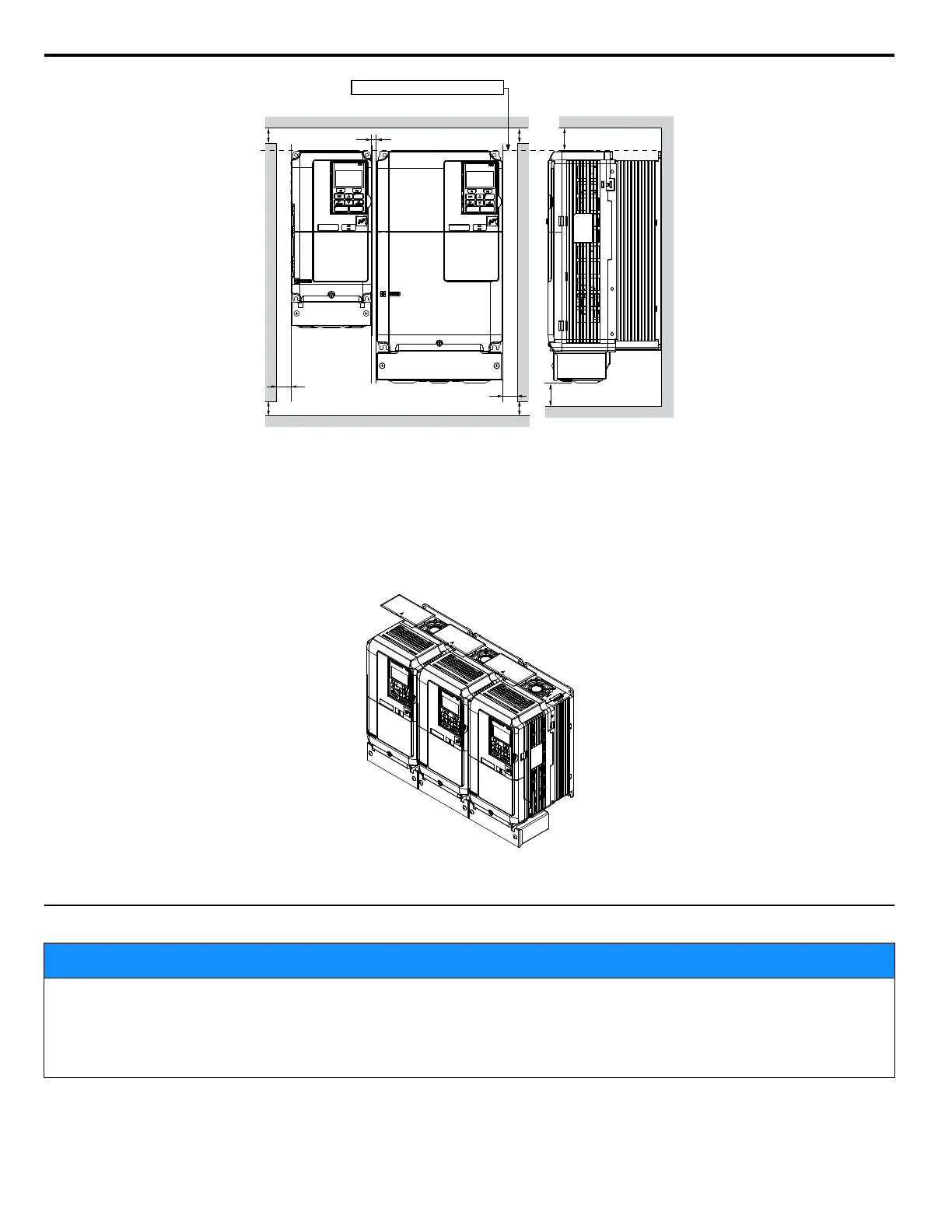

Figure i.7 Space Between Drives (Side-by-Side Mounting)
Note: Align the tops of the drives when installing drives of different heights in the same enclosure panel. Leave space between the tops and bottoms
of stacked drives for easier cooling fan replacement.
Remove the top protective covers of all drives as shown in Figure i.8 when mounting IP20/NEMA Type 1 enclosure drives
side-by-side.
Figure i.8 IP20/NEMA 1 Side-by-Side Mounting in Enclosure
u
Drive Dimensions
NOTICE
Refer to the P1000 Technical Manual SIEPYAIP1U01 for IP20/NEMA Type 1, IP00/Open Chassis and Flange Type
Enclosure (NEMA 12 Backside) drive dimensions.
The 1000 Series CD-ROM No. TOECC71061615, packaged with the drive contains the P1000 Technical Manual No.
SIEPYAIP1U01 and additional 1000 Series manuals.
i.2 Mechanical Installation Safety
14
YASKAWA ELECTRIC TOEP YAIP1U 03B YASKAWA AC Drive – P1000 Safety Precautions

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
