YASKAWA P1000 Safety Precautions

u
Switches and Jumpers on the Terminal Board

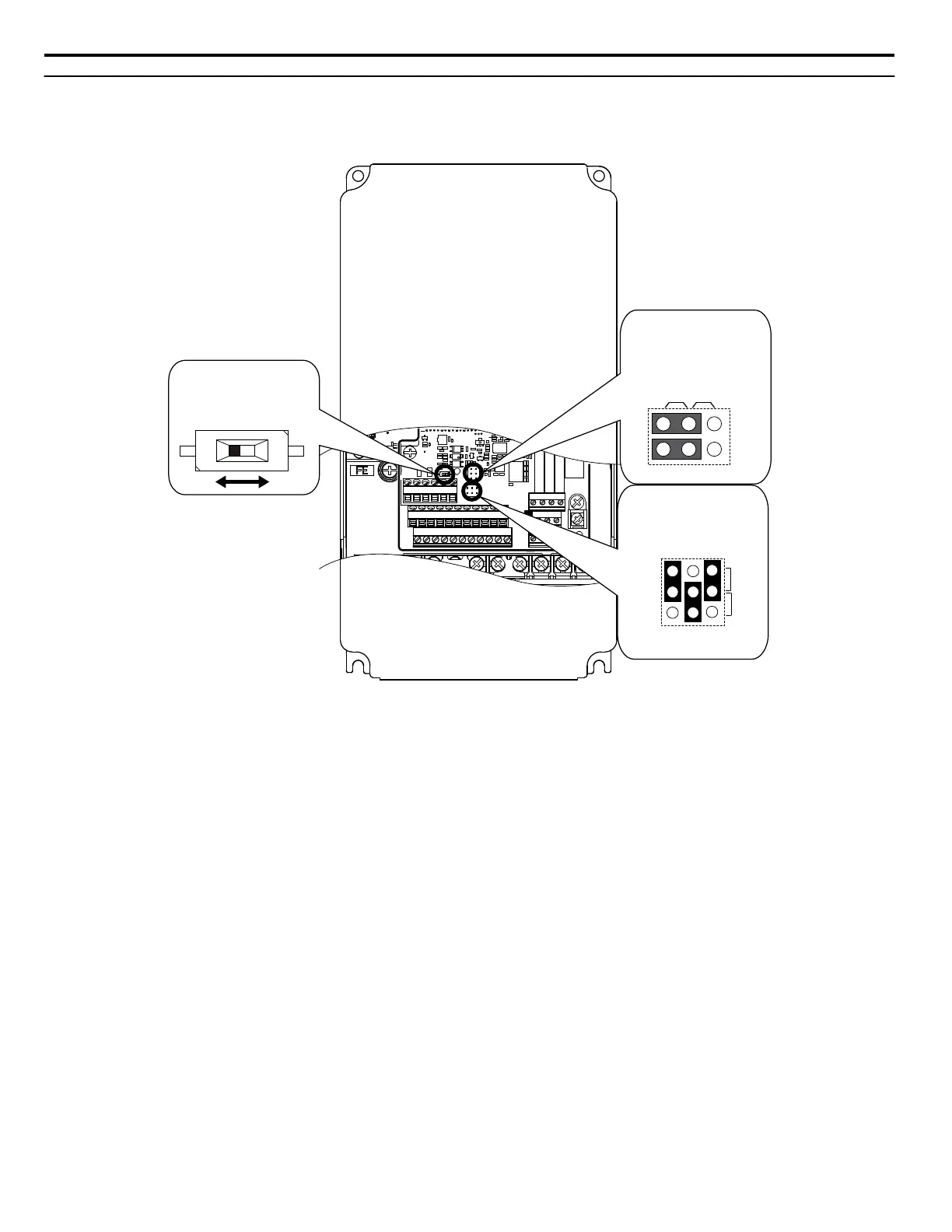

The terminal board is equipped with several switches used to adapt the drive I/Os to the external control signals. Figure i.
17 shows the location of these switches.
E(G) IG R+ R- S+ S-
S1 S2 S3 S4 S5 S6 S7 S8 SN SC SP
V+ AC A1 A2 A3 FM AM AC 24VRP AC
M1 M2 M3 M4
MD ME MF
MA MB MC
Selection
V
AM
FM
I
Jumper S5
Terminal AM/FM Signal
DIP Switch S2
RS-422/485 Termination
Resistor
Off On
Jumper S1
A1/A2/A3 Volt/Curr.
Selection
V
I
A1 A2 A3
Figure i.17 Locations of Jumpers and Switches on the Terminal Board
i.3 Electrical Installation Safety
40
YASKAWA ELECTRIC TOEP YAIP1U 03B YASKAWA AC Drive – P1000 Safety Precautions

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
