8 European Standards
YASKAWA ELECTRIC TOBP C730600 75B YASKAWA AC Drive Option PG-B3 Installation Manual 43

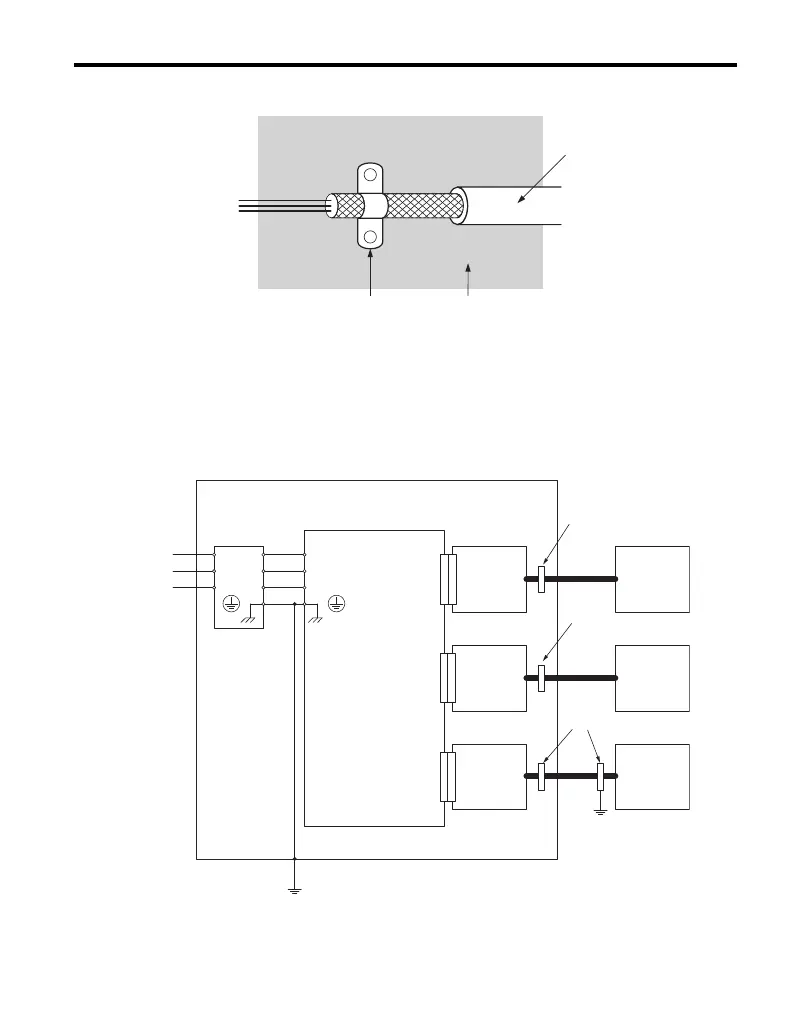

Figure 25
Figure 26 Ground Area
n Option Installation for CE Compliance: Models PG-,DI-,DO-,
AI-,AO-,SI-
Figure 26
Figure 27 Option Installation for CE Compliance
A – Braided shield cable C – Cable clamp (conductive)
B–Metal panel
CB
A
L1
L2
L3
L1
L2
L3
R
CN5-B,
CN5-C
CN5-A,
CN5-B,
CN5-C
CN5-A
S
T
PG-
Drive
EMC filter PG option
DI-,
DO-,
AI-,
AO-
I/O option
SI-
Communication
option
Encoder
I/O device
Master
Cable clamp
Enclosure panel
Three-
phase
power
supply
Cable clamp
Cable clamp
