42 YASKAWA ELECTRIC TOBP C730600 75B YASKAWA AC Drive Option PG-B3 Installation Manual
8 European Standards
8 European Standards
Figure 24

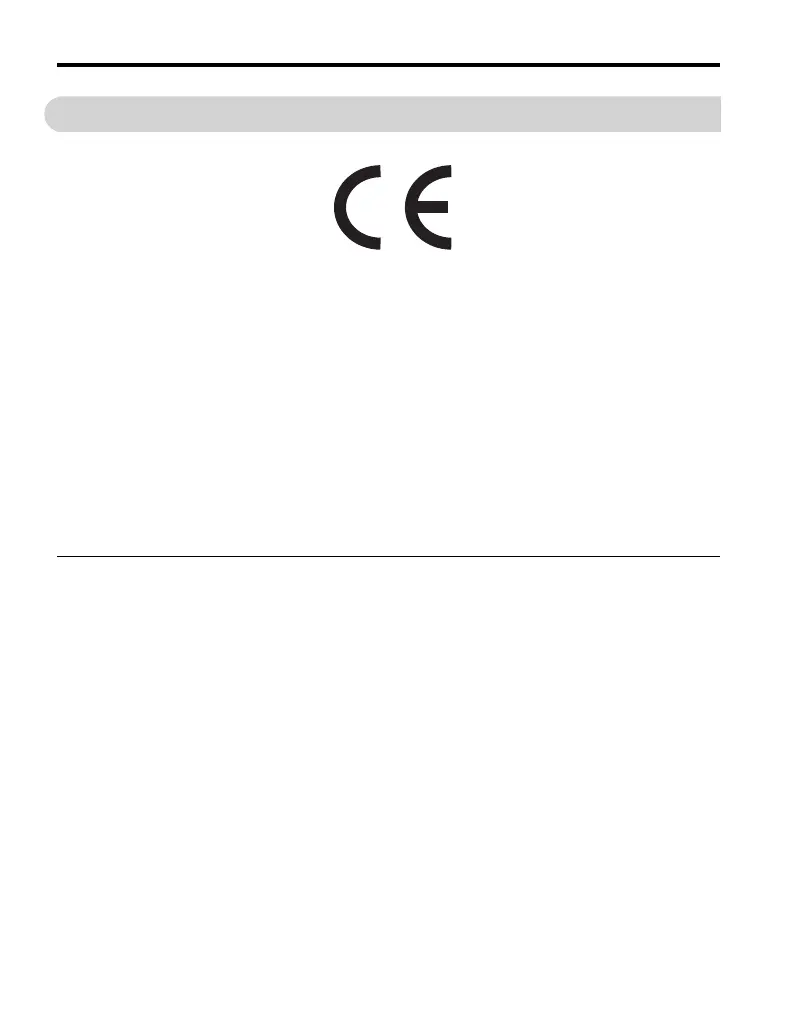

Figure 25 CE Mark
The CE mark indicates compliance with European safety and environmental regulations. It
is required for engaging in business and commerce in Europe.
European standards include the Machinery Directive for machine manufacturers, the Low
Voltage Directive for electronics manufacturers, and the EMC guidelines for controlling
noise.
This option displays the CE mark based on the EMC guidelines.
EMC Guidelines: 2004/108/EC
Drives used in combination with this option and devices used in combination with the drive
must also be CE certified and display the CE mark. When using drives displaying the CE
mark in combination with other devices, it is ultimately the responsibility of the user to
ensure compliance with CE standards. Verify that conditions meet European standards after
setting up the device.
u EMC Guidelines Compliance
This option is tested according to European standards EN 61800-3:2004+A1:2012 and
complies with EMC guidelines. The CE marking is declared based on the harmonized
standards.
n EMC Guidelines Installation Conditions
Verify the following installation conditions to ensure that other devices and machinery used
in combination with this option also comply with EMC guidelines:
1. Use dedicated shield cable for the option and external device (encoder, I/O device,
master), or run the wiring through a metal conduit.
2. Keep wiring as short as possible and ground the largest possible surface area of the
shield to the metal panel according to Figure 27.
