7.5 ZONE Outputs
7.5.3 SigmaWin+ Procedures
7-59
7
Operation with Digital I/O
Saving the ZONE Table
Saving the ZONE Table to Flash Memory in the SERVOPACK
To prevent the ZONE table from being deleted when the power supply to the SERVOPACK is
turned OFF, you must save it to flash memory in the SERVOPACK. The ZONE table that is
saved in the flash memory is automatically loaded each time the power supply is turned ON.
There are the following two ways to save the ZONE table to flash memory in the SERVOPACK.
• Save it on the ZONE Table Editing Dialog Box.
• Save it with Fn061 (Edit/Save ZONE Table) on a Digital Operator.

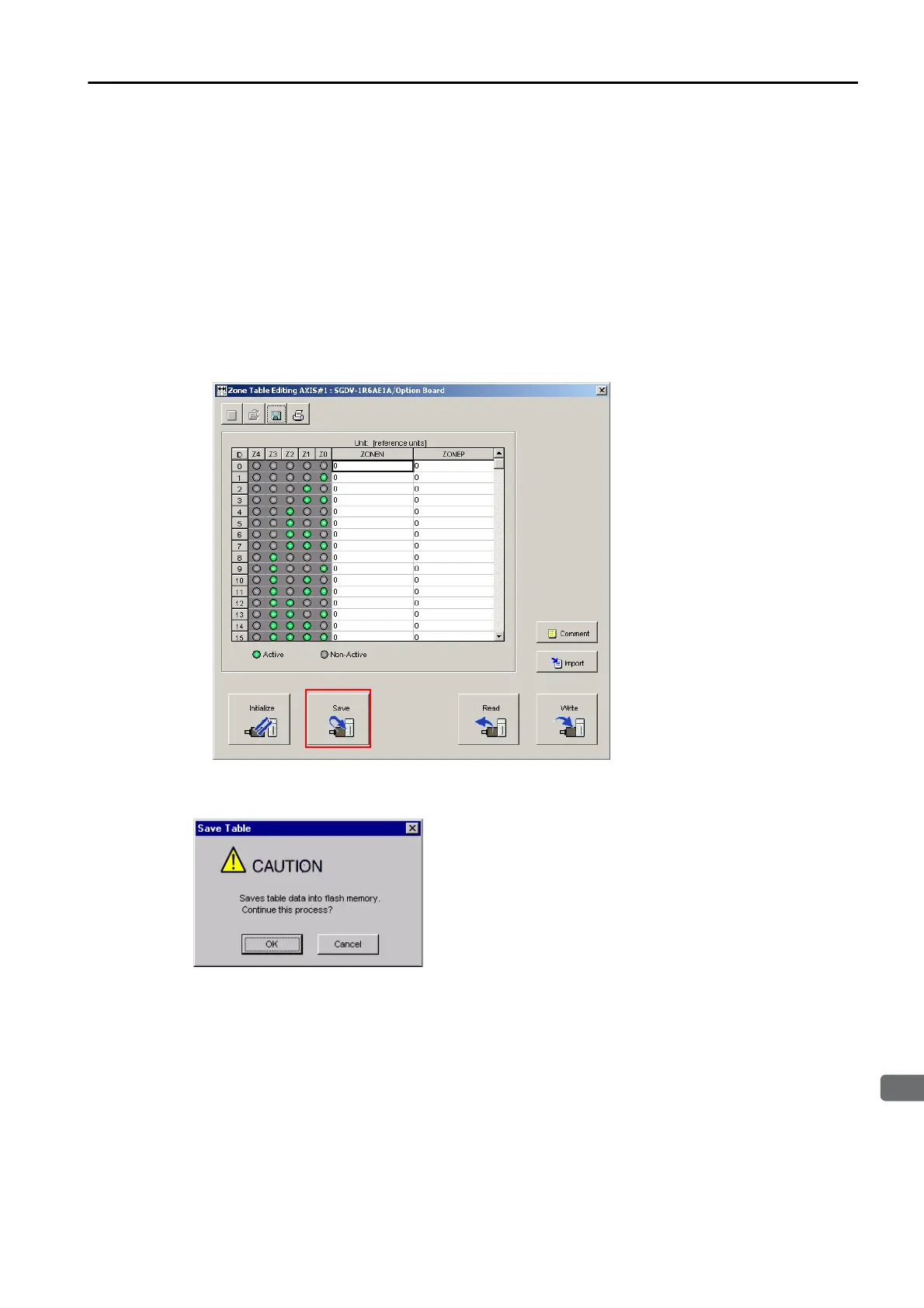

Use the following procedure to save the ZONE table from the ZONE Editing Dialog Box.
1.
Click the Save Button on the ZONE Table Editing Dialog Box.
The Save Table Dialog Box will be displayed.
2.
Click the OK Button.
This concludes the saving procedure.
