3 Receiving
3 Receiving
Please perform the following tasks after receiving the CANopen Option:
• Inspect the CANopen Option for damage.
If the CANopen Option appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate (see
Figure 2).
• If you have received the wrong model or the CANopen Option does not function properly,
contact your supplier.
◆ Contents and Packaging

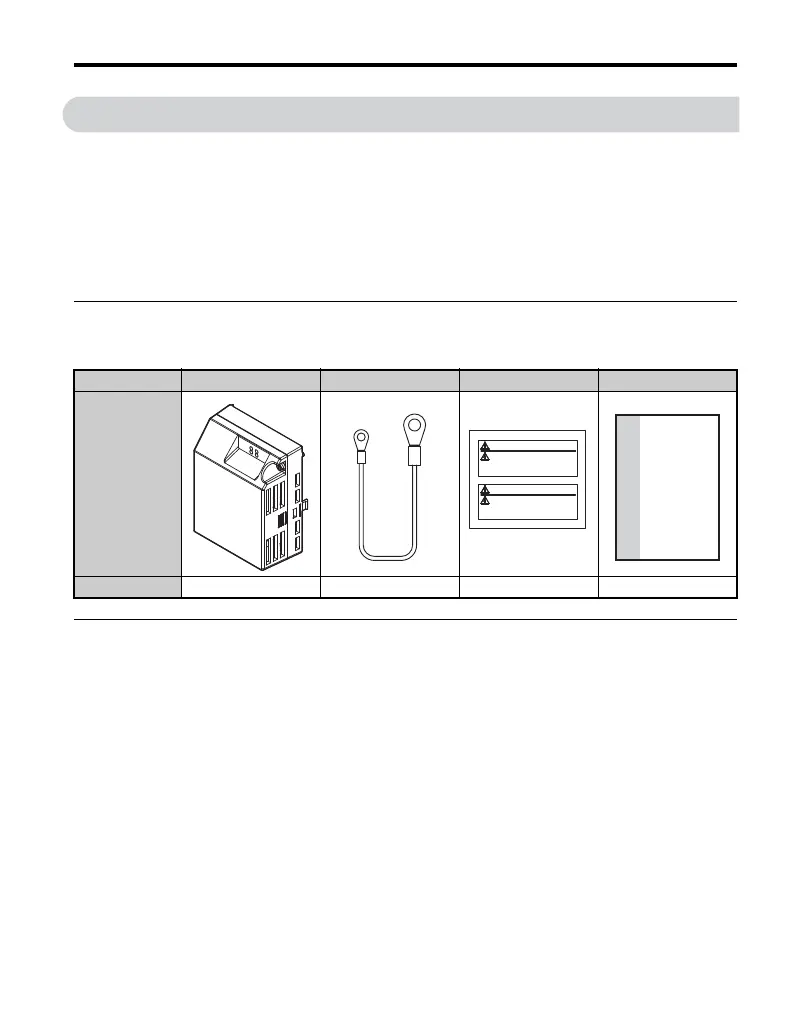

Table 2 Contents of Package
◆ Tool Requirements
Note: Tools required to prepare CANopen cables for wiring are not listed in this manual.
Description: Option Unit Ground Wires Warning Labels Installation Manual
−
Quantity: 1411
A Phillips screwdriver (M3, M3.5 to M6 <1>) metric or (#1, #2 <1>) U.S. standard size is
required to install the CANopen Option.
<1> Screw sizes vary by drive capacity. Select a screwdriver that matches the drive capacity.
