BASIC USES OF Σ-SERIES PRODUCTS
2.2.4 Installing the Servomotor cont.
26
A precision detector (encoder) is mounted on the opposite-drive end of the servomotor.
To mount a coupling, always protect the shaft from impacts that could damage the detec-
tor.

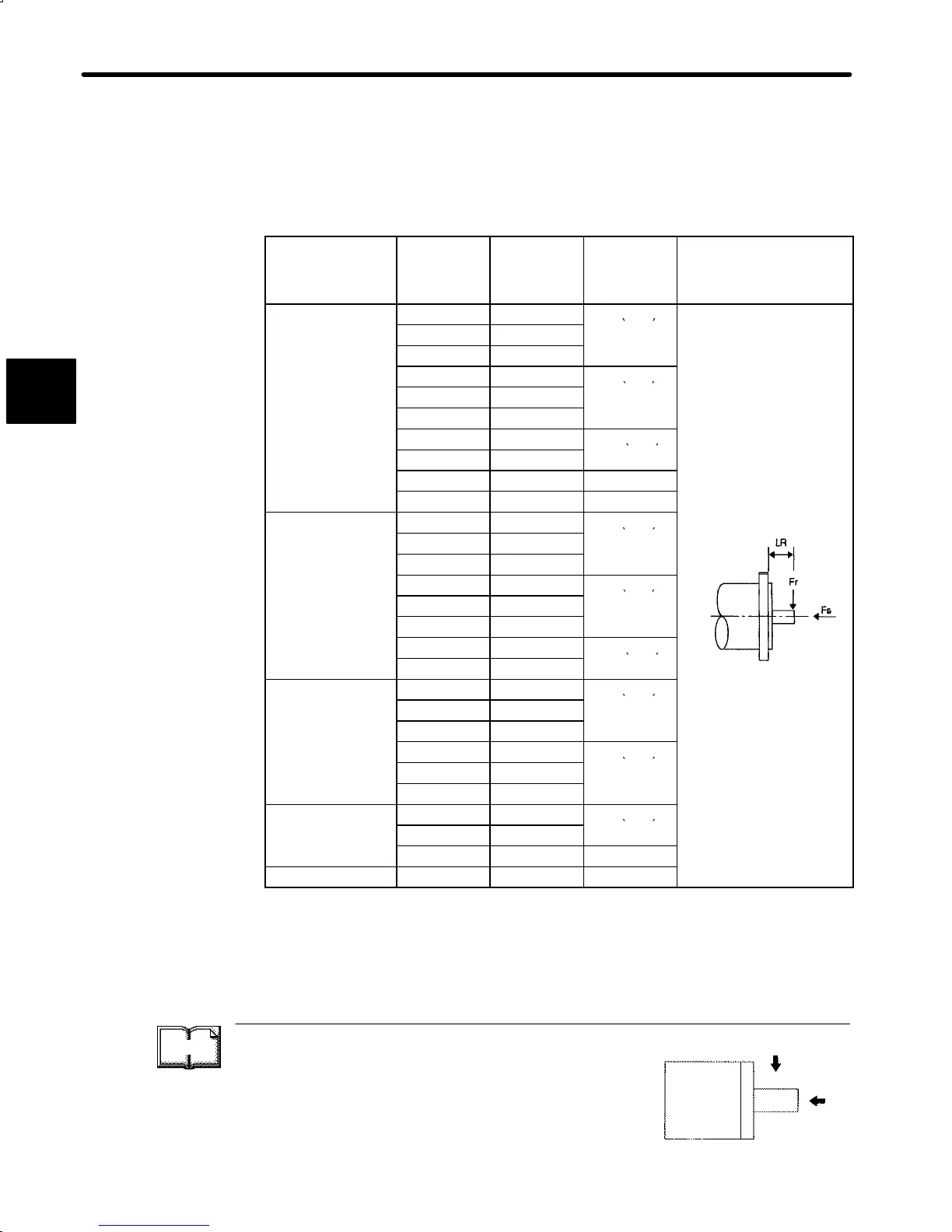

Perform a mechanical design so that
thrust load and radial load
applied to the servo-
motor shaft end falls within the range given in the following table.
Motor Type
Allowable
Radial Load
Fr [N(lb)]
Allowable
Thrust
Load Fs
[N(lb)]
LR
[mm(in.)]
Reference Drawing
SGMG-05AjA
490 (110) 98 (22)
58 (2.28)
-09AjA
490 (110) 98 (22)
()
-13AjA
686 (154) 343 (77)
-20AjA
1176 (265) 490 (110)
79 (3.11)
-30AjA
1470 (331) 490 (110)
(
)
-44AjA
1470 (331) 490 (110)
-55AjA
1764 (397) 588 (132)
113 (4.45)
-75AjA
1764 (397) 588 (132)
()
-1AAjA
1764 (397) 588 (132) 116 (4.57)
-1EAjA
4998 (1125) 2156 (485) 116 (4.57)
SGMG-03AjB
490 (110) 98 (22)
58 (2.28)
-06AjB
490 (110) 98 (22)
()
-09AjB
686 (154) 343 (77)
-12AjB
1176 (265) 490 (110)
79 (3.11)
-20AjB
1470 (331) 490 (110)
(
)
-30AjB
1470 (331) 490 (110)
-44AjB
1764 (397) 588 (132)
113 (4.45)
-60AjB
1764 (397) 588 (132)
()

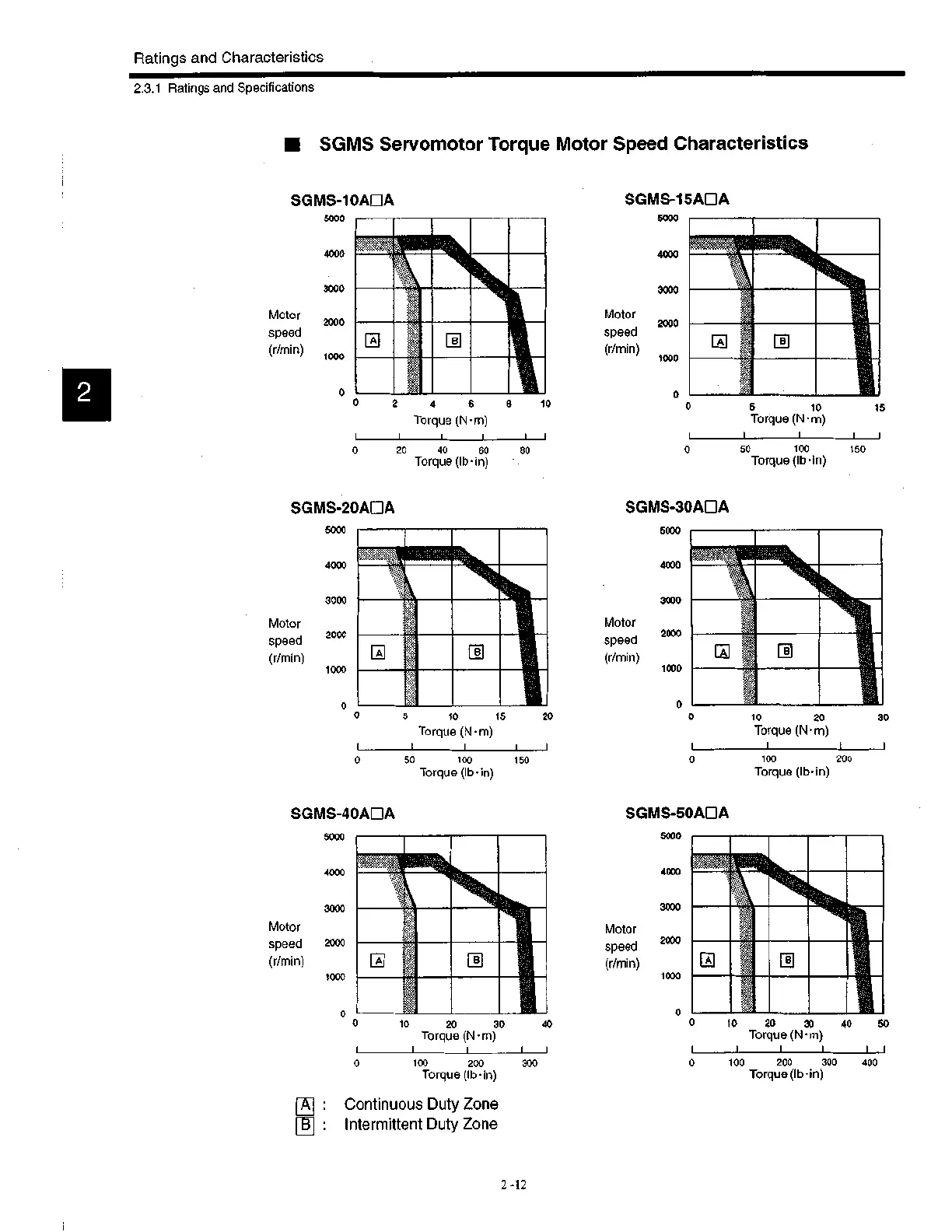

SGMS-10A 686 (154) 196 (44)
45 (1.77)
-15A 686 (154) 196 (44)
()
-20A 686 (154) 196 (44)
-30A 980 (221) 392 (88)
63 (2.48)
-40A 1176 (265) 392 (88)
()
-50A 1176 (265) 392 (88)
SGMD-22A 1176 (265) 490 (110)
55 (2.17)
-32A 1176 (265) 490 (110)
()
-40A 1176 (265) 490 (110) 65 (2.56)
SGMP-15A 490 (110) 147 (33) 35 (1.38)
Note Allowable radial loads shown above are the maximum values that could be ap-
plied to the shaft end.
TERMS
Thrust load and radial load
1. Thrust load: Shaft-end load applied parallel to the
centerline of a shaft
2. Radial load: Shaft-end load applied perpendicular to
the centerline of a shaft
Motor
Shaft end
2.
1.
