BASIC INSTRUCTIONS Varispeed E7
7

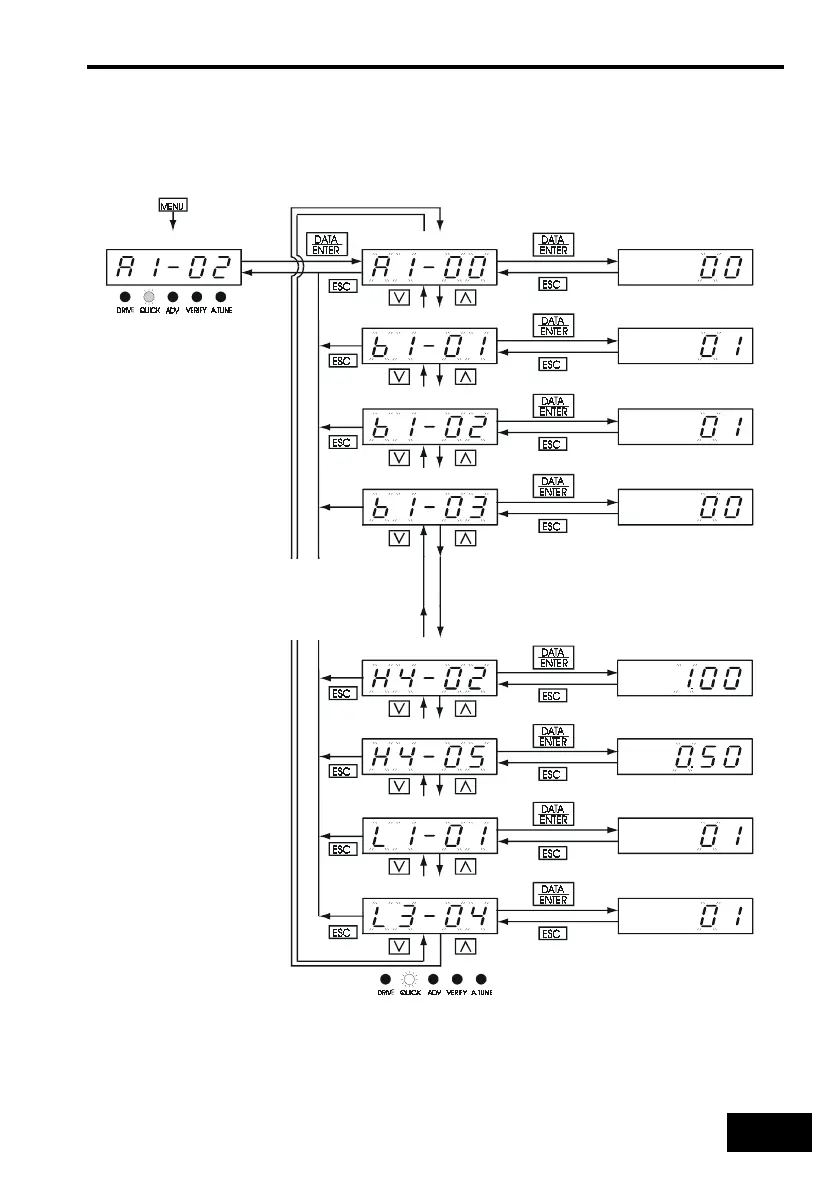

Key operations in quick programming mode are shown in the following figure.
Mode Selection Display
Monitor Display
Quick Programming Mode
Language selection
Reference source selection
RUN command source selection
Stopping method selection
AO FM1 output gain
AO AM2 output gain
Motor protection selection
Deceleration stall selection
Setting Display
d1-01: Frequency reference 1
E1-01: Input voltage setting
d1-02: Frequency reference 2
d1-03: Frequency reference 3
d1-04: Frequency reference 4
d1-17: Jog frequency reference
E1-03: V/f pattern selection
E1-04: Max. output frequency
E1-05: Max. voltage
E1-06: Base frequency
E1-09: Min. output frequency
E1-13: Base voltage
E2-01: Motor rated current
C1-01: Acceleration time 1
C1-02: Deceleration time 1
C6-01: Heavy/Normal duty Selection
C6-02: Carrier frequency selection
To Next Page
