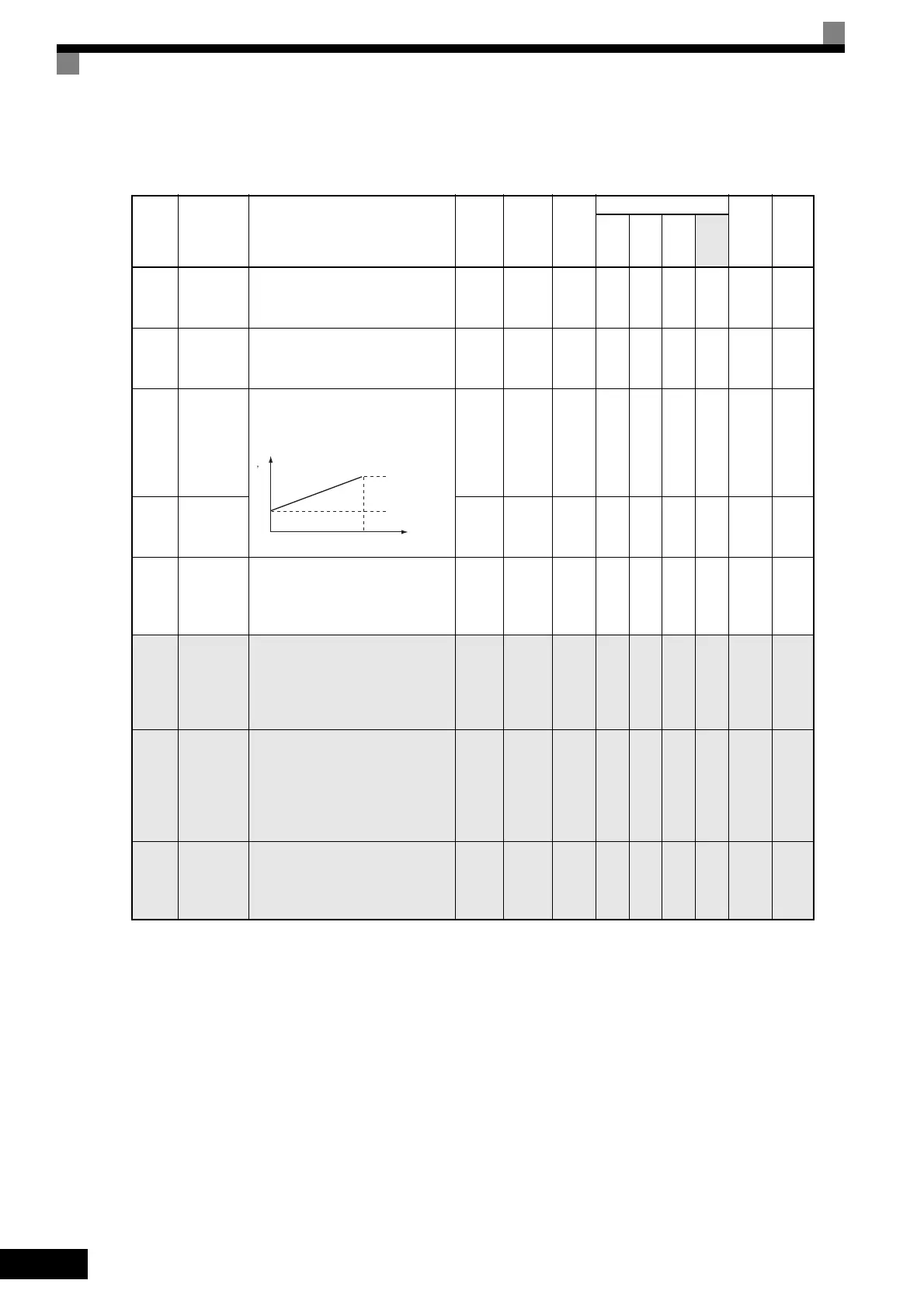

5-24
Speed Control (ASR): C5
User constants for speed control are shown in the following table.
* 1. When using V/f with PG control, 0.00 to 300.00. The flux vector setting ranges are given.
* 2. When the control method changes, the factory setting is changed. The flux vector control factory settings are given. Refer to Factory Settings that
Change with the Control Method (A1-02).
* 3. When C6-01 = 1, the upper limit is 400.0.
Con-
stant
Num-
ber
Name Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Control Methods
MEMO
BUS
Regis-
ter
Page
V/f
V/f
with
PG
Open
Loop
Vec-
tor
Flux
Vec-
tor
C5-01
ASR pro-
portional
(P) gain 1
Sets the proportional gain of the
speed loop (ASR.)
1.00 to
300.00
*1
20.00
*2
Yes No A No A 21BH
4-19
6-135
C5-02
ASR inte-
gral (I)
time 1
Sets the integral time of the speed
loop (ASR) in 1-second units.
0.000
to
10.000
0.500
s
*2
Yes No A No A 21CH
4-19
6-135
C5-03
ASR pro-
portional
(P) gain 2
Usually setting is not necessary.
Set to change the rotational speed
gain.
1.00 to
300.00
*1
20.00
*2
Yes No A No A 21DH
4-19
6-136
C5-04
ASR inte-
gral (I)
time 2
0.000
to
10.000
0.500
s
*2
Yes No A No A 21EH
4-19
6-136
C5-05 ASR limit
Sets the upper limit for the com-
pensation frequency for the speed
control loop (ASR) to a percentage
of the maximum output frequency.
0.0 to
20.0
5.0% No No A No No 21FH 6-136
C5-06
ASR pri-
mary
delay time
Sets the filter time constant for out-
putting torque references from the
speed control loop (ASR). It is set
in 1-second units.
Usually setting is not necessary.
0.000
to
0.500
0.004
s
No No No No A 220H
4-19
6-136
C5-07
ASR
switching
frequency
Sets the frequency for switching
between Proportion Gain 1, 2 and
Integral Time 1, 2 in Hz units.
The multi-function input “ASR
switching proportional gain” has
the priority.
0.0 to
300.0
*3
0.0 Hz No No No No A 221H
4-19
6-136
C5-08
ASR inte-
gral (I)
limit
Sets the upper limit for the integral
(I) amount for the speed control
loop (ASR) to a percentage of the
rated load.
0 to
400
400% No No No No A 222H 6-136
P I
0 E1-04 Motor speed (Hz)
P=C5-01
I=C5-02
P=C5-03
I=C5-04
