îš„Storing Inverter set values in the Digital Operator (READ)
To store Inverter set values in the Digital Operator, make the settings using the following method. Set 03-02
(Read permitted selection) to 1 (read permitted).
An error may occur while saving to memory. If an error is displayed, press any key to cancel the error display
and return to the o3-01 display. Error displays and their meanings are shown below. (Refer to Chapter 7
Errors when Using Digital Operator Copy Function.)
Select READ Permitted
Prevent overwriting the data stored in EEPROM in the Digital Operator by mistake. With o3-02 set to 0, if you
set o3-01 to 1, and perform the write operation, PrE will be displayed on the Digital Operator, and the write
operation will be stopped.

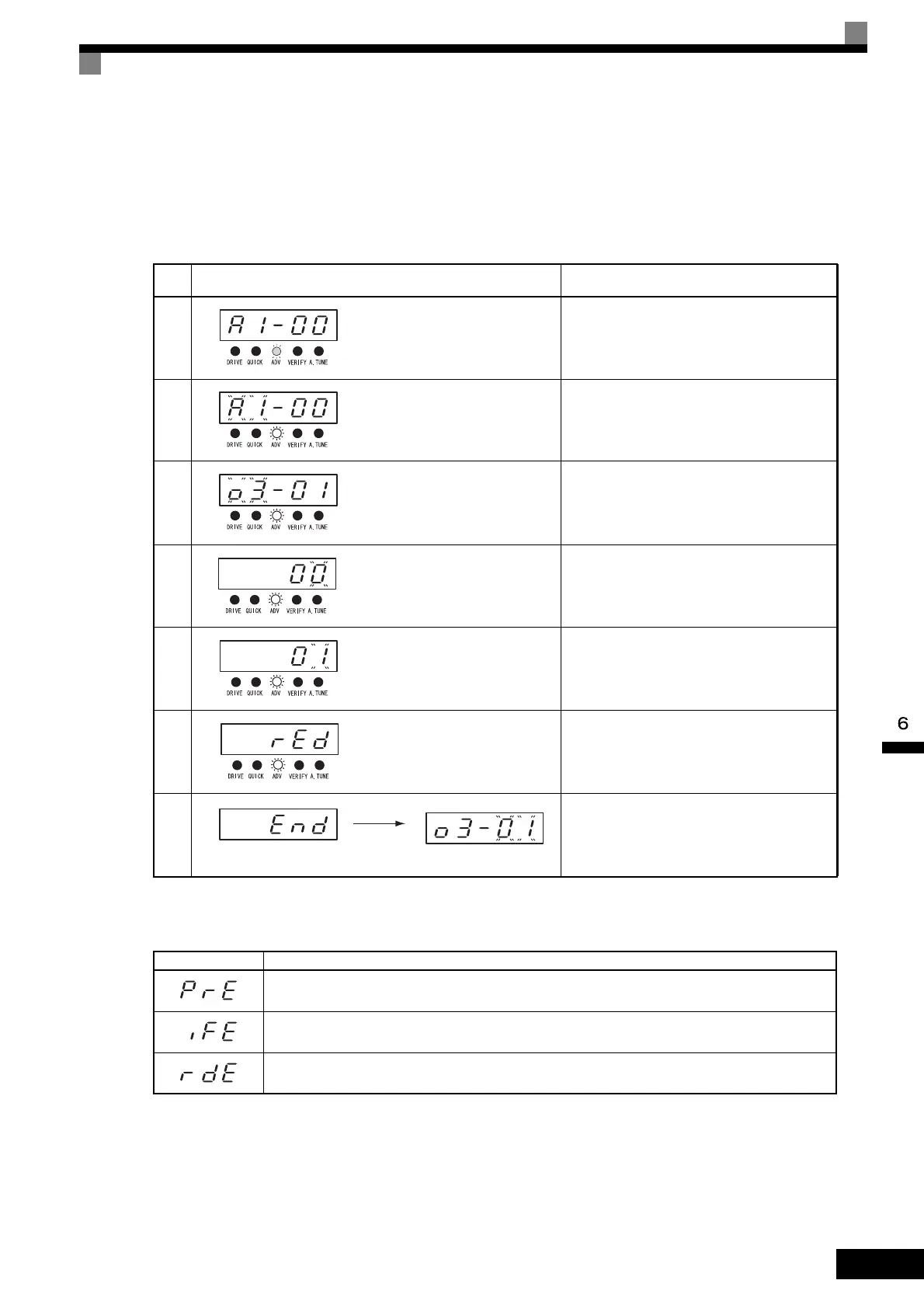

Table 6.1 READ Function Procedure
Step
No.
Digital Operator Display Explanation
1
Press the Menu Key, and select advanced pro-
gramming mode.
2
Press the DATA/ENTER Key, and select the
constants monitor display.
3
Display o3-01 (Copy Function Selection) using
the Increment Key and Decrement Key.
4
Press the DATA/ENTER Key, and select the
constants setting display.
5
Change the set value to 1 using the Increment
Key.
6
Set the changed data using the DATA/ENTER
Key. The READ function will start.
7
If the READ function ends normally, End is
displayed on the Digital Operator. Constant o3-
01 is automatically reset to 0, and then the dis-
play returns to o3-01.
Error Display Meaning
You are attempting to set o3-01 to 1 while o3-02 is set to 0.
Read data length mismatch or read data error.
Tried to write constants to EEPROM on the Digital Operator, but unable to perform write operation.
