Digital Operator Functions
6-153
Comparing Inverter Constants and Digital Operator Constant Set Values (VERIFY)
To compare Inverter constants and Digital Operator constant set values, make the settings using the following
method.
An error may occur during the comparison. If an error is displayed, press any key to cancel the error display
and return to the o3-01 display. Error displays and their meanings are shown below. (Refer to Chapter 7
Errors when Using Digital Operator Copy Function.)
Application Precautions
When using the copy function, check that the following settings are the same between the Inverter and the
Digital Operator.

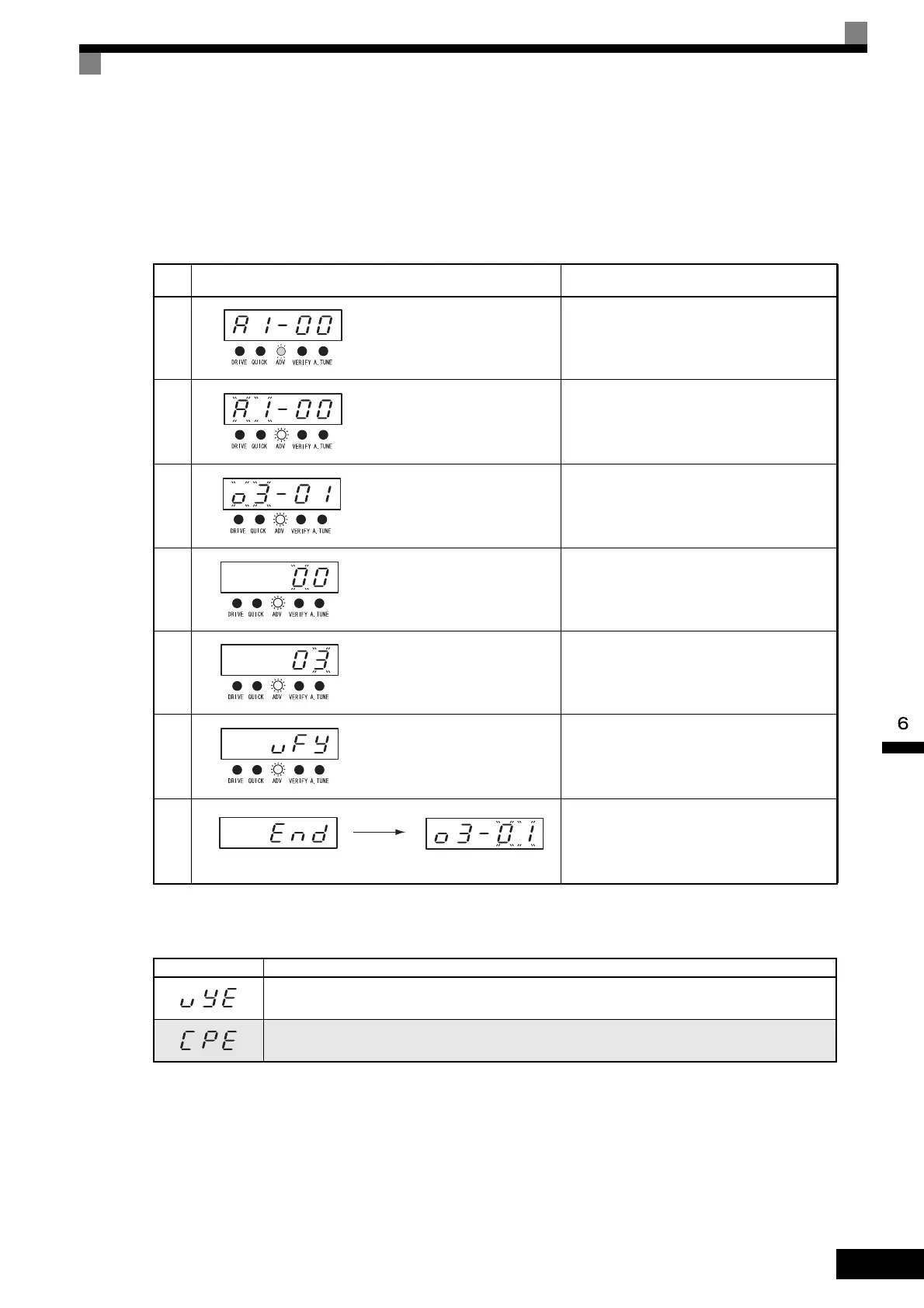

Table 6.3 VERIFY Function Procedure
Step
No.
Digital Operator Display Explanation
1
Press the MENU Key. and select advanced pro-
gramming mode.
2
Press the DATA/ENTER Key, and select the
constants monitor display.
3
Display o3-01 (Copy Function Selection) using
the Increment Key and Decrement Key.
4
Press the DATA/ENTER Key, and select the
function setting display.
5
Change the set value to 3 using the Increment
Key.
6
Set the changed data using the DATA/ENTER
Key. The VERIFY function will start.
7
If the VERIFY function ends normally, End is
displayed on the Digital Operator. Constant o3-
01 is automatically reset to 0, and then the dis-
play returns to o3-01.
Error Display Meaning
Verify error (Settings in the Digital Operator and the Inverter do not match).
Inverter product code and Inverter software number are different.
•
Inverter product and type • Inverter capacity and voltage
• Software number • Control method
