Installing and Wiring Option Boards
2-41
îš„PG-D2/PG-X2
There are 5 V and 12 V PG power supplies.
Check the PG power supply specifications before connecting.
The maximum response frequency is 300 kHz.
Use the following equation to computer the output frequency of the PG (f
PG
).
A separate power supply is required if the PG power supply capacity is greater than 200 mA. (If momentary
power loss must be handled, use a backup capacitor or other method.)

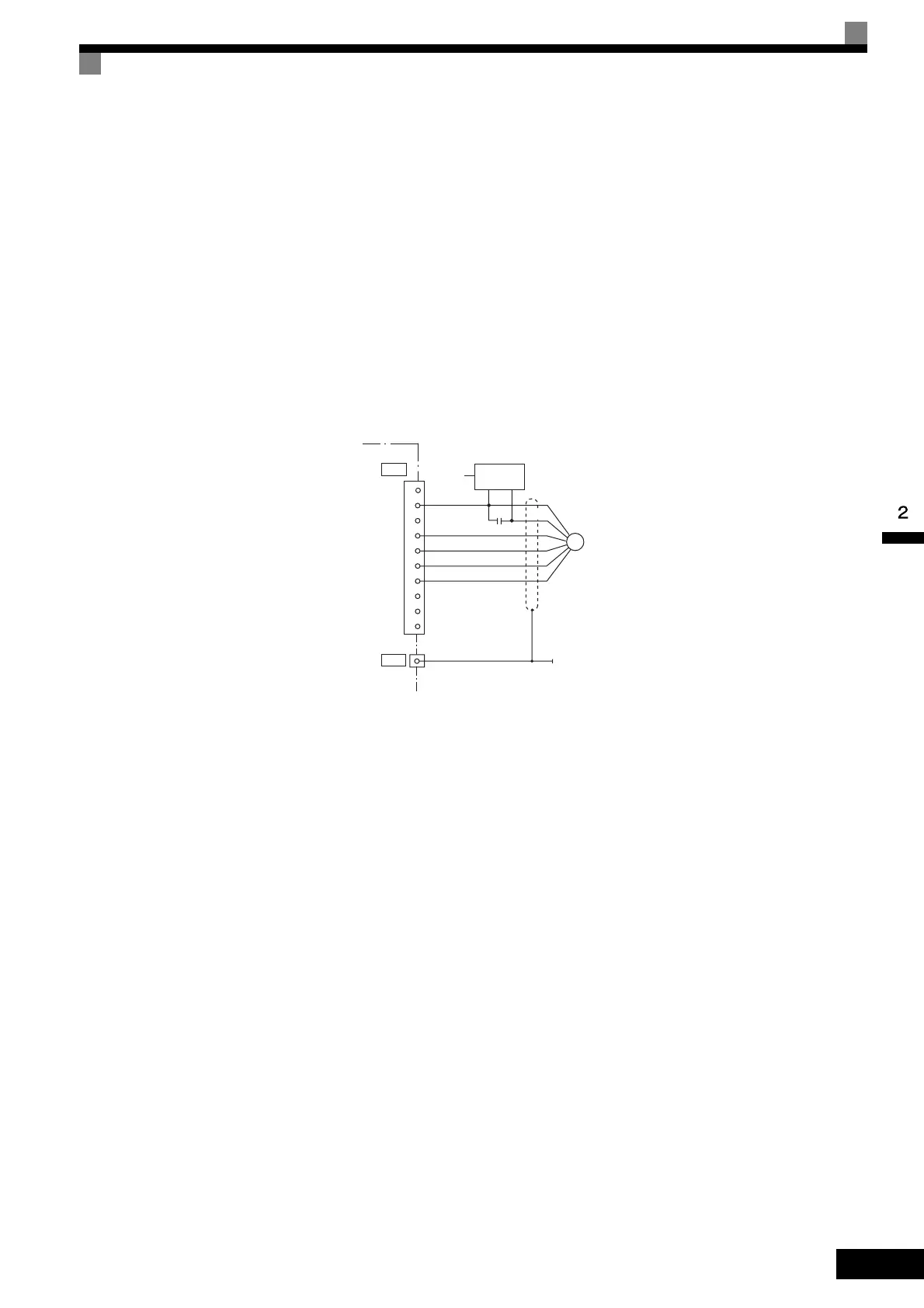

Fig 2.33 PG-X2 Connection Example (for 12 V PG power supply)
f
PG
(Hz) =
Motor speed at maximum frequency output (min )
60
--------------------------------------------------------------------------------------------------------------------------- P G r ating (p/rev)×
-1
TA1
IP12
IG
IP5
A (+)
A (-)
B (+)
B (-)
Z (+)
Z (-)
IG
TA3
PG-X2
1
2
3
4
5
6
7
8
9
10
AC
PG
+
+
+
-
-
0 V
Capacitor for
momentary
power loss
0V +12V
PG power
supply
+12 V
