Yealink SIP-T29G User Manual

Basic Call Features
137

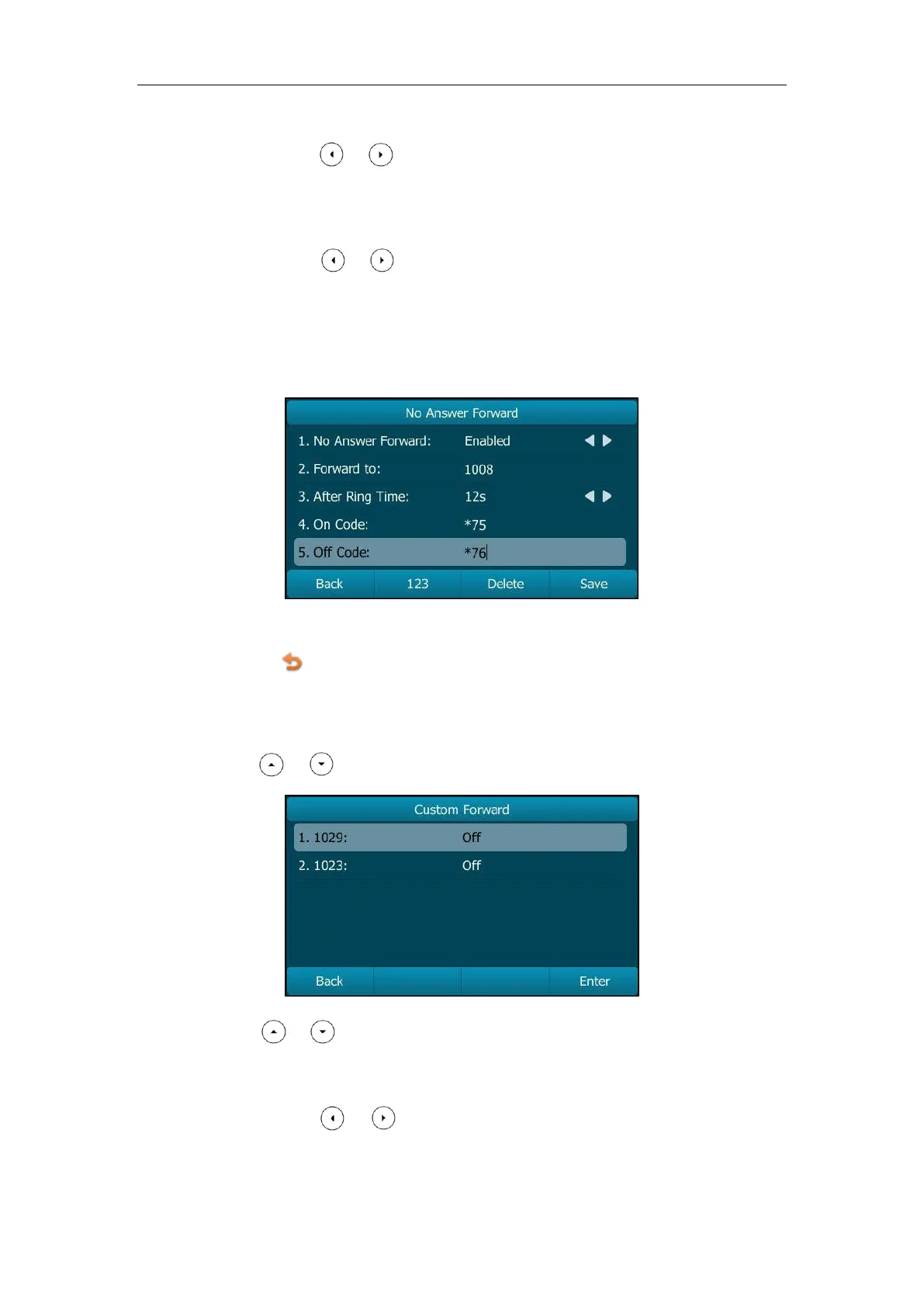

c) If you select No Answer Forward:
1) Press or , or the Switch soft key to select Enabled from the No Answer
Forward field.
2) Enter the destination number you want to forward unanswered incoming calls to
in the Forward to field.
3) Press or , or the Switch soft key to select the ring time to wait before
forwarding from the After Ring Time field.
The default ring time is 12 seconds.
4) (Optional.) Enter the no answer forward on code or off code respectively in the
On Code or Off Code field.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
The icon on the status bar indicates that the call forward is enabled.
To enable call forward in custom mode:
1. Press Menu->Features->Call Forward.
2. Press or to select the desired account, and then press the Enter soft key.
3. Press or to select the desired forwarding type, and then press the Enter soft key.
4. Depending on your selection:
a) If you select Always Forward, you can enable it for a specific account.
1) Press or , or the Switch soft key to select Enabled from the Always
Forward field.
2) Enter the destination number you want to forward all incoming calls to in the

Yealink SIP-T29G Specifications

General

Speakerphone	Yes
Voice codecs	G.711, G.722, G.723, G.726, G.729ab, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Lines quantity	10 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Power over Ethernet (PoE)	-
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800
Volume control	Buttons

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
